Gigabyte GA-G31M-S2L User Manual

GA-G31M-S2L/S2C Motherboard - 74 -

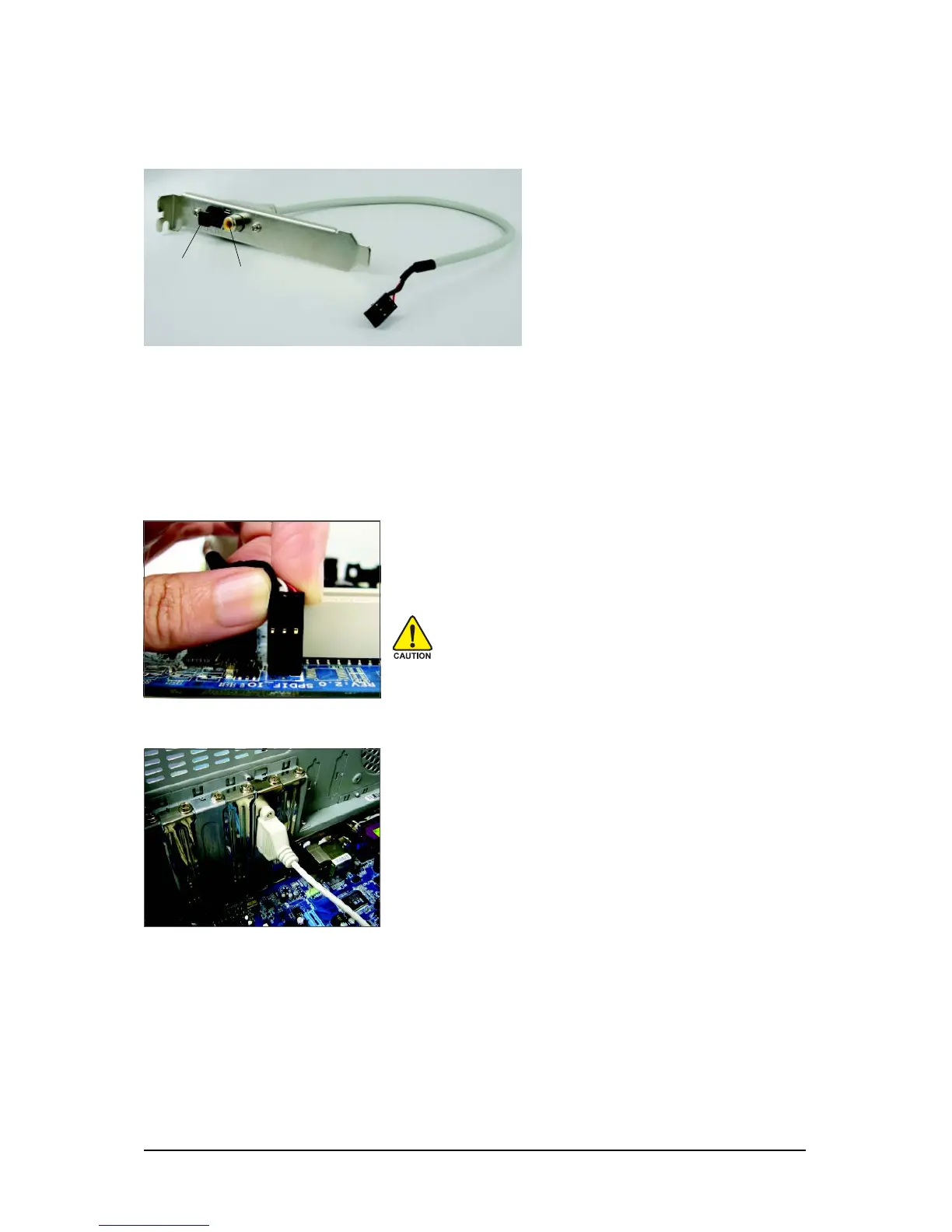

5-1-2 Installing the S/PDIFOut Cable (Optional)
The S/PDIF out cable provides S/PDIF out functionalities.
Step 1:
First, attach the connector at the end of the cable to the SPDIF_O
header on your motherboard.
Step 2:
Secure the metal bracket to the chassis back panel with a
screw.
S/PDIF out:
The S/PDIF out jacks can transmit audio signals to an external decoder for decoding to get the best
audio quality. Install the S/PDIF in and out cable first if you want to output S/PDIF digital audio signals
to an external decoder.
A. Installing the S/PDIF Out Cable:
Coaxial
S/PDIFOut
Optical
S/PDIF Out
Pin 1 (the red wire) of the S/PDIF out cable must align
with pin 1 of the SPDIF_O header. Incorrect connection
may render the device unusable or even result in
damage to the device.

Gigabyte GA-G31M-S2L Specifications

General

Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Power fan connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	1
Special features	-@BIOS -Q-Flash -EasyTune -Xpress Install -Xpress Recovery2 -Virtual Dual BIOS
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC662
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows Vista/XP/2000
Graphics card	-

Weight and Dimensions

Depth	193 mm
Width	243 mm
