Gigabyte GA-H81M-S2PH User Manual

- 4 -
KB_MS
CPU_FAN SYS_FAN
LGA1150
ATX
GA-H81M-S2PH
F_AUDIO
SPDIF_O F_USB2TPM_HS
AUDIO
B_BIOS
DDR3_1 DDR3_2
BAT
ATX_12V_2X4
Intel
®
H81
PCIe to PCI
Bridge
R_USB30
HDMI
CODEC
CLR_CMOS
M_BIOS
VGA
LPT
USB_LAN
PCIEX16
PCIEX1
PCI1
PCI2
iTE
®
Super I/O
Realtek
®
GbE LAN
F_USB1
COMB
F_PANEL
SATA3
1 0
SATA2
3 2
COMA

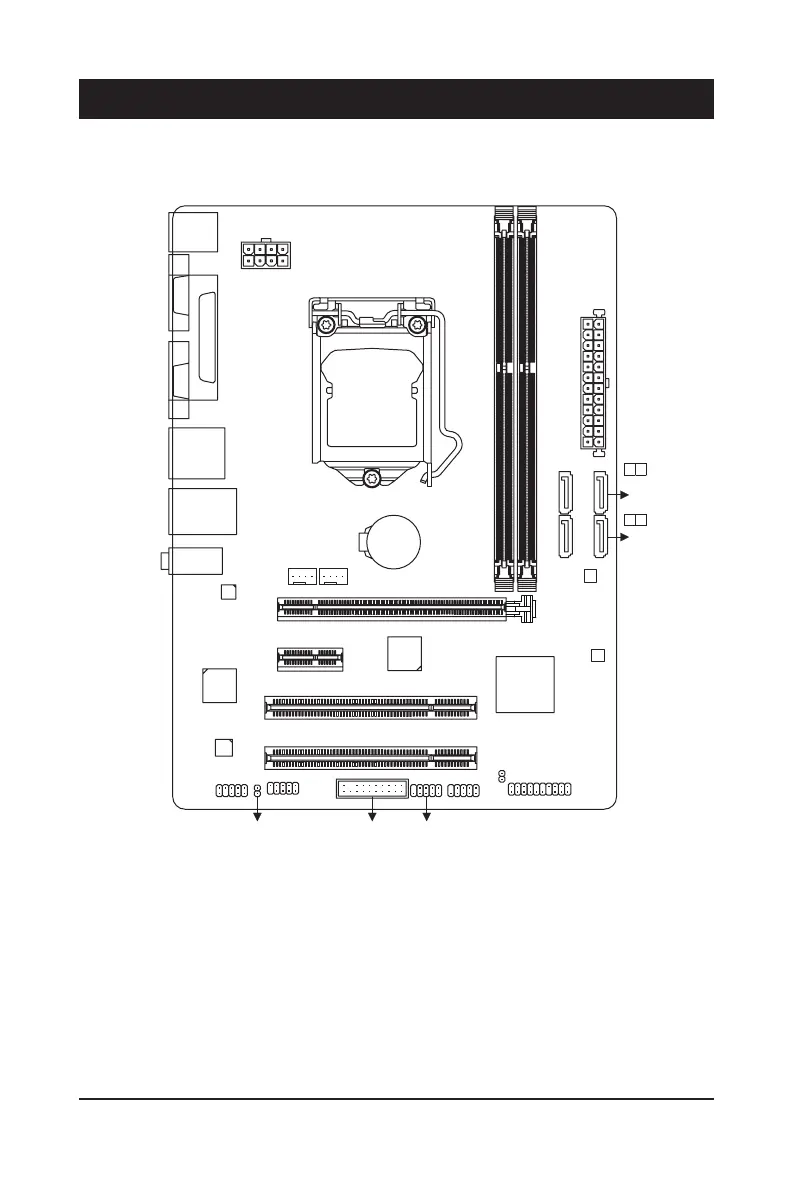

1-1 Motherboard Layout
Chapter 1 Product Introduction

Gigabyte GA-H81M-S2PH Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-4xxx, i5-4xxx, i7-4xxx
Number of SATA connectors	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
PC health monitoring	CPU, FAN, Power supply, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	180 mm
Width	244 mm
