Appendix- 69 -
English
S-Video Out
AV Out

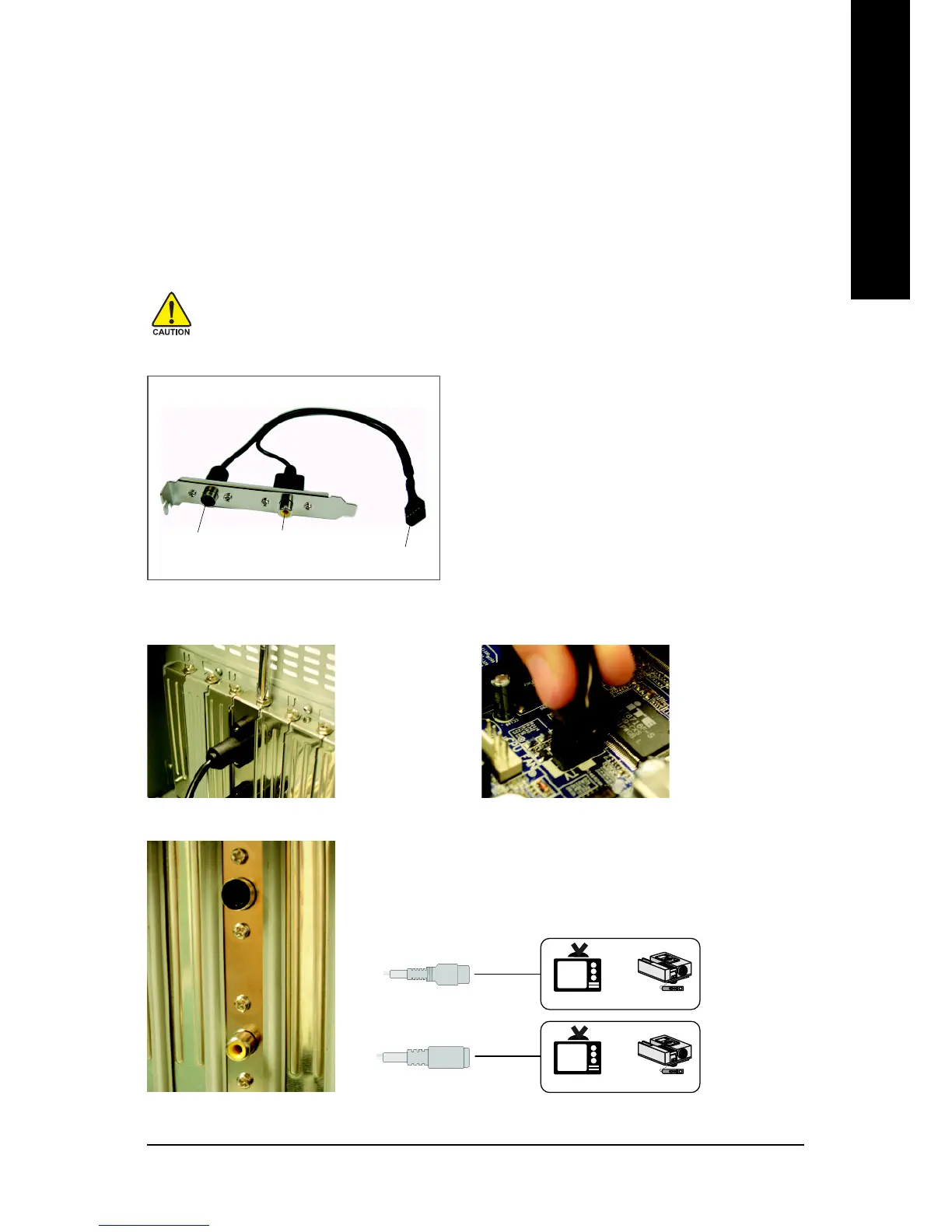

4-1-5 Installation of TV Out Cable (Optional Device)
TV Out Cable
A TV output connector is available on the motherboard (refer to page 26). Via the use of the TV Out
cable, you can connect a TV to your computer for output of analog video signals.
Step 1:
Secure the TV Out
cable to the chassis
back panel with a
screw.
Follow the steps below to install theTV Out Cable:
Step 3:
Connect the S-Video or AV cable from your video system to the S-Video
Out or AV Out jack on the bracket to output the analog video signals
(Note)
.
Step 2:
Connect TV Out
cable connector to
the motherboard TV
output connector.
Hardware Installation
AV Out
S-Video Out
OR
OR
Projector
Projector
NTSC / PAL TV
(Note): The S-Video Out and AV Out cannot be used at the same time.
NTSC / PAL TV
• Turn off your system and the power switch on the power supply before installing or
removing the TV Out cable to prevent damage to the TV Out cable.
• Insert the TV Out cable securely into the corresponding connector when installing.
Connects to the TV
output connector
To Next Page
