Gigabyte GA-P35-DS3R User Manual

- 8 -

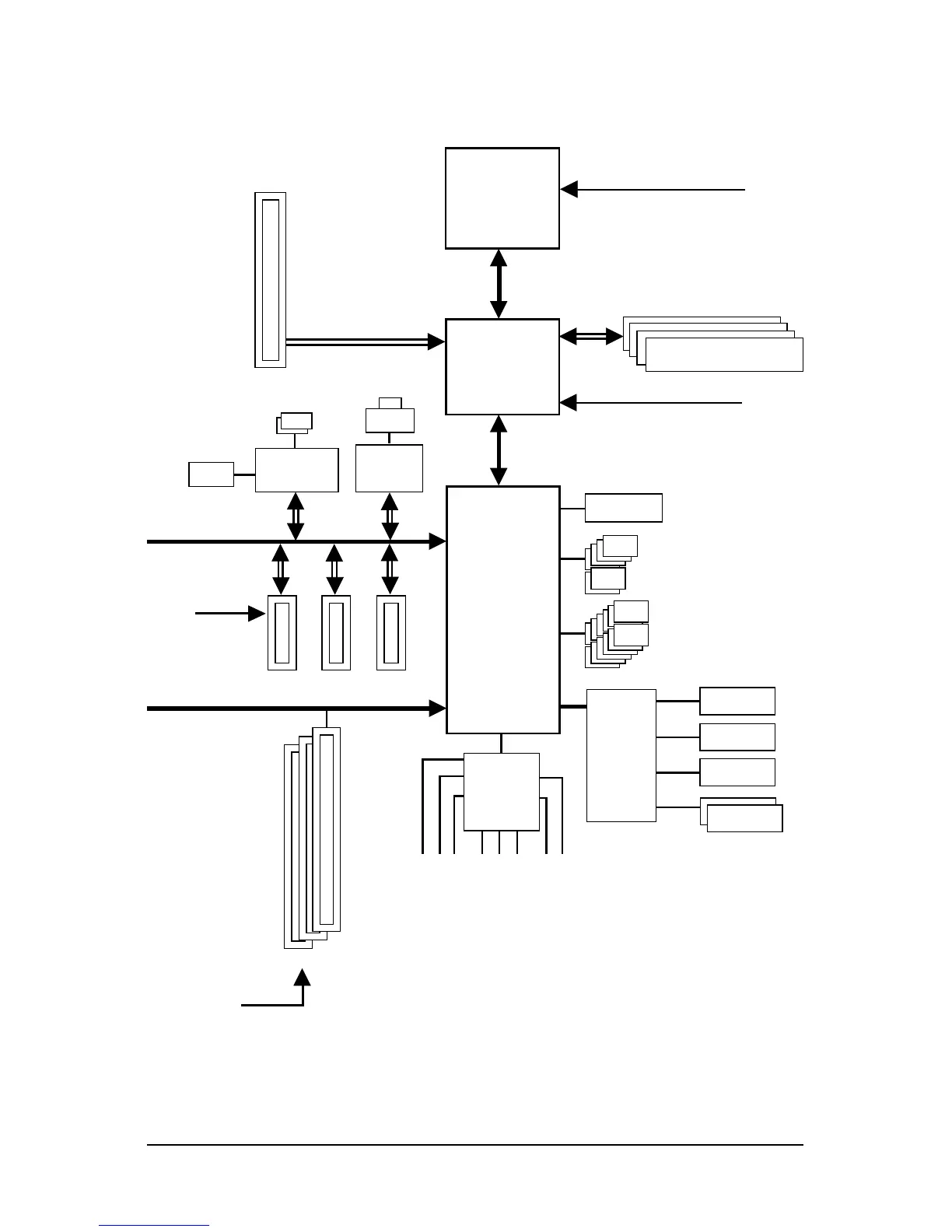

Block Diagram
LGA775
Processor
Host
Interface
Intel
®
P35
MCH CLK
(333/266/200 MHz)
DDR2 1066/800/667 MHz
Intel
®
ICH9R
BIOS
3 PCI
PCI Bus
Dual Channel Memory
6 SATA 3Gb/s
PCI CLK
(33 MHz)
PCIe CLK
(100 MHz)
PCI Express x16
12 USB Ports
IT8718
Floppy
PS/2 KB/Mouse
LPT Port
CPU CLK+/-
(333/266/200 MHz)
Center/Subwoofer Speaker Out
Line-Out
MIC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
COM Port
3 PCI Express x1
PCI Express Bus
PCIe CLK
(100 MHz)
LAN
RJ45
x1
x1
x1
ATA-133/100/66/33
IDE Channel
RTL
8111B
2 SATA 3Gb/s
x1
x1
GIGABYTE
SATA2
