Gigabyte GA-P35T-DQ6 User Manual

GA-P35T-DQ6 Motherboard - 24 -
English

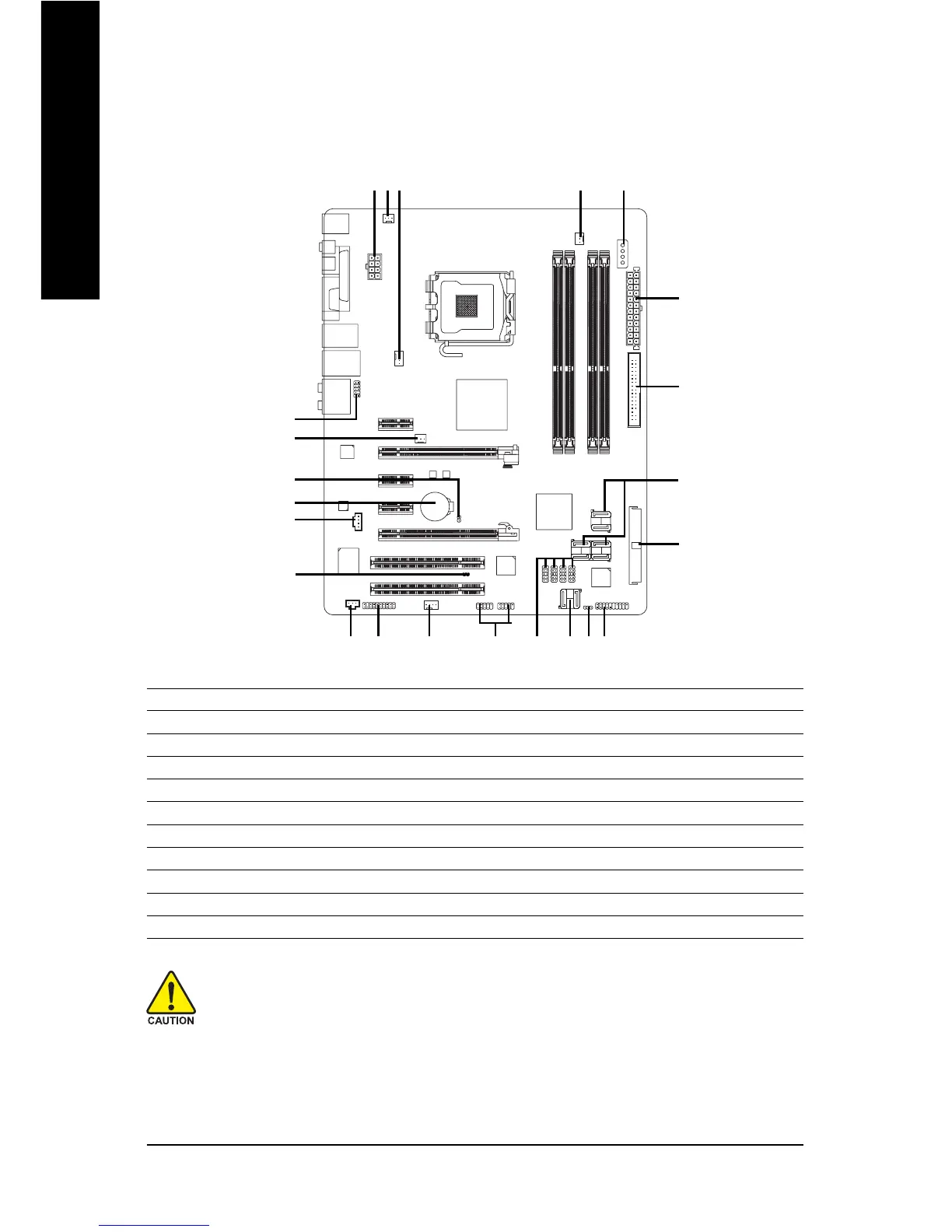

1-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.
1) ATX_12V_2X
2) ATX (Power Connector)
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) NB_FAN
7) PCIE_12V
8) FDD
9) IDE
10) SATAII0/1/2/3/4/5
11) GSATAII0/GSATAII1
12) PWR_LED
13) F_PANEL
14) F_AUDIO
15) CD_IN
16) SPDIF_IN
17) F_USB1/F_USB2/F_USB3/F_USB4
18) F1_1394/F2_1394
19) TPM
20) CLR_CMOS
21) CI
22) BATTERY
2
1 3
18
8
10
9
14
19
15
11
5 7
1317
6
4
21
4
12
22
16
20
