Gigabyte Z690 UD AX DDR4 User Manual

- 15 -

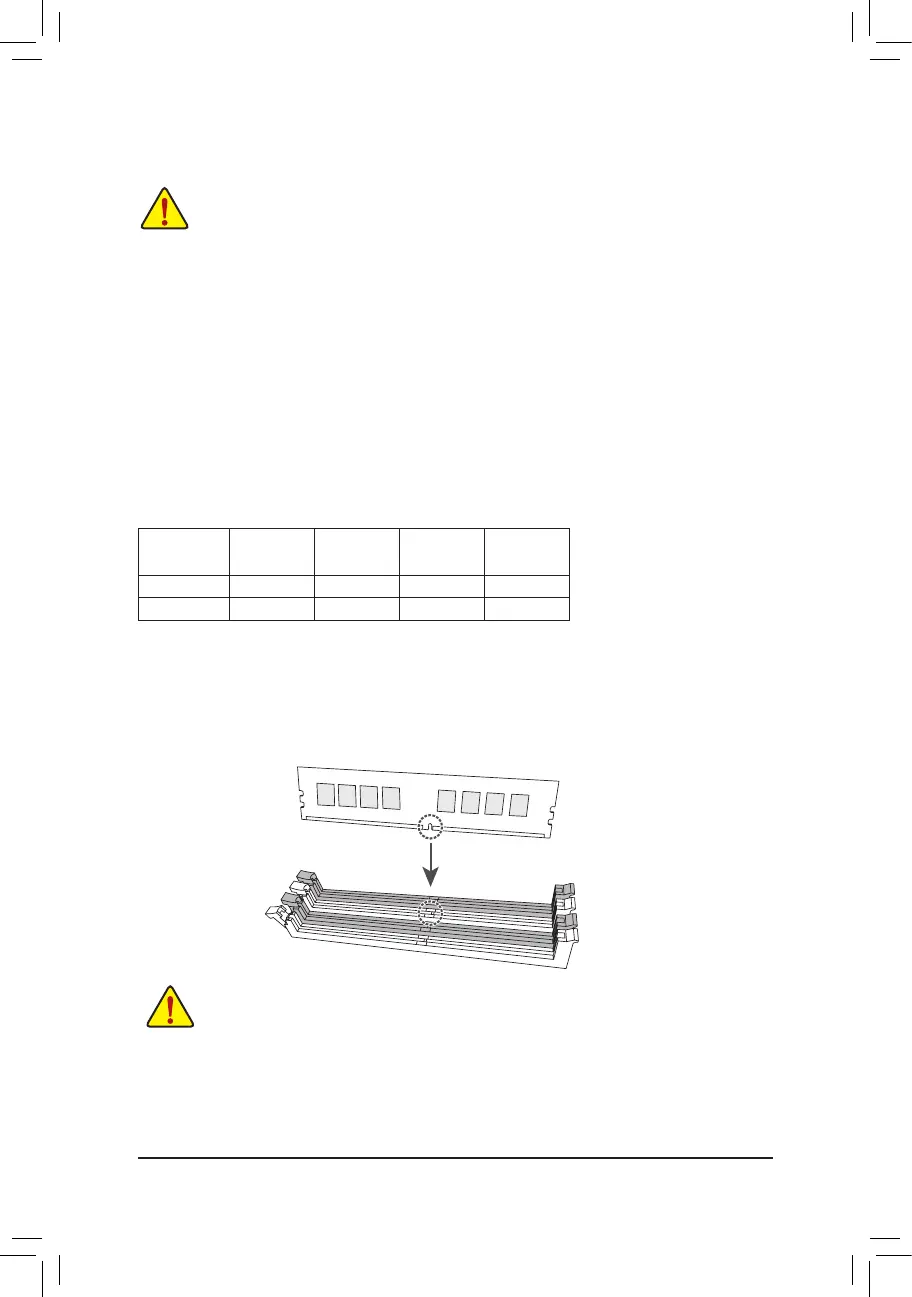

2-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
• Make sure that the motherboard supports the memory. It is recommended that memory of the same
capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported
memory speeds and memory modules.)
• Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.
DualChannelMemoryConguration
This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory
is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual
Channel memory mode will double the original memory bandwidth.
The four memory sockets are divided into two channels and each channel has two memory sockets as following:
Channel A: jklDDR5_A1/DDR5_A2, mnDDR4_A1/DDR4_A2
Channel B: jklDDR5_B1/DDR5_B2, mnDDR4_B1/DDR4_B2
* Recommanded Dual Channel Memory Conguration:
DDR5_A1jkl
DDR4_A1mn
DDR5_A2jkl
DDR4_A2mn
DDR5_B1jkl
DDR4_B1mn
DDR5_B2jkl
DDR4_B2mn
2 Modules - - DS/SS - - DS/SS
4 Modules DS/SS DS/SS DS/SS DS/SS
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that memory of
the same capacity, brand, speed, and chips be used.
When installing a single memory module, we recommend that you install it in the
DDR5_A2jkl/DDR4_A2mn socket.
DDR5_A1jkl/DDR4_A1mn
DDR5_A2jkl/DDR4_A2mn
DDR5_B1jkl/DDR4_B1mn
DDR5_B2jkl/DDR4_B2mn
j Only for Z690 UD AC.
k Only for Z690 UD AX.
l Only for Z690 UD.
m Only for Z690 UD AX DDR4.
n Only for Z690 UD DDR4.

Gigabyte Z690 UD AX DDR4 Specifications

General

HDCP	Yes
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	-
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Desktop Management Interface (DMI) version	2.7
Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Core i5, Intel Core i7, Intel Core i9
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4000, 4800, 5200, 5400, 5600, 5800, 6000 MHz
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	NVMe, PCI Express, SATA
USB 2.0 connectors	2
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Wi-Fi	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel Z690
PC health monitoring	FAN, Temperature, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 Home x64, Windows 11 x64
Bundled software	Norton Internet Security (OEM version) RealtekGaming LAN Bandwidth Control Utility

Weight and Dimensions

Depth	244 mm
Width	305 mm
