GIRBAU HS-6023 Service Manual

SAT – Electric Maintenance 30
Cod. 522664en
Rev. 02/0316
3.5 Inverter cleaning for HS-6110, EH050 models
ATTENTION
For a better comfort and to avoid stretching the wiring, we recommend to completely disconnect and
disassemble the inverter and to carry out the intervention out of the machine.

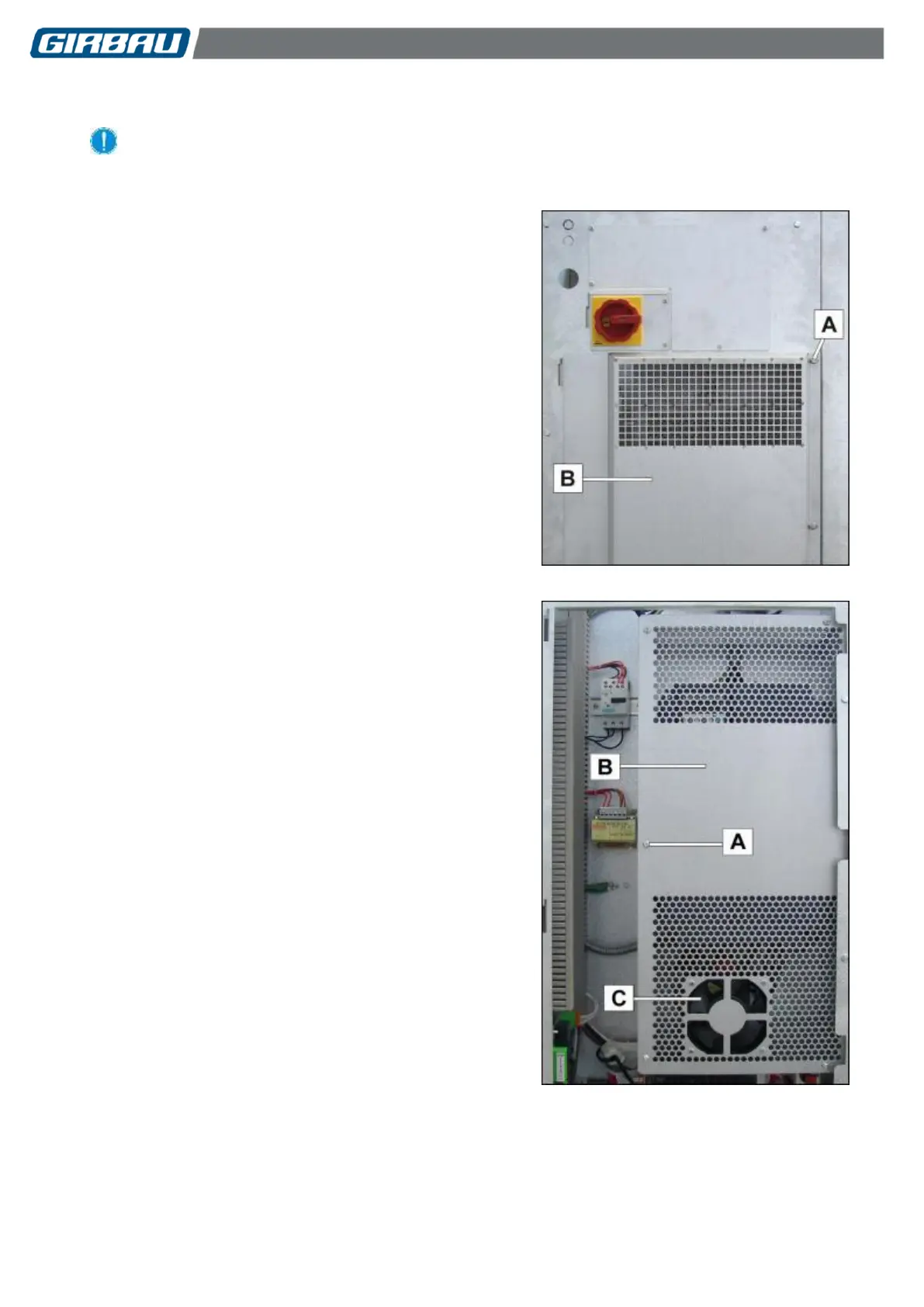

 Remove the screws A, release the fresh air ducting
cover B (figure 3.15).
Fig. 3.15
 Remove the screws A, release the cover B, and
disconnect the fan C
(Figure 3.16).
Fig. 3.16
