GIRBAU HS-6110 - Inverter Cleaning for HS-6040, HS-6057, EH090, EH130 Models

SAT – Electric Maintenance 26
Cod. 522664en
Rev. 02/0316
3.4 Inverter cleaning for HS-6040, HS-6057, EH090, EH130 models

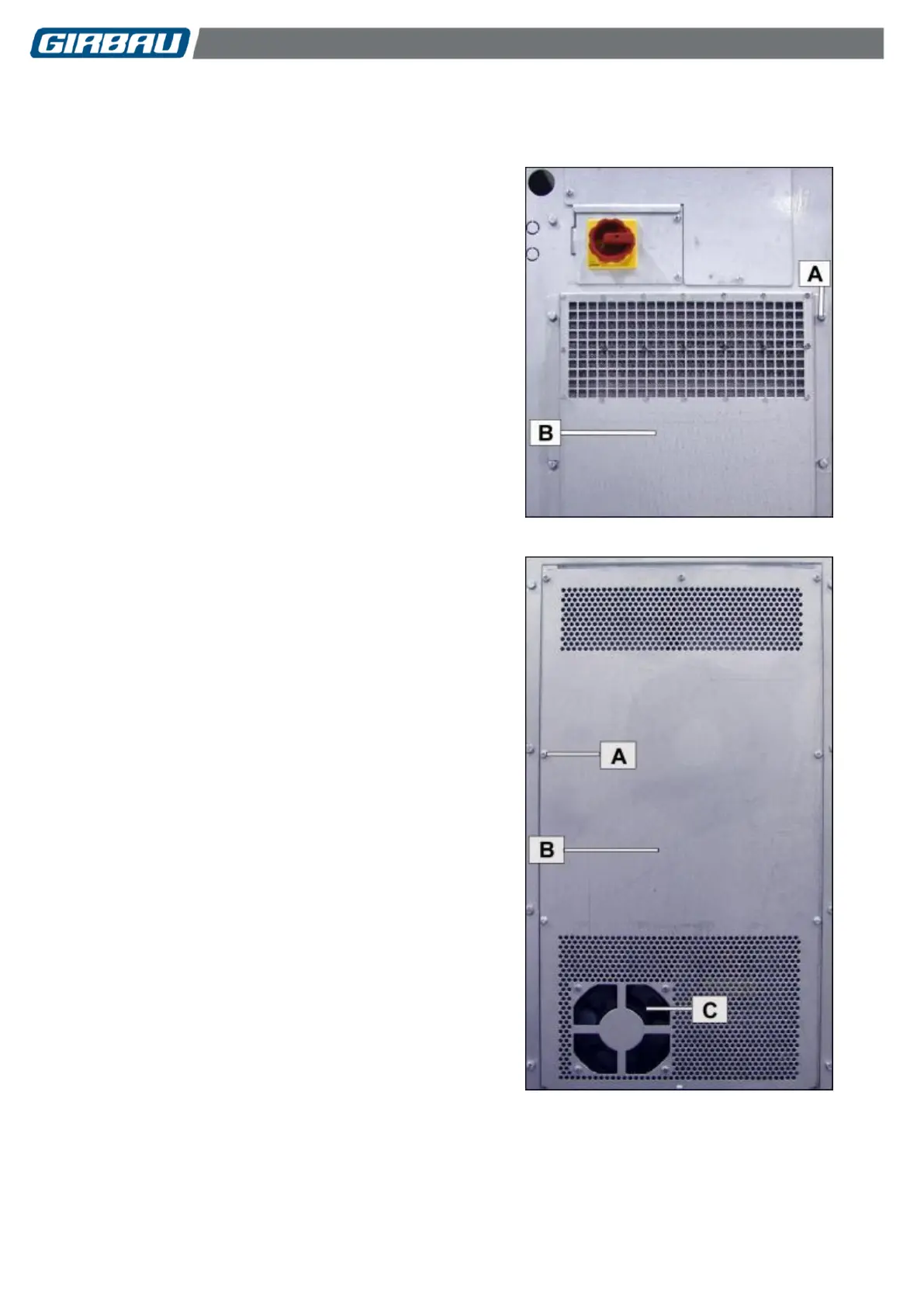

 Remove the screws A, release the fresh air
ducting cover B (figure 3.8).
Fig. 3.8
 Remove the screws A, release the cover B, and
disconnect the fan C
(Figure 3.9).
Fig. 3.9
