User Manual V1.1-2022-11-1506 Electrical Connection

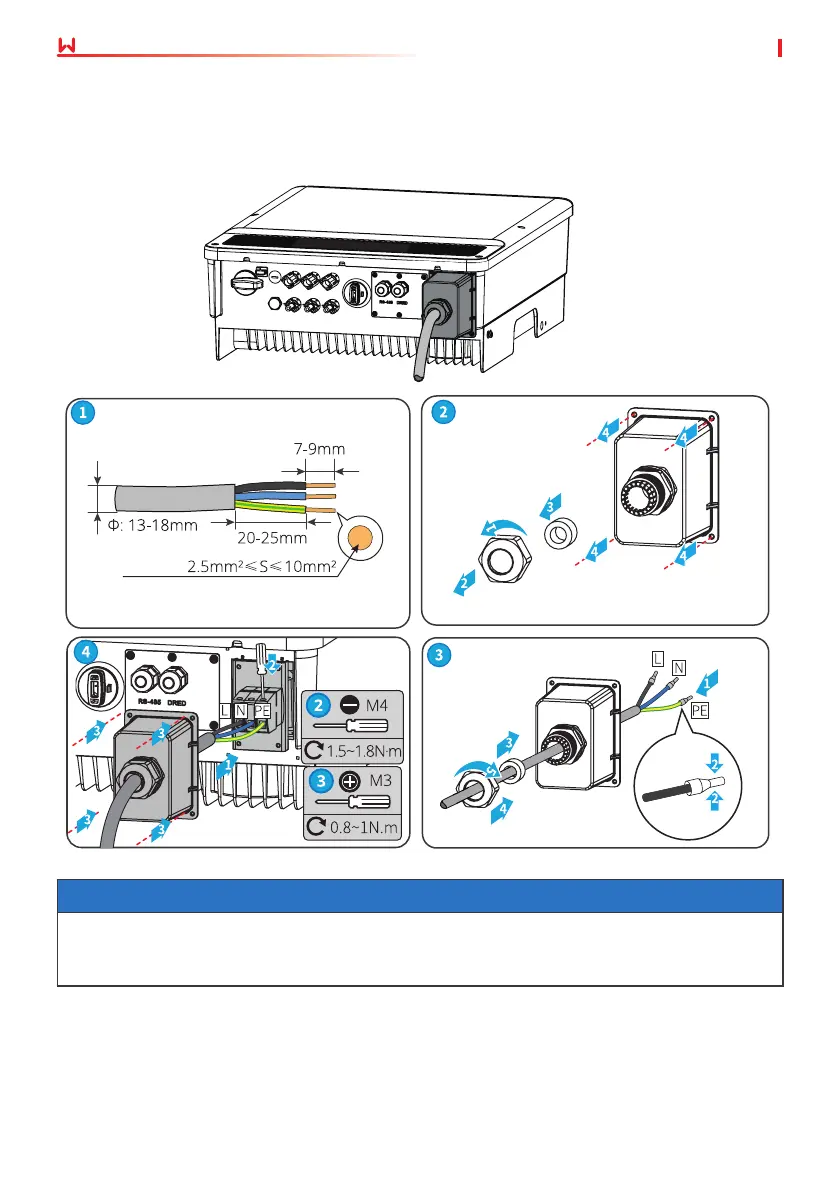

Step 1 Make the AC output cable.
Step 2 Disassemble the DC routing hole’s end cap.
Step 3 Use the cable gland for routing wires.
Step 4 Plut the AC connector into the inverter.
NOTICE
• Make sure that the cable is connected correctly and securely. Clear the debris after completing
the connection.
• Seal the AC output terminal to ensure the ingress protection rating.
Copper,
To Next Page
