Google Nest Power Connector User Manual

20 21
ENGLIS H

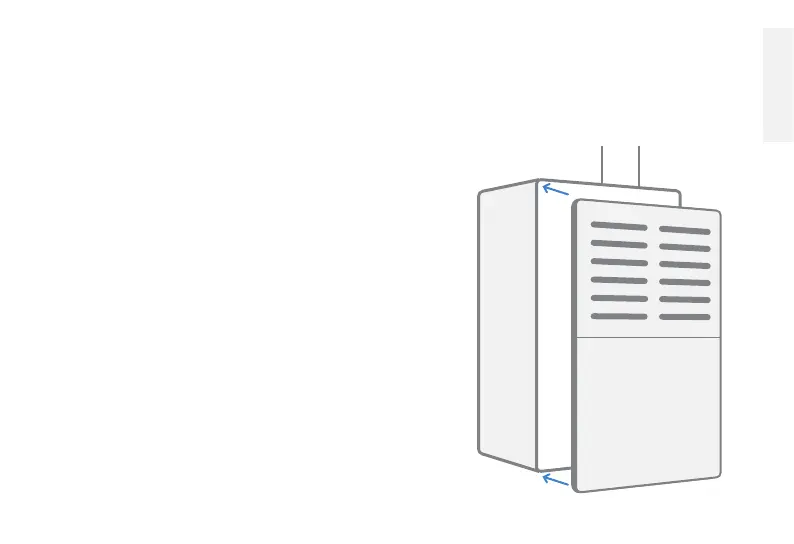

8. Close the HVAC cover and
turn on the power
To turn on your power and thermostat, the HVAC
cover must be closed. Your system may not
turn on with the cover open.
7. Install the power connector
D. No C-terminal
Professional installation recommended
Connect with an independent installer who’s trained
to install Google Nest products at g.co/nest/install
Find advanced instructions at
g.co/nest/powerconnectoradvanced

Google Nest Power Connector Specifications

General

Output Voltage	24V AC
Wire Gauge Compatibility	18-22 AWG
Compatibility	Nest Thermostat E
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	5% to 95% (non-condensing)
Power	20 VA
Purpose	Provides power to Nest Thermostat when no C-wire is available
