Reference
3A8429B 33
Reference
Spray Tip Selection
Selecting Tip Size
Spray tips come in a variety of hole sizes for
spraying a range of fluids. Your sprayer
includes a tip for use in most paint spraying
applications. Use coatings tables on page 22
to determine the range of recommended tip
hole sizes for each fluid type.
Hints:
• As you spray, the tip wears and
enlarges. Starting with a tip hole size
smaller than the maximum will allow
you to spray within the rated flow
capacity of the sprayer.
• Use larger tip hole sizes with thicker
coatings and smaller tip hole sizes with
thinner coatings.
• Tips wear with use and need periodic
replacement.
• Tip hole size controls flow rate - the
amount of paint that comes out of the
gun.
Fan Width
Fan width is the size of the spray pattern,
which determines the area covered with each
stroke.
Hints:
• Select a fan width best suited to the
surface being sprayed.
• Wider fans allow provide better cover-
age on broad, open surfaces.
• Narrower fans provide better control on
small, confined surfaces.

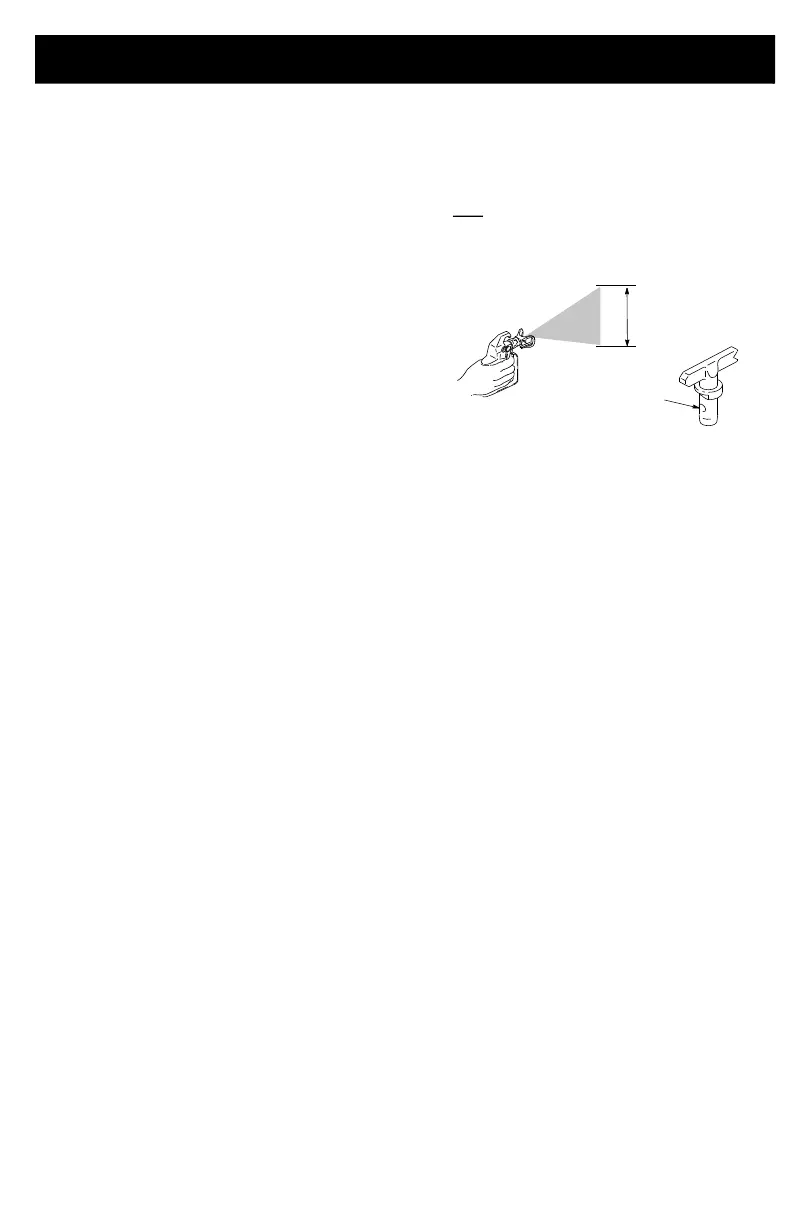

Understanding Tip Number
The last three digits of tip number (i.e.:
221413) contain information about hole size
and fan width on surface when gun is held 12
in. (30.5 cm) from surface being sprayed.
Cleaning Fluid
Compatibility
• When spraying water-based materials,
flush the system thoroughly with water.
• When spraying oil-based or flammable
materials, flush the system thoroughly
with mineral spirits or compatible
flushing solvent. When flushing with
solvents, always follow Grounding
Instructions, page 10.
• To spray water-based materials after
spraying oil-based or flammable
materials, flush the system thoroughly
with water first. The water flowing out of
drain tube should be clear and sol-
vent-free before you begin spraying the
water-based material.
• To spray oil-based or flammable
materials after spraying water-based
materials, flush the system thoroughly
with mineral spirits or a compatible
flushing solvent first. The solvent flow-
ing out of the drain tube should not con-
tain any water. When flushing with
solvents always follow Grounding
Instructions, page 10.
• To avoid fluid splashing back on your
skin or into your eyes, always aim gun at
inside wall of pail.
First digit when doubled
= approximate
fan width.
413 tip has
8-10 in. (20-25 cm)
fan width.
413 tip has
a 0.013 in.
hole size
Last two digits = tip hole size in thousands of an inch.
