GB - 10
1. Ignition Switch
2. PTO Switch
3. Throttle Lever
4. Seat
5. Steering Levers
6. Parking Brake
7. Fuel Tanks
8. Mower Lift Pedal
9. Mower Deck
10. Discharge Chute
11. Fuel Shut-Off Valve
12. Choke Control
13. Hour meter

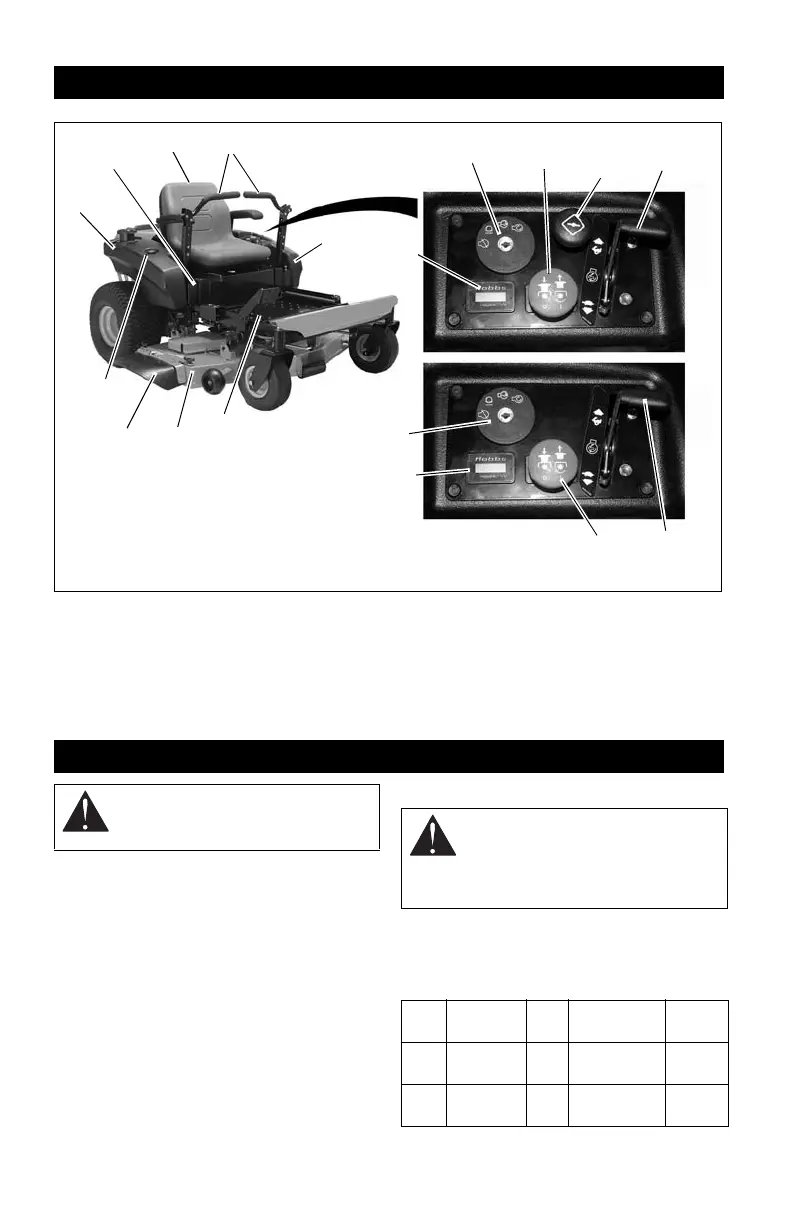

CONTROLS AND FEATURES
See figure 3 for all controls and features
locations.
Safety Interlock System
Perform the following tests to ensure the
safety interlock system is working properly. If
the unit does not perform as stated contact
your Gravely dealer for repairs.
CONTROLS AND FEATURES
4
21
3
5
8
9
10
7
6
12
11
7
13
Figure 3
1
13
2
3
915110
OPERATION
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
WARNING: Safety interlock failure
and improper operation of unit can
result in death or serious injury.
Check system before each use to
make sure it is functioning properly.
Test Steering
Lever
PTO Parking
Brake
Engine
1 Neutral
Position
Off Engaged Starts
2 Neutral
Position
On Engaged Doesn’t
Start
To Next Page
