EN - 29
See Figure 33.
6. Loosen nut on hex bolt supporting
eccentric spacer.
7. Rotate eccentric spacer around hex bolt
until levers are at the same height.
8. Tighten nut.
3
Adjust Steering Lever Reach
See Figure 34.
1. Loosen hardware securing steering lever
to upper control arm.
2. Pivot steering lever to desired position.
Ensure levers are aligned with each
other.
3. Tighten hardware.
ADJUST UNIT TO TRACK
STRAIGHT
NOTICE: Reverse travel can only be
adjusted by your Gravely dealer.
Check Tire Pressure
1. Check pressure of both tires. See
Specifications on page 37 for
recommended tire pressure.
2. Recheck unit tracking. If unit still does not
track straight, note which side the unit
pulls toward and increase the tire
pressure on that side.
IMPORTANT: DO NOT exceed maximum tire
pressure listed on tire sidewall.
If increasing tire pressure on one side does
not correct tracking problem, adjust the
steering levers.

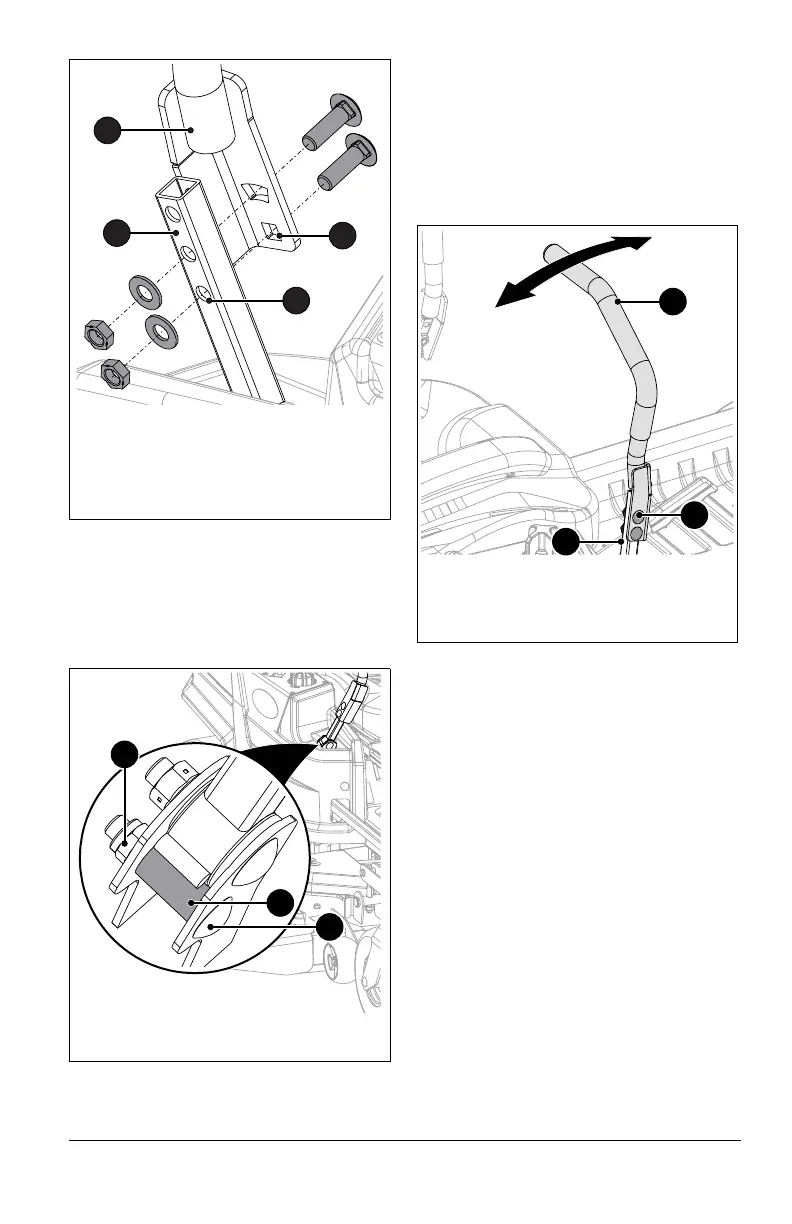

Figure 32
1. Adjusting Hole
2. Mounting Hole
3. Steering Lever
4. Upper Control Arm
1
2
3
4
Figure 33
1. Eccentric Spacer
2. Hex Bolt
3. Nut
1
2
3
Figure 34
1. Steering Lever
2. Upper Control Arm
3. Hardware
1
2
3
