EN - 30
Adjust Steering Levers
See Figure 35.
If adjusting tire pressure did not correct
tracking problem:
1. Loosen jam nut on adjustment bolt of
steering lever that needs adjustment.
2. Adjust drive wheel speed.
• Turn adjustment bolt counterclockwise
to increase steering lever travel and
drive wheel speed.
• Turn adjustment bolt clockwise to
decrease steering lever travel and drive
wheel speed.
3. Tighten jam nut.
IMPORTANT: Adjustment bolt must contact
steering lever. DO NOT turn adjustment bolt
too far counterclockwise.
ADJUST PARKING BRAKE
LEVER
1. Park unit a flat, level surface and chock
wheels so unit cannot roll.
2. Position deck at lowest cutting height.
See Figure 36.
3. Loosen upper jam nut and adjust lower
nut up or down until brake lever functions
correctly.
4. Tighten upper jam nut against lower nut.
5. Return seat to operating position.
REMOVE AND INSTALL MOWER
DECK
Remove Deck
1. Set deck to lowest cutting height.
2. Position supports, such as wood blocks,
under mower deck.
See Figure 37.
3. Remove three self-tapping screws from
left belt cover and remove belt cover.
Retain all parts for reinstallation.
4. Disconnect idler spring from spring
bracket to release belt tension.

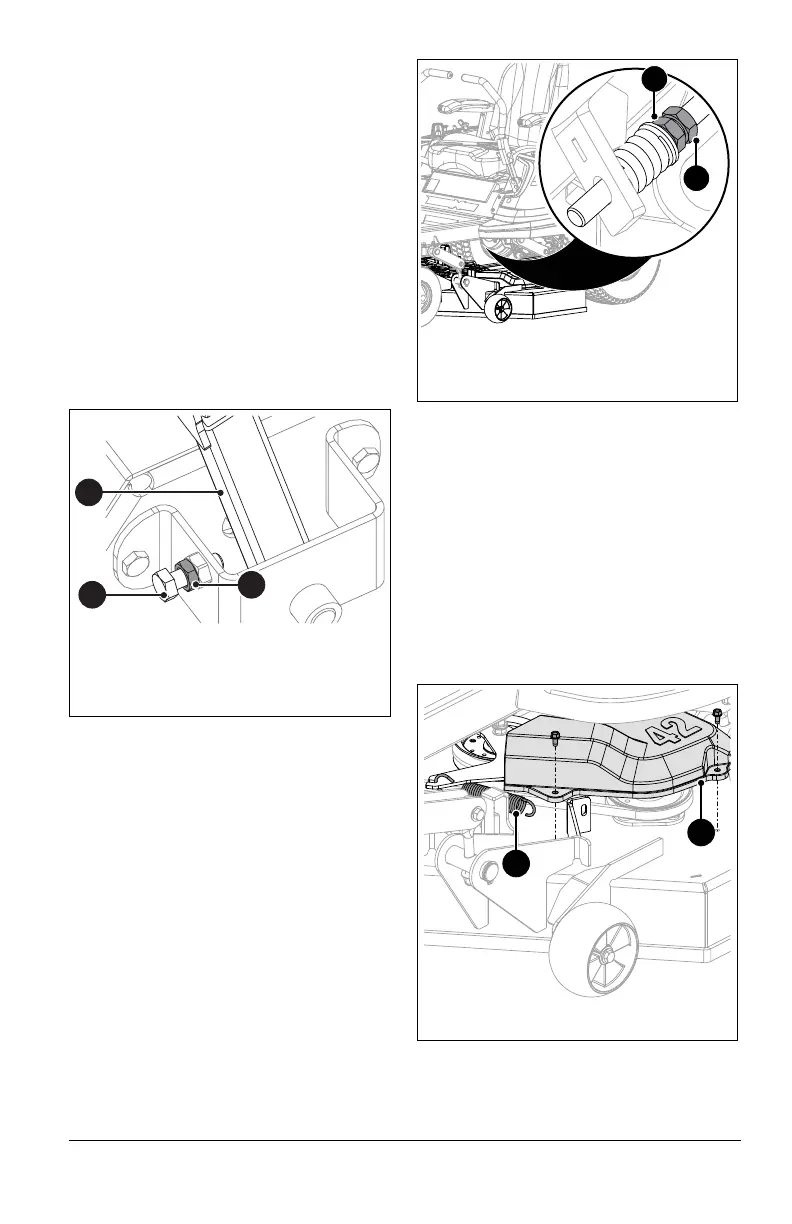

Figure 35
1. Steering Control Arm
2. Jam Nut
3. Adjustment Bolt
1
2
3
Figure 36
1
2
1. Upper Jam Nut
2. Lower Jam Nut
Figure 37
1. Spring
2. Belt Cover
1
2
