EN - 17

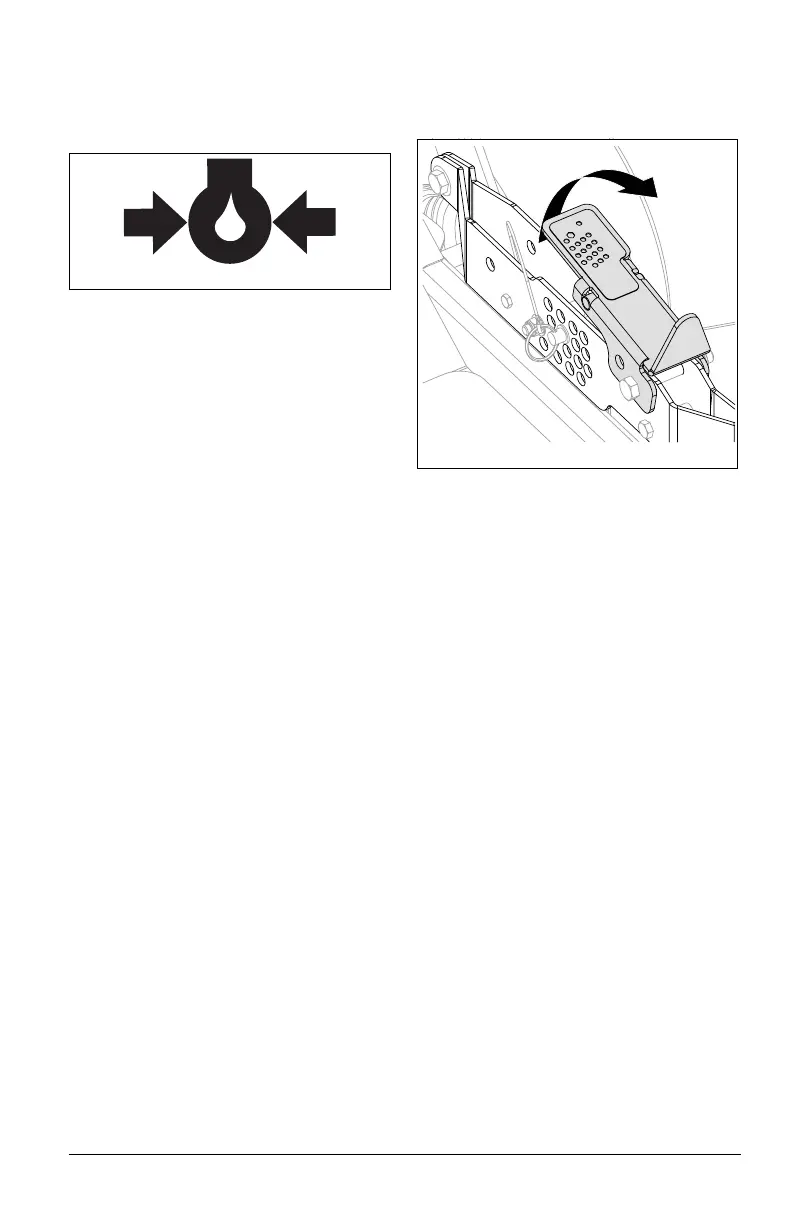

OIL PRESSURE WARNING LIGHT
See Figure 15.
Illuminates when oil pressure is low. Stop
engine immediately and refer to engine
manual.
MALFUNCTION INDICATOR
LIGHT
Models 991135, 991136
Illuminates when an engine-related problem
occurs. Stop engine immediately and refer to
engine manual.
DECK LIFT PEDAL
Raises mower deck to change height-of-cut
setting.
HEIGHT-OF-CUT ADJUSTMENT
SYSTEM
Sets the height of cut.
TRANSPORT LOCK
Locks mower deck in the highest position for
transporting or moving unit from one work
area to another. See Transport Unit on
page 23.
TRANSAXLE BYPASS LEVERS
Engage and disengage transaxles so unit can
be moved with the engine off.
ANTI-SCALP WHEELS
Help prevent the deck from contacting the
ground and scalping the lawn when mowing
over high spots.
TRANSPORT LOCK RELEASE
LEVER
See Figure 16.
Releases deck from transport lock position.
SEAT ADJUSTMENT LEVER
Unlocks seat to allow operator to move seat
forward or backward and then lock in desired
position.
SEAT HEIGHT ADJUSTMENT
DIAL
Raises and lowers seat height for operator
comfort.
LUMBAR SUPPORT
ADJUSTMENT LEVER
Controls the lumbar support in the backrest
for operator comfort.
BACKREST ADJUSTMENT DIAL
Controls backrest angle for operator comfort.
ARMREST ANGLE ADJUSTMENT
KNOBS
Set armrest angle for operator comfort.
HOUR METER
Measures and displays engine runtime.
Figure 15
Figure 16
