Gravely HVZ User Manual

GB - 14
TIPPING SEAT FORWARD
Put steering levers up and tip seat forward (figure 8).
SEAT ADJUSTMENT
1. Tip the seat forward.
2. Loosen mounting hardware and slide seat forward or
backward to desired position. Tighten mounting
hardware (figure 8).
3. Tip seat back.
MOWER DECK REMOVAL AND INSTALLATION
Remove (Figure 9)
1. Remove PTO belt from electric clutch (see REPLACING
PTO BELT on page 19).
NOTE: Perform step 2 and 3 for the right and left side of
unit.
2. Remove drag link from mower deck.
3. Remove front and rear trunnions from lift arms.
4. Slide mower deck out from under unit.
Install (Figure 9)
1. Slide mower deck under unit.
NOTE: Perform step 2 and 3 for the right and left side of
unit.
2. Install front and rear trunnions on lift arms.
3. Install drag link on mower deck.
4. Install PTO belt on electric clutch (see REPLACING
PTO BELT on page 19).
5. Level and adjust pitch of mower deck (see LEVELLING
AND ADJUSTING PITCH OF MOWER DECK on
page 15).
SERVICE AND ADJUSTMENTS
WARNING: AVOID INJURY. Read and understand
the entire Safety section before proceeding.

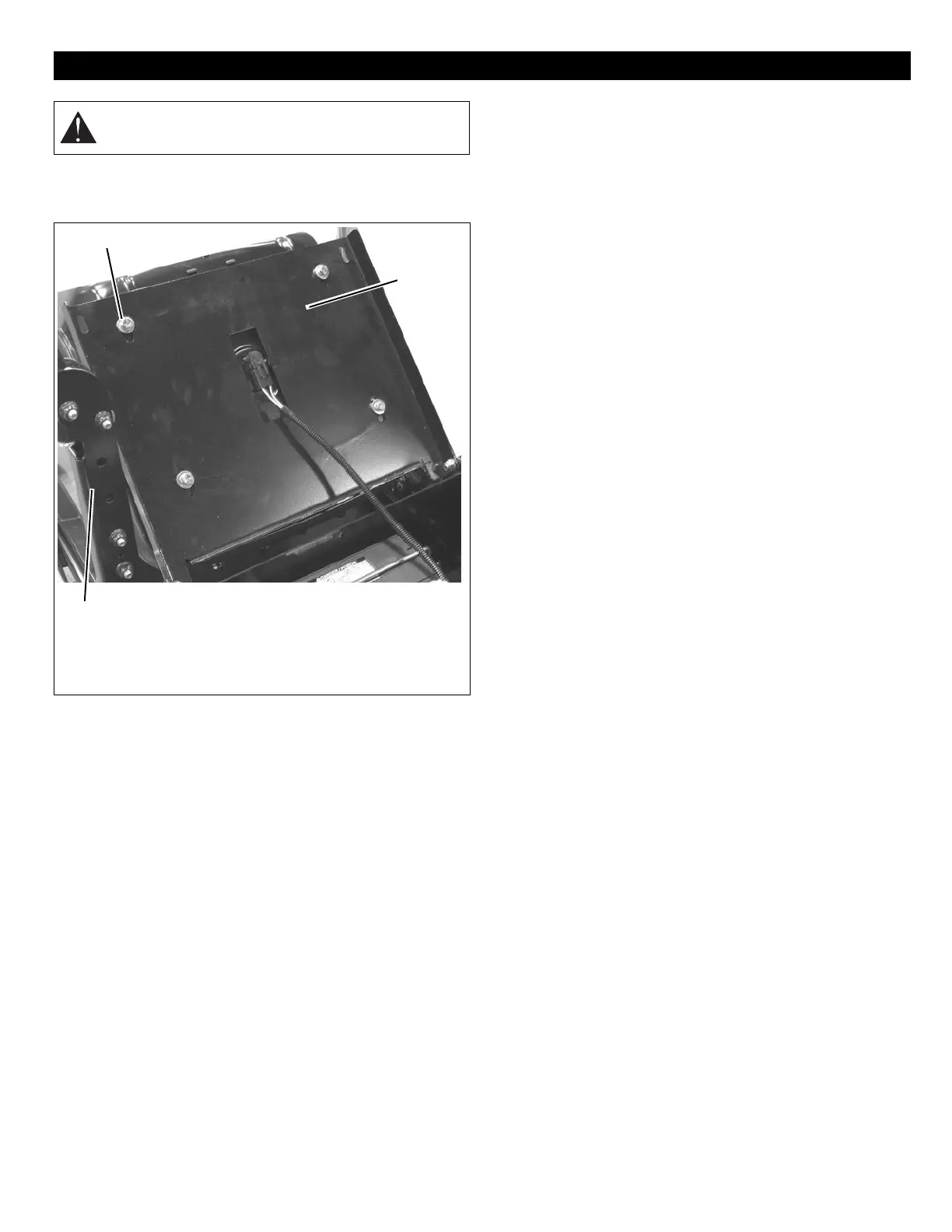

Figure 8
1. Steering Levers
2. Seat Tipped Forward
3. Mounting Hardware
1
3
2
