ADJUST STEERING LEVERS
Align Steering Levers
If there is more than 3.2 mm (1/8") between
the horizontal alignment of the steering
levers, align the levers.
1. Place steering levers in neutral position
and engage parking brake.
2. Stop engine, remove key and wait for all
moving parts to stop and for hot parts to
cool.
3. Loosen mounting hardware, align levers
and tighten hardware. See Figure 40.
Adjust Forward Position
The steering lever forward position may be
adjusted for operator comfort.
See Figure 40.
1. Place steering levers in neutral position
and engage parking brake.
2. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
3. Loosen mounting hardware on steering
lever assemblies.
4. Place steering levers in desired position:
• Gently push levers forward for greater
distance from operator.
• Gently pull levers back for closer
distance to operator.
5. Tighten hardware.
IMPORTANT: The steering levers should not
touch each other. There should be no more
than 3.2 mm (1/8") difference between the
horizontal and vertical alignment of the
levers.
Adjust Height
See Figure 41.
The steering lever height may be adjusted for
operator comfort.
1. Place steering levers in neutral position
and engage parking brake.
2. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
3. Remove steering lever hardware and
remove steering lever from lower control
arm.
4. Position steering lever at desired height
and align with lower control arm. Secure
with original hardware.
5. Adjust steering lever position. See Adjust
Forward Position on page 33.
6. Turn eccentric spacer so levers are at the
same height and have a 1.3 cm – 2.5 cm
(1/2" – 1") gap between lever ends. See
Figure 42.

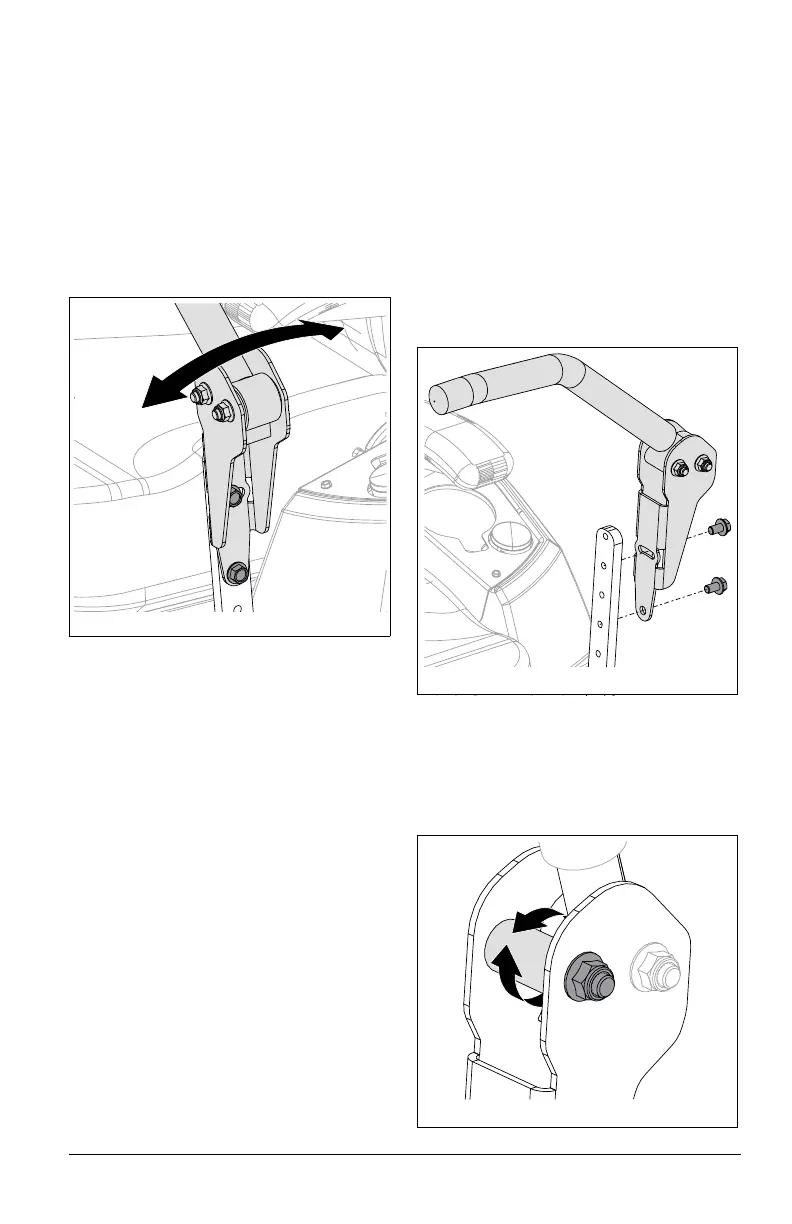

Figure 40
