TIPPING SEAT FORWARD
Put steering levers up and tip seat forward
(figure 7).
SEAT ADJUSTMENT
1. Tip the seat forward.
2. Loosen mounting hardware and slide
seat forward or backward to desired
position. Tighten mounting hardware
(figure 7).
3. Tip seat back.
MOWER DECK REMOVAL AND
INSTALLATION
Remove (Figure 9)
1. Remove PTO belt from the engine drive
pulley (see REPLACING PTO BELT on
page 24).
2. Disconnect PTO actuator cable from the
cable anchor and deck idler arm.
NOTE: Perform steps 3 and 4 for the right
and left side of unit.
3. Disconnect drag link from the front deck
bracket.
4. Disconnect front and rear trunnions from
the lift arms.
5. Slide mower deck out from under unit.
SERVICE AND ADJUSTMENTS
WARNING: AVOID INJURY.
Read and understand the entire
Safety section before proceeding.

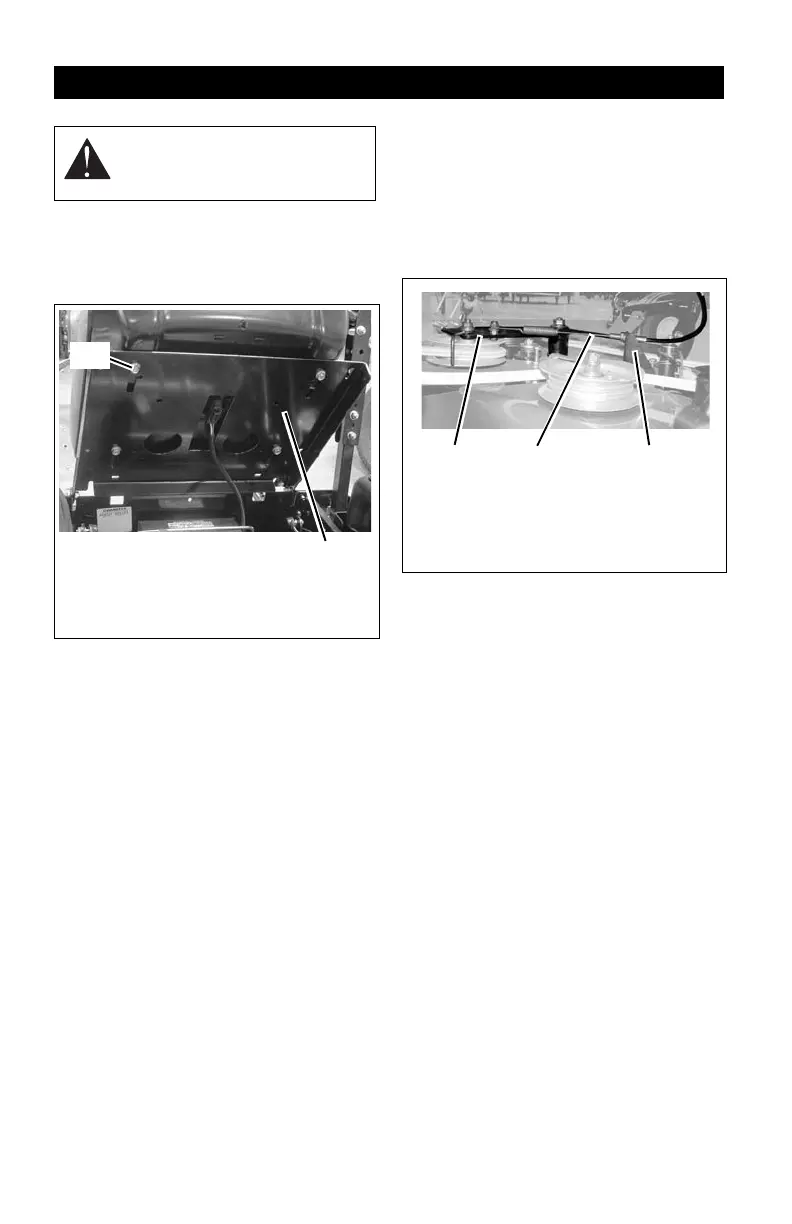

Figure 7
1. Seat Tipped Forward
2. Mounting Hardware
1
2
Figure 8
1. Cable Anchor
2. PTO Actuator Cable
3. Idler Arm
1
3
2
