Gravely ZT HD 52 Manual

EN - 13
1. Fuel Tank and Cap
2. Steering Levers
3. Hydraulic Oil Reservoir (under seat)
4. Ignition Switch
5. Hour Meter
6.
Throttle Lever
7. Choke Control (Models 991082, 083,
084, 099, 101)
8. Power Take Off (PTO) Switch
9. Battery (under seat)
10. Mower Lift Pedal
11. Mower Deck
12. Mower Lift Lock
13. Seat Adjustment Lever
14. Parking Brake
15. Bypass Valve Lever

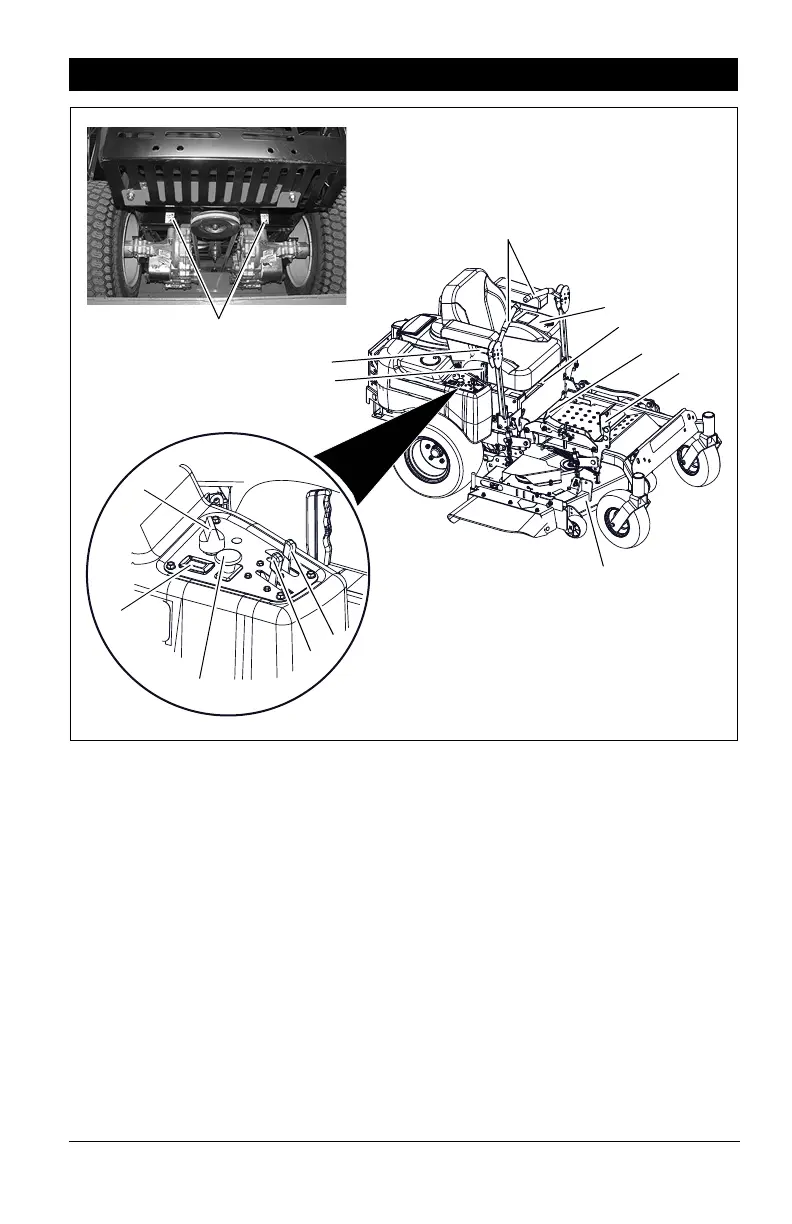

CONTROLS AND FEATURES
Figure 3
1
2
4
5
7
8
3, 9
10
12
13
14
6
15
11

Gravely ZT HD 52 Specifications

General

Engine Brand	Kawasaki
Engine Model	FR691V
Engine Displacement	726 cc
Cutting Width	52 inches
Cutting Height	1.5 - 5 inches
Transmission Type	Hydro-Gear ZT-3100
Blade Tip Speed	18, 500 fpm
Deck Type	Fabricated
Turning Radius	Zero-turn
Horsepower	23 HP
Seat Type	High Back with Armrests
