GB - 9
1. Ignition Switch
2. PTO Switch
3. Throttle Lever
4. Seat
5. Steering Levers
6. Parking Brake
7. Fuel Tanks
8. Headlights (915078, 080, 082)
9. Axle Lock (915078, 080, 082)
10. Mower Lift Pedal
11. Mower Deck
12. Discharge Chute
13. Fuel Shut-Off Valve
14. Choke Control (915078, 080, 082)
15. Hour meter (915076, 078, 080, 082, and
optional on 915074)

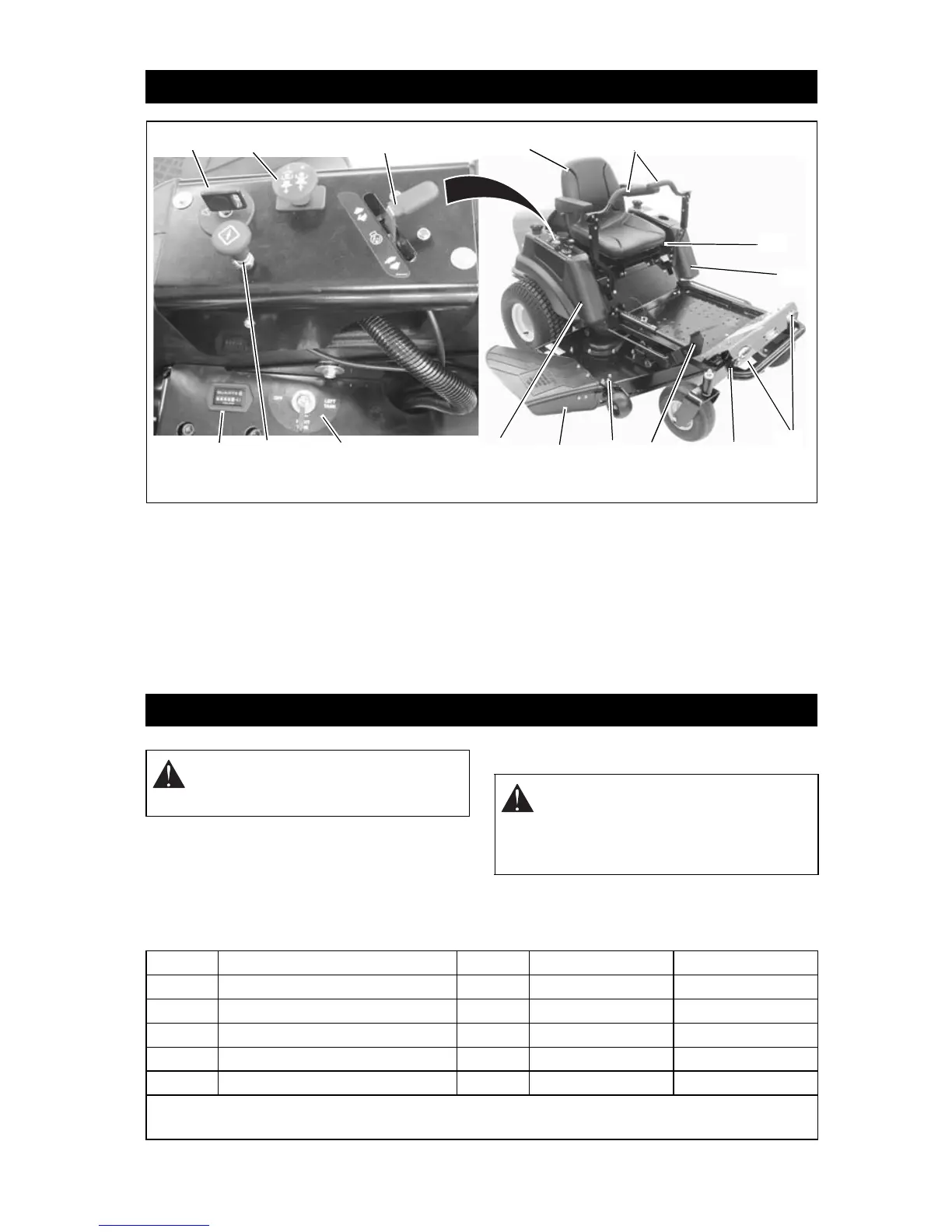

CONTROLS AND FEATURES
See figure 4 for all controls and features
locations.
Safety Interlock System
Perform the following tests to ensure the
safety interlock system is working properly. If
the unit does not perform as stated contact
your Gravely dealer for repairs.
CONTROLS AND FEATURES
OE0220
4
2
1
3
5
10
11
12
7
6
14
913
Figure 4
7
15
8
OPERATION
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
WARNING: Safety interlock failure
and improper operation of unit can
result in death or serious injury.
Check system before each use to
make sure it is functioning properly.
Test Steering Lever PTO Parking Brake Engine
1 Neutral Position Off Engaged Starts
2 Neutral Position On Engaged Doesn’t Start
3 Neutral Position Off Disengaged Doesn’t Start
4*+ Out of Neutral Position Off Disengaged Shuts Off
5*+ Neutral Position On Engaged Shuts Off
* Test with engine running.
+ Operator lifts off seat.
