Gree Butterfly KF-23GW/A13 User Manual

Butterfly Series
- 19 -
The data are subject to change without notice.

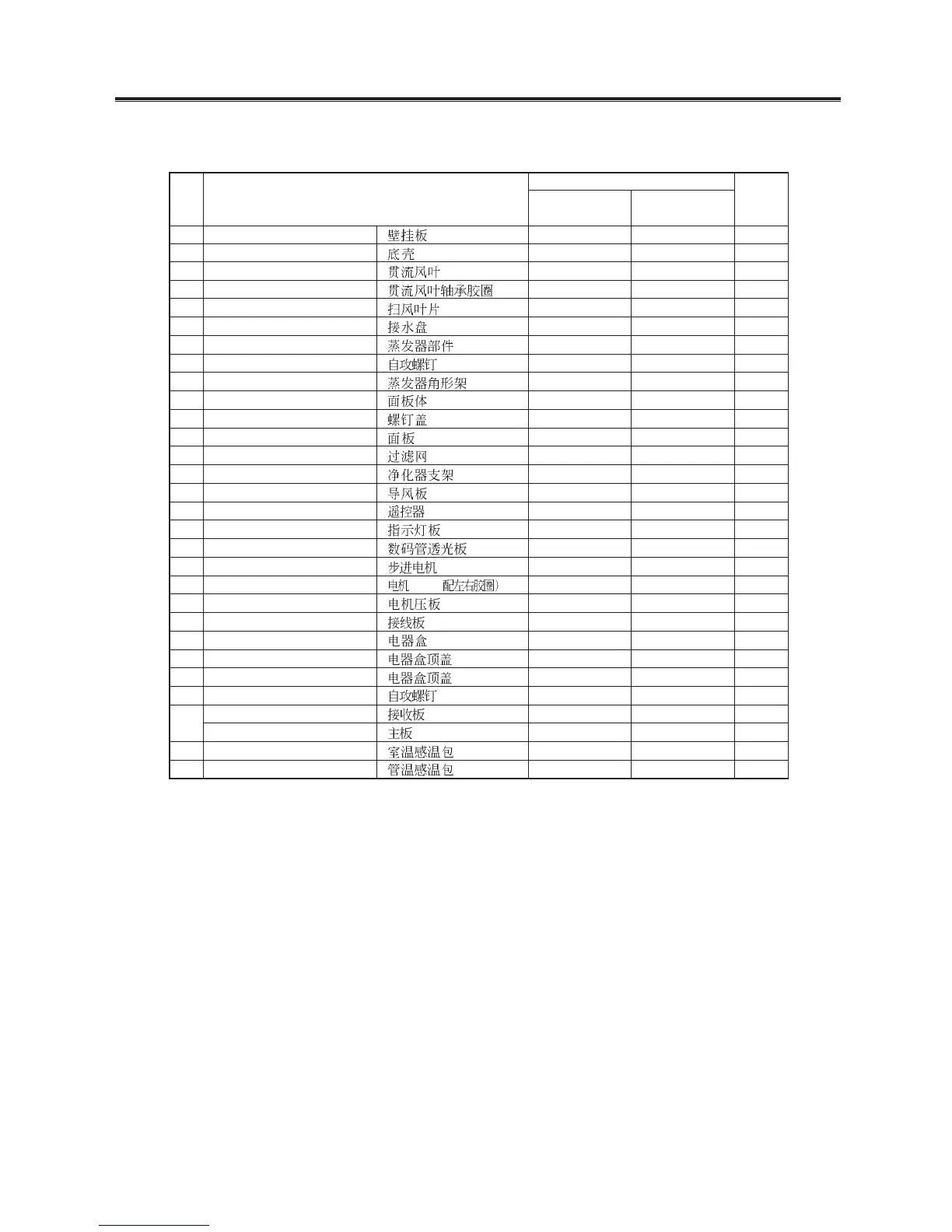

Description QtyNo.
KF-
23G/A13-12206
1 Wall-Mounting Frame 01252206 01252206 1
2 Rear Case
22202004 22202004 1
3 Cross Flow Fan
10352398 10352398 1
4 Fan Bearing
76512203 76512203 1
5 Swing Louver
10512002 10512002 1
6 Water Tray
20182004 20182004 1
7 Evaporator Assy
01002137 01002137 1
8 Self Tapping Screw
ST4.2X13 70140553 70140553 1
9 Evaporator Supporter
24212001 24212001 1
10 Front Case
20002034 20002034 1
11 Screw Cover
24252001 24252001 3
12 Front Panel
20002035 20002035 1
13 Filter
11122006 11122006 2
14 Air Filter Bracket
24222001 24222001 2
15 Guide Louver
26112004 26112004 1
16 Remote Controller
Y522F 30515007 30515007 1
17 Indicator Light Ban
22432007 22432007 1
18 Incept Telecontrol Window
22432006 22432006 1
19 Stepping Motor MP24GA
MP24GA 15212102 15212102 1
20 Motor FN13F
FN13F( 15012055 15012055 1
21 Motor Clamp
26112014 26112014 1
22 Terminal Board GT4A3A3
GT4A3A3 42011134 42011134 1
23 Electric Box
20102010 20102010 1
24 Electric Box Cover 1
1 20102009 20102009 1
25 Electric Box Cover 2
2 20102008 20102008 1
26 Self Tapping Screw
ST4.2X13 70140553 70140553 5
27
PCB 5K522J
JD 30046054 30046054 1
Main Board
5K51 30055758 30055758 1
28 Room Sensor
39000043 39000043 1
29 Tube Sensor
39000058 39000058 1
Part No.
KF-
26G/A13-12206
Table 9

Gree Butterfly KF-23GW/A13 Specifications

General

Brand	Gree
Model	Butterfly KF-23GW/A13
Category	Air Conditioner
Language	English
