7

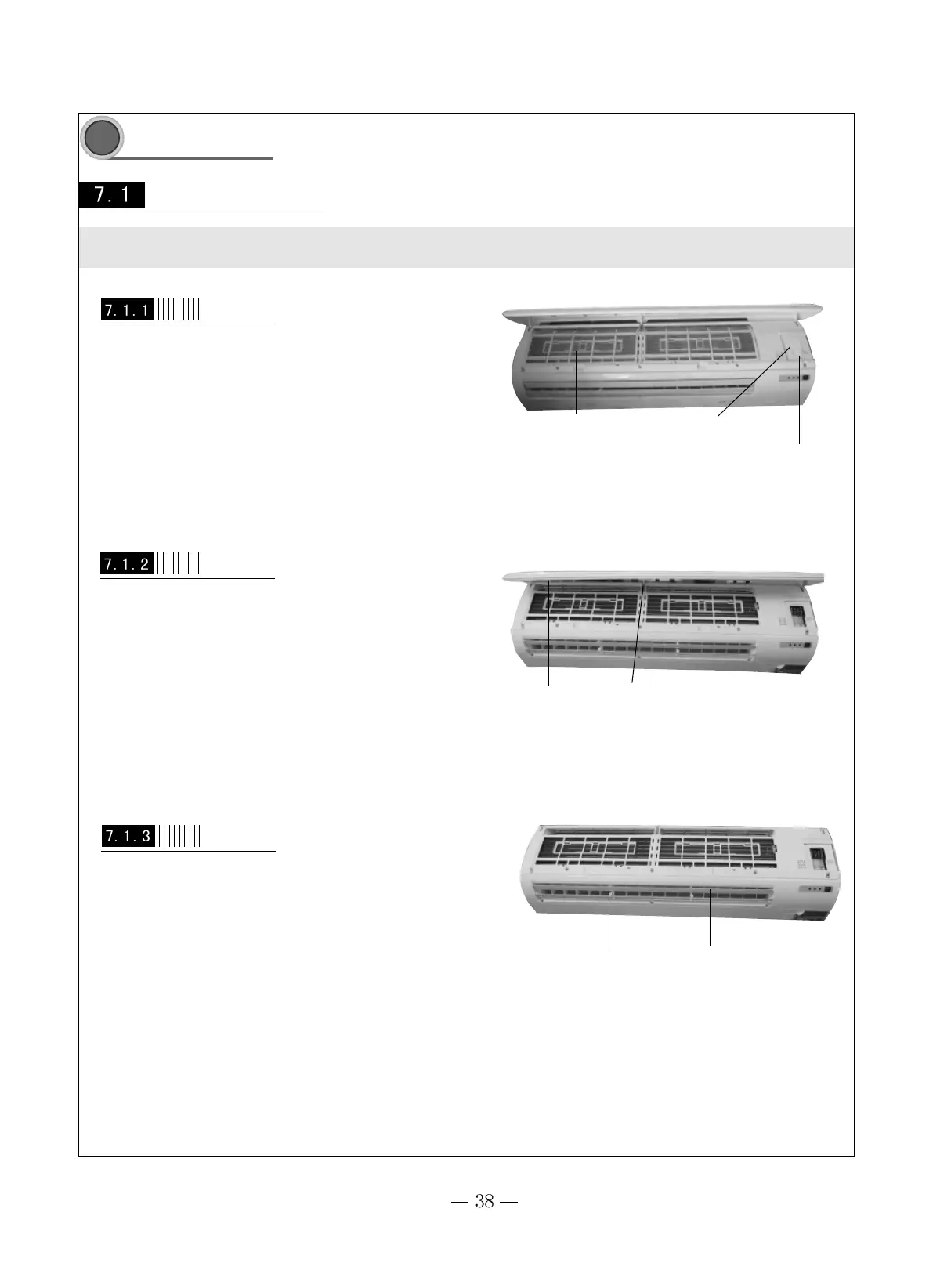

Disassembly and Assembly Procedures
Disassembly Procedures of Indoor Unit
Operating Procedures / Photos
Disassemble Front Panel
Disassemble Filter
Push the filter inward and then pull it upward to
remove it. Twist off screws to remove the cover
plate of electric box.
（refer to Figure 7-1）
Filter
Screw
Electric Box.Cover Plate
Figure 7-1
Figure 7-2
Figure 7-3
（refer to Figure 7-2）
（refer to Figure 7-3）
Pull open the front panel. Push the front panel
along the front case groove fixing the front panel
to remove it.
Front Panel Hook
Disassemble Guide Louver
Manually bend the guide louver to loose the
clasp at the guide louver. Remove the guide
louver.
Clamp Guide Louver
To Next Page
