Duct Type Split Air Conditioner
Service Manual
2.2 Installation Site
1). Outdoor unit should be installed in a steady and stable place.
2). To reduce the length of the refrigerant pipe and bend number, make sure the indoor unit and outdoor
unit be close to each other.
3). Ensure the operation noise do not disturb neighbors and passerby.
4). Do not install the unit where it will be exposed to direct sunlight or other radiation heat source, or the
awning or a rainproof cloth should be utilized.
5). The inlet and outlet port should not be blocked.
6). Make sure the well air circulation.
7). Selection a location that is far away from combustible or explosive material, dust, fog or moist.
Don’t connect any air leading duct to the outdoor unit, at neither the air inlet nor the air outlet.
The outdoor unit will drop condensate while running at heat mode. If the temp is minus, it will form
ice. Don’t let the rain proof interfere the ventilation of outdoor unit.

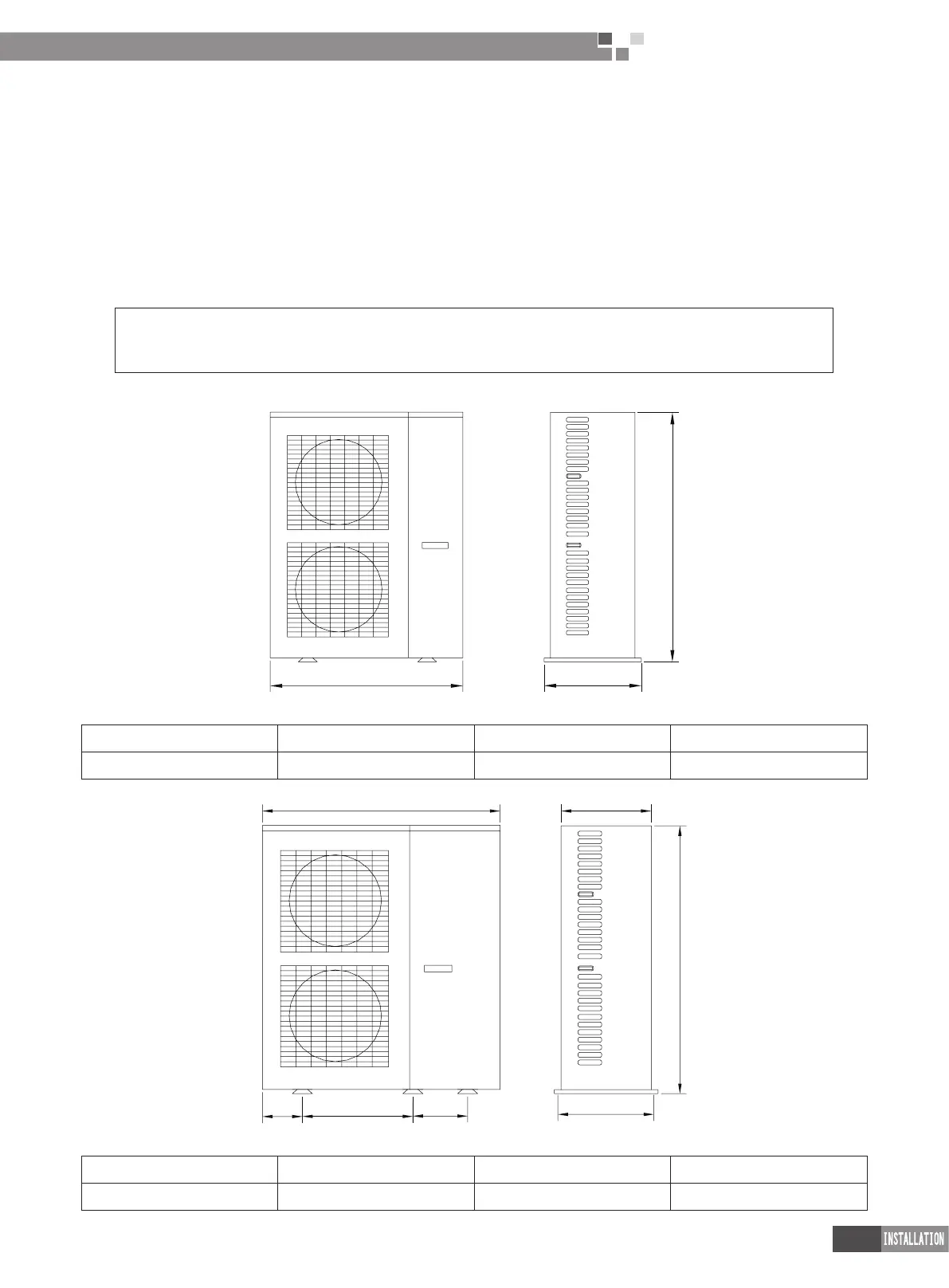

2.3 Dimension Data
AB
C
Unit: mm
Model A B C
FG(R)20/BNa-M(O) 1150 460 1350
A
B
C
360
193
488 287
Unit: mm
Model A B C
FG(R)25/CNa-M(O) 1150 422 1600
