30
Energy-Recovery Ventilation
System Service Manual
5 EXPLODED VIEWS AND PART LIST
1) Model:FHBQ-D3.5-K;FHBQ-D5-K;FHBQ-D8-K;FHBQ-D10-K FHBQ-D15-M;FHBQ-D20-M.

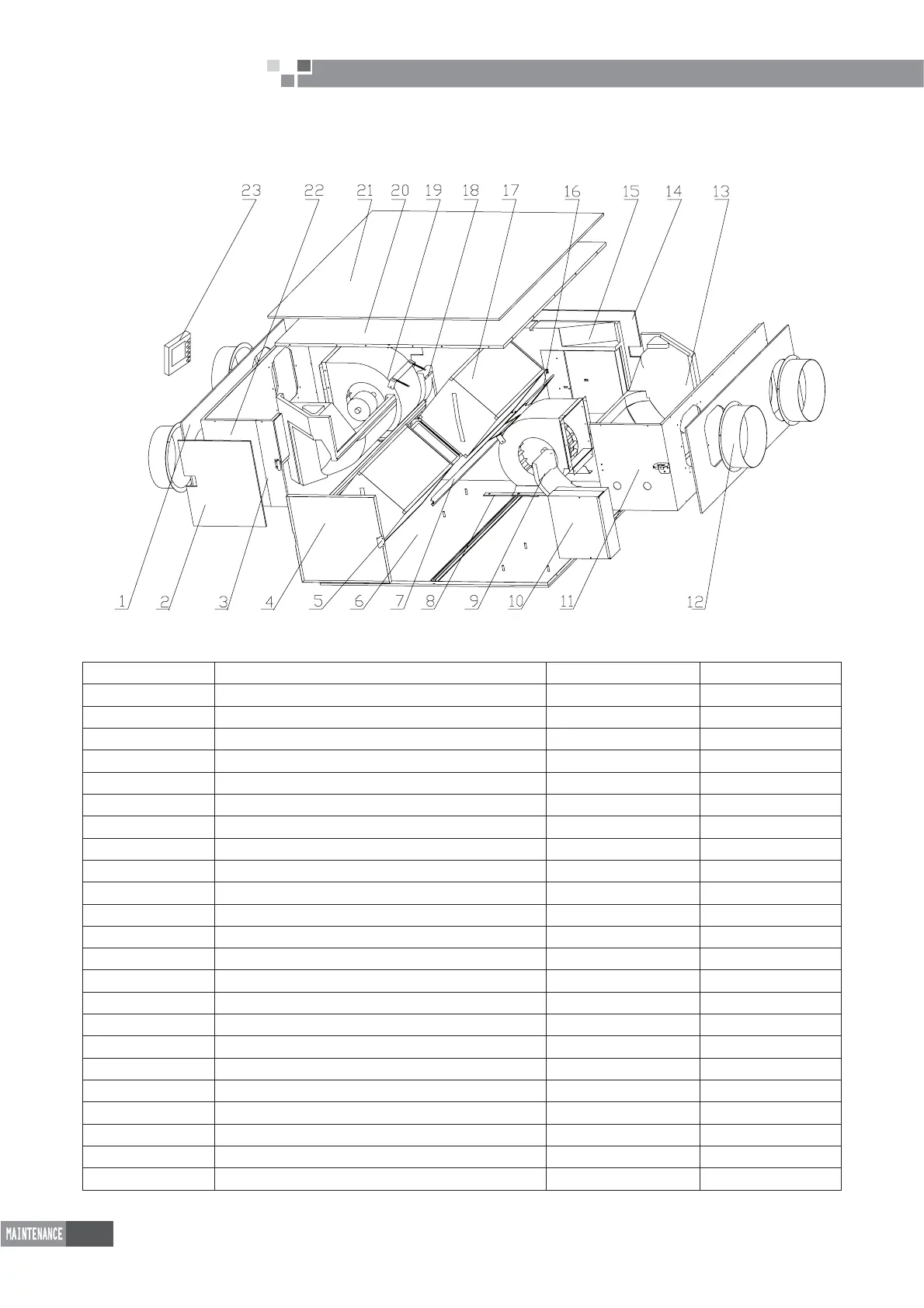

Exploded View
FHBQ-D3.5-K( EH01100010)Parts List
No. Name Num. Code
1 sponge 1( Left Side Plate) 2 12208928
2 sponge 2( Left Side Plate) 1 12208916
3 Assy 2 of Left Side Plate 1 01318902
4 Assy of overhauling door 1 01398902
5 Door Holder 1 02208901
6 Base Plate Assy 1 01288901
7 Retaining Plate Assy 2 01848903
8 Rubber Sheet 2 76718901
9 Foam Assy 3 1 12319813
10 Electric Box Assy 1 01396159
11 Sub-assy of Right Side Plate 1 01311115
12 ÀDQJH6XEDVV\ 4 01491142
13 Foam Assy 1 2 12319811
14 sponge(Side of Bottom Plate) 1 12208920
15 By-pass assy 1 07138901
16 Filter Sub-assy 2 11128901
17 heat exchanger assy 2 00908901
18 Foam Assy 2 1 12319812
19 Motor Sub-Assy 2 15408901
20 Cover Plate Assy 1 01268901
21 sponge 1 1220890103
22 Sub-assy 1 of Left Side Plate 1 `01311116
23 Display board 1 30295007
