6
Storm
window
Frame
5.1 cm (2”)
piece
of wood
1.3 cm (1/2”)

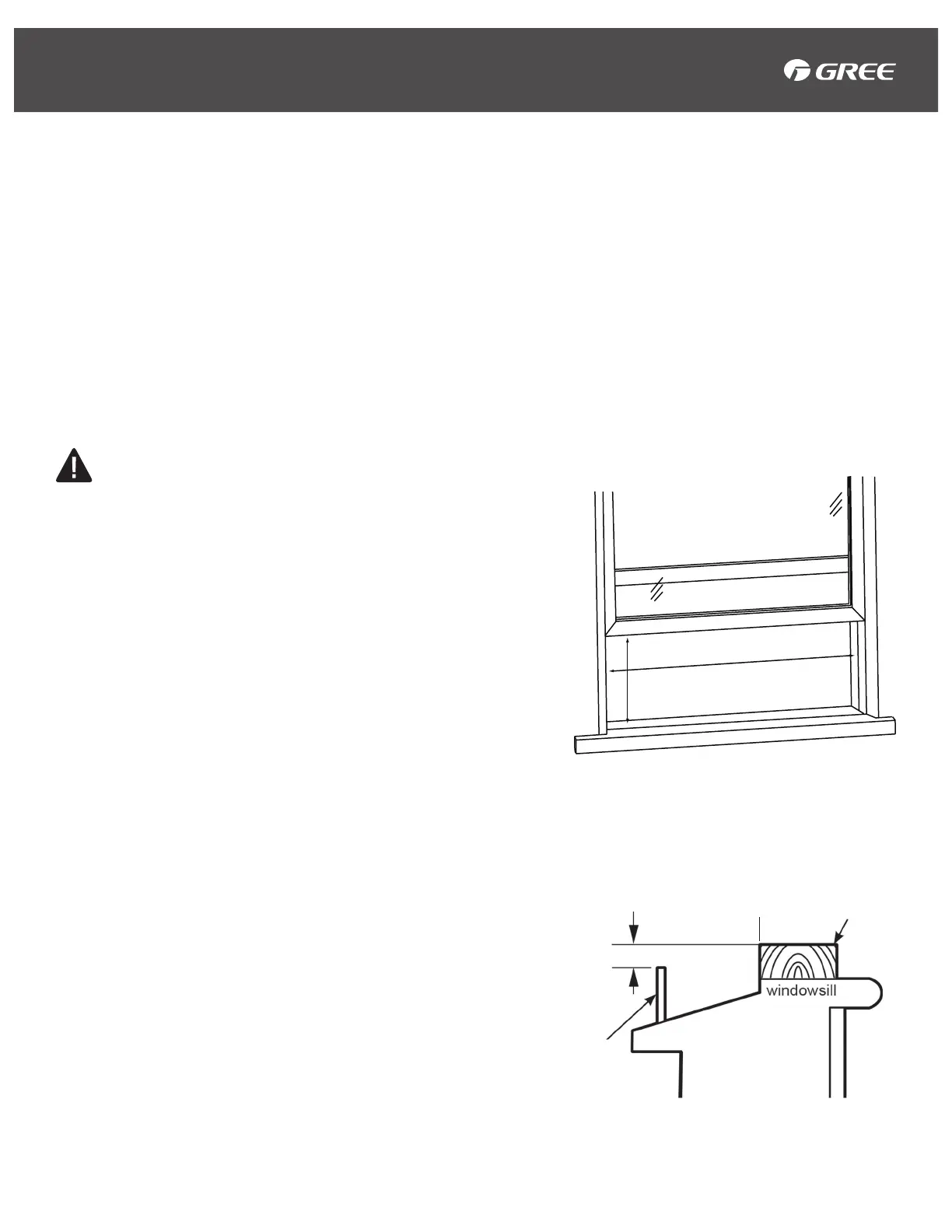

INSTALLATION INSTRUCTIONS
Where to Install the Unit
• Ensure there is no obstruction near the air-inlet or air-outlet.
• Select a window where the condensation water can be dispersed easily out the back
of the unit and won’t affect others.
• The window should be able to withstand the weight of the unit.
• Select a window where noise and outflow air emitted by unit will not affect others.
• Select a window out of reach of children and animals.
W: 61 cm – 102 cm (24” – 40”)
H: 47.5 cm (18.7”) min
NOTE:
• The description for installation is for the standard vertical
double hung window.
• If you need to install the air conditioner in a narrow window,
you may not need to use the
Flexible Screen
sub-assembly. Please refer to requirement of window
size for details.
• All parts must be secured to firm wood, masonry, or metal.
• The electrical outlet must be within reach of the
power cord.
• Refer to the dimensions in the illustration.
STORM WINDOW
A storm window frame will not allow the air conditioner to tilt
toward the outside, and it will prevent the unit from properly
draining. To adjust for this, attach a piece of wood (not
included) to the window sill.
Wood Piece: Width: 5.1 cm (2”)
Length: Long enough to fit inside the window frame
Thickness: To determine the thickness, place a piece of
wood on the window sill to make it 1.3 cm (1/2”) higher than
the top of the storm window frame or vinyl frame. Attach
securely with nails or screws (not included).
