11
Debris
Guard
Projection
Prongs
Top
Hole
Rain Guard
4
Connect both
Rain Guards to the Debris
Guard
. Insert all 3 tabs on the Rain Guard
into the holes in the
Debris Guard. Ensure
curved side is on TOP.
Cut the Foam with Adhesive to fit length of
the window and attach to window sill.
Foam with
Adhesive

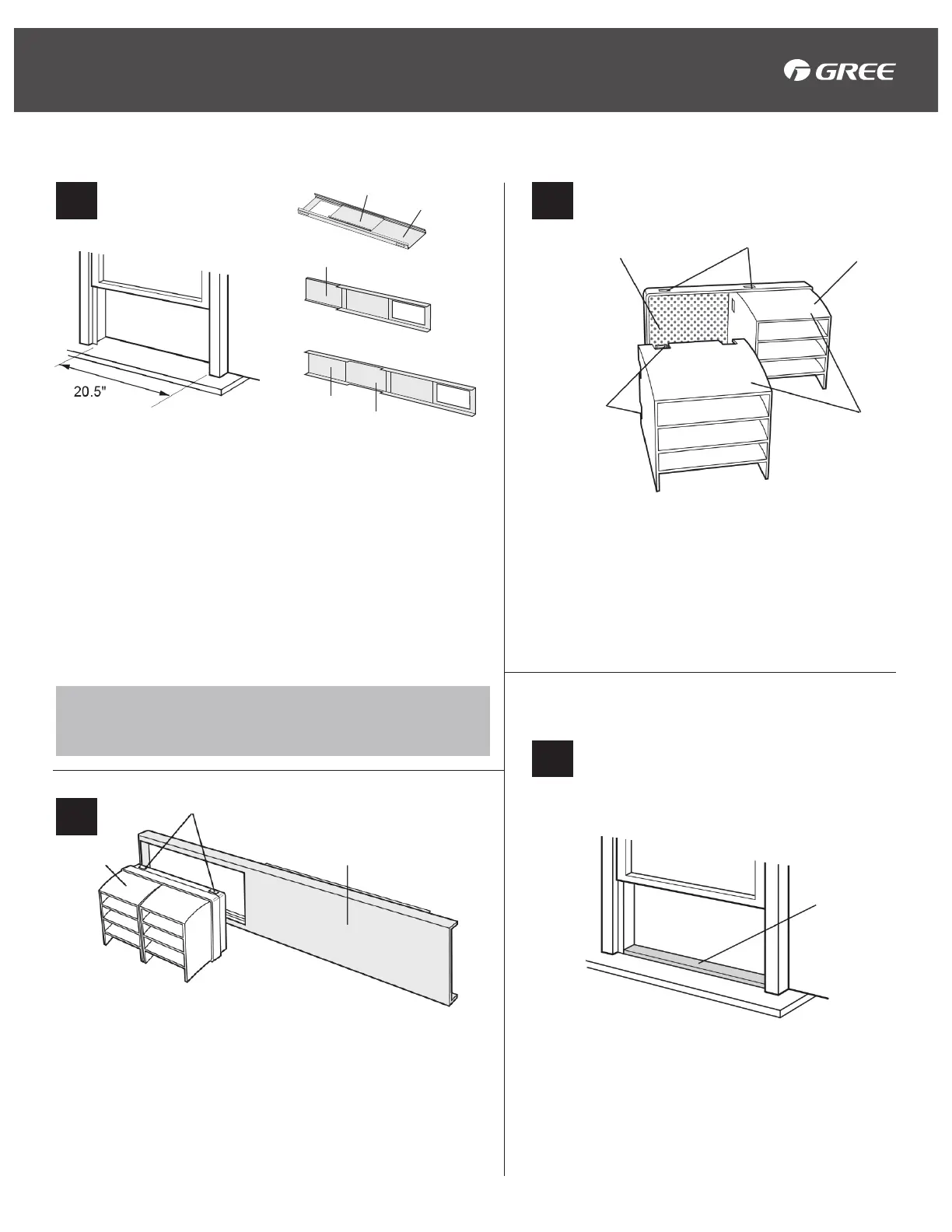

INSTALLATION INSTRUCTIONS
Vertical Double Hung Window
Attach the Guard Combination to the back side of
the
Window Panel. Push the Guard Combination
securely into the Window Panel to ensure that is
fits securely.
Note: Ensure TOP of Guard Combination faces up.
Guard Combination faces the outside
.
Tabs
Top
Window Panel
Guard Combination
1
3
Open the window and measure the width inside the
window frame.
A) For windows with inner width of 20.5" (52.07 cm)
B) For windows with inner widths over 20.5” (52.07
cm) up to 37.5” (95.2 cm) insert
Adjustment Panel
C) For windows with inner widths over 37.5”
(95.2 cm) up to 56.7” (144 cm) insert
Adjustment
Panel
and Extension Panel.
A
B
C
Extension panel
Adjustment panel
Adjustment panel
Window panel
Exhaust cover
Note: If Extension Panel or Adjustment Panel are
too long, use a Pencil and Saw to cut panels to fit
window frame.
2
