DC Inverter U-match Series Cassette Type Unit
10
(1). Install the hoisting stand on the hoisting screw by using nuts and gaskets at both the upper
and lower sides of the hoisting stand. To prevent the gasket from breaking off, a gasket
anchor board can be helpful.
(2). Install the paper template on the unit, and x the drain pipe at the outlet vent.
(3). Adjust the unit to the best position.
(4). Check if the unit is installed horizontally at four directions. If not, the water pump and the
oat switch would function improperly and even lead to water leakage.
(5). Remove the gasket anchor board and tighten the nut remained.
(6). Remove the paper template.
4.1.3 Installing the Suspension Bolts

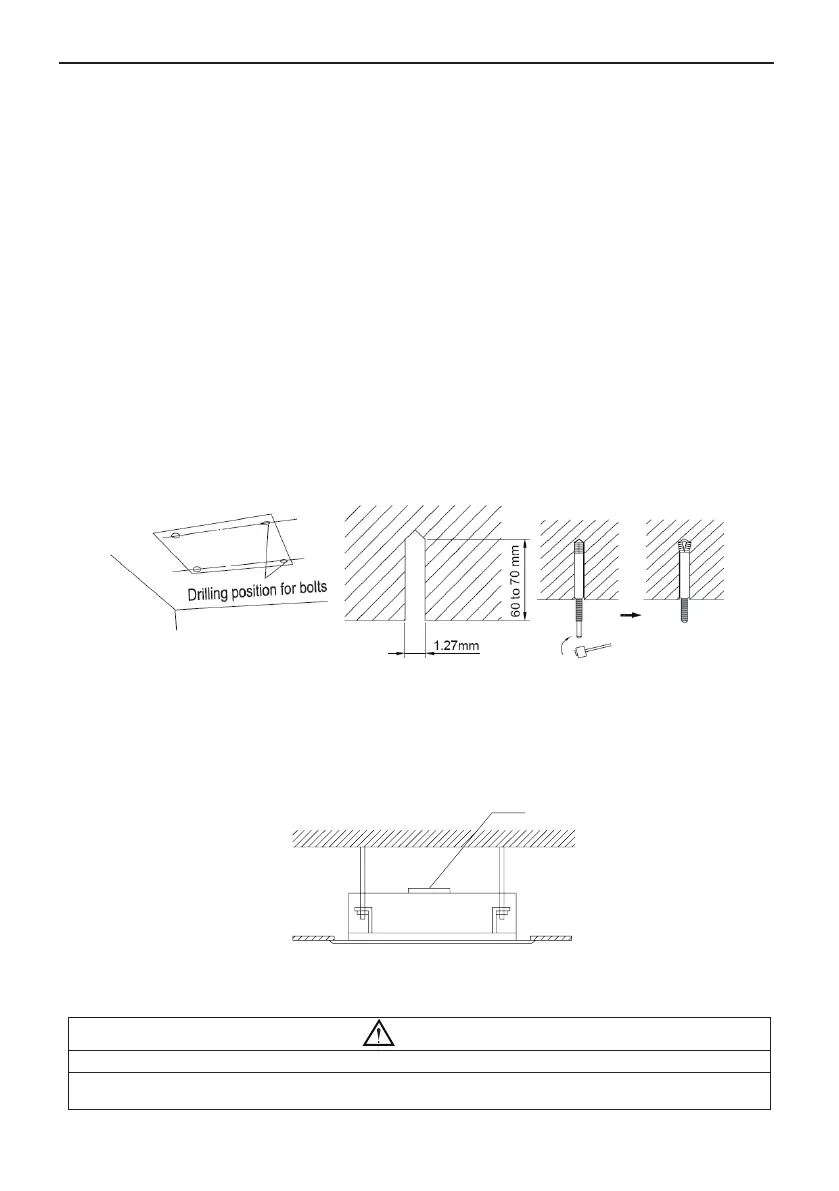

(1). Using the installation template, drill holes for bolts (four holes). (Fig. 6)
(2). Install the bolts to the ceiling at a place strong enough to hang the unit. Mark the bolt
positions from the installation template. With a concrete drill, drill for 12.7mm (1/2”)
diameter holes. (Fig.7)
(3). Insert the anchor bolts into the drilled holes, and drive the pins completely into the anchor
bolts with a hammer. (Fig.8)
Fig.6 Fig.7 Fig.8
4.1.4 Leveling
The water level test must be done after installing the indoor unit to make the unit is horizontal,
as shown below.
Horizontal tester
Fig.9
4.2 Installation of the Outdoor Unit
WARNING!
① .
Install the unit where it will not be tilted by more than 5°.
② .
During installation, if the outdoor unit has to be exposed to strong wind, it must be xed securely.
To Next Page
