GREE DC Inverter Multi VRF System II Service Manual
99
Name
Function introduction
PFC module
Four diodes and two MOS pipe are intergrated
inside the PFC module. It will transform AC
input power into DC power. Meanwhile, MOS
pipe is controlled by PWM wave. Pressure will
be increased by induction.

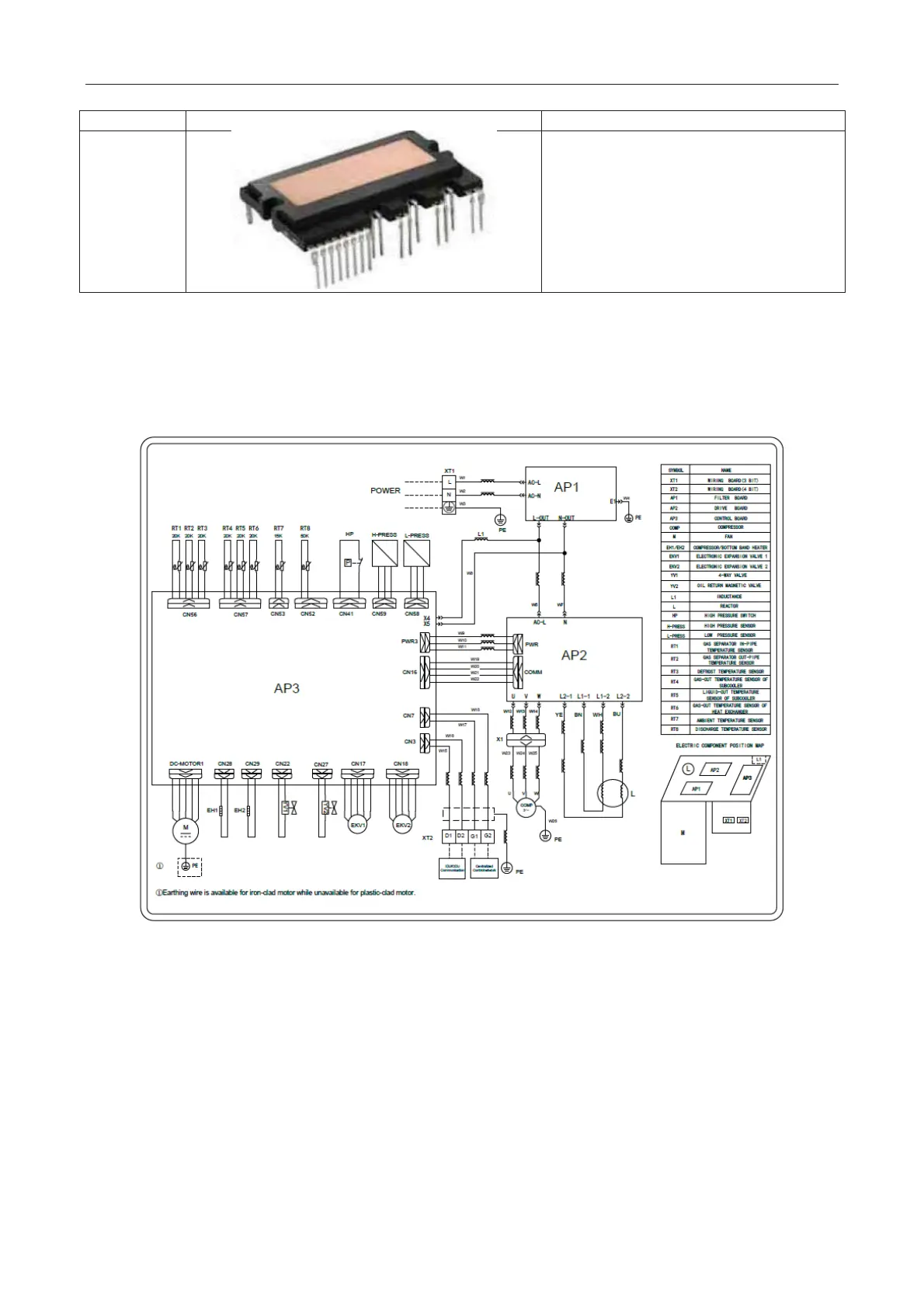

4.3 Circuit diagram
Circuit diagram of outdoor unit
(The following are for reference only, the circuit diagram can be found on the unit)
GMV-80WL/A-T, GMV-100WL/A-T ǃ GMV-121WL/A-T ǃ GMV-80WL/C-T, GMV-100WL/C-T ǃ
GMV-121WL/C-T
