GREE DC Inverter Multi VRF System II Service Manual
167
7) Model: GMV-H335WL/A-X,GMV-335WL/C-X

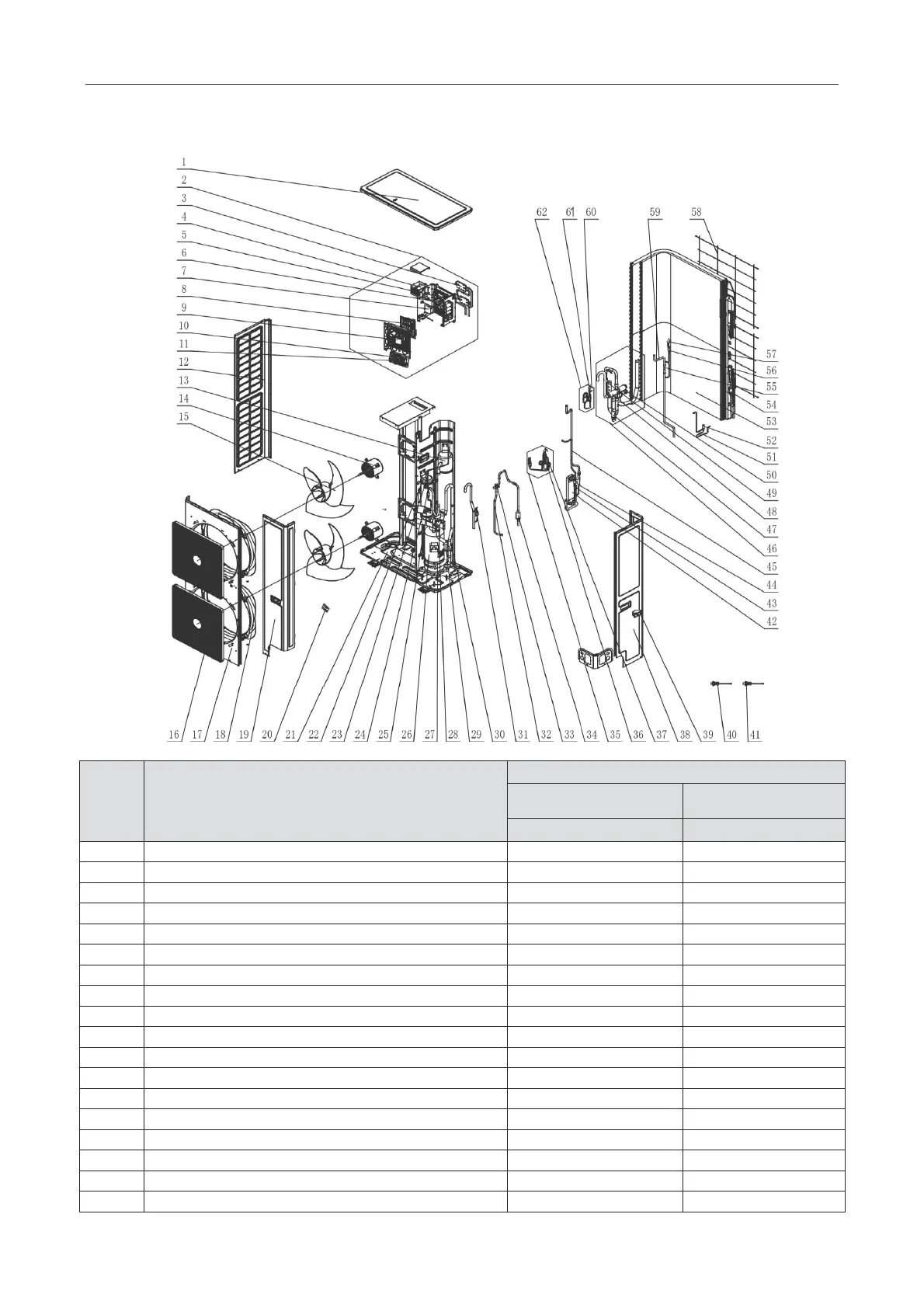

Exploded view
Parts list
NO.
Name of Part
GMV-H335WL/A-X,GMV-335WL/C-X
Product Code
CN850W0350
CN850W0500
Part Code
Quantity
1
Coping
01264100052P
1
2
Electric Box Assy
01394100496
1
3
Radiator
49018000083
2
4
Reactor
4313017401
1
5
Rectifier
46010604
1
6
Main Board
30223000072
1
7
Phase Reverse Protector
32214101
1
8
Filter Board
30223000025
1
9
Main Board
30226000066
1
10
Terminal Board
42011043
1
11
Terminal Board
42018000026
1
12
Left Side Plate
01314100090P
1
13
Gas-liquid Separator
07424100048
1
14
Brushless DC Motor
15704100010
2
15
Axial Flow Fan
10434100008
2
16
Front Grill
01574100008
2
17
Cabinet
01514100016P
1
18
Diversion Circle
10474100003
2
