Gree GMV-N22G/A4A-K User Manual

Multi Variable Air Conditioners Wall Mounted Type Indoor Unit
5
Material type
Total length of
communication line
between indoor unit
and wired controller L
(m)
Wire size
(mm
2
)
Material
standard
Remarks
Light/Ordinary
Polyvinyl
chloride
sheathed cord.
(60227 IEC 52
/60227 IEC 53)
L≤250
2×0.75~2×1.25
IEC
60227-5:200
7
Total length of communication line
can't exceed 250m.
The cord shall be Circular cord (the
cores shall be twisted together).
If unit is installed in places with
intense magnetic field or strong
interference, it is necessary to use
shielded wire.

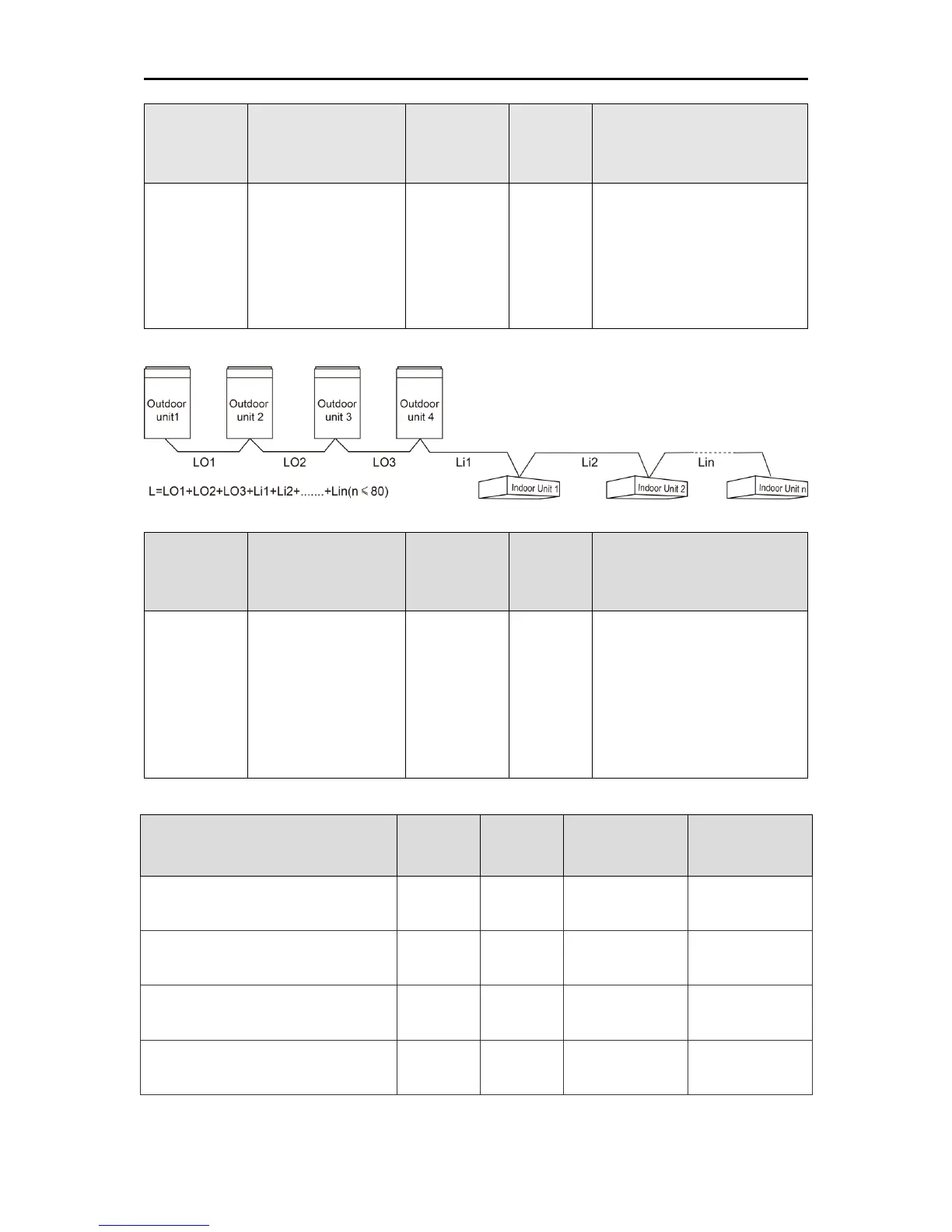

3.2.2 Select communication line for indoor unit and indoor unit (outdoor unit)
Fig 3.3.2
Material Type
Total Length L (m) of
Communication Cable
between Indoor Unit
and Indoor (Outdoor)
Unit
Wire size
(mm
2
)
Material
Standard
Remarks
Light/Ordinary
polyvinyl
chloride
sheathed cord.
(60227 IEC 52
/60227 IEC 53)
L≤1000
≥2×0.75
IEC
60227-5:200
7
1. If the wire diameter is enlarged
to 2 × 1 mm
2
, the total
communication line length can
reach 1500m.
2. The cord shall be Circular cord
(the cores shall be twisted
together).
3. If unit is installed in places with
intense magnetic field or strong
interference, it is necessary to use
shielded wire.
3.3 Wiring Requirements
Model
Power Cord
Size
Air Switch
apacity
(A)
Minimum
Sectional Area of
Ground Wire
Minimum
Sectional Area of
Power
Cord(mm
2
)
GMV-N22G/A3A-K, GMV-N22G/A2A-K
GMV-N22G/A4A-K, GMV-N22G/A8A-K
GMV-N22G/C9A-K
220-240V~
50Hz
6
1
1
GMV-N28G/A3A-K, GMV-N28G/A2A-K
GMV-N28G/A4A-K, GMV-N28G/A8A-K
GMV-N28G/C9A-K
220-240V~
50Hz
6
1
1
GMV-N36G/A3A-K, GMV-N36G/A2A-K
GMV-N36G/A4A-K, GMV-N36G/A8A-K
GMV-N36G/C9A-K
220-240V~
50Hz
6
1
1
GMV-N45G/A3A-K, GMV-N45G/A2A-K
GMV-N45G/A4A-K, GMV-N45G/A8A-K
GMV-N45G/C9A-K
220-240V~
50Hz
6
1
1
