Gree GMV-ND22PLS/A-T User Manual

Multi Variable Air Conditioners Duct Type Indoor Unit
16
No.
Name
No.
Name
1
Return Air Duct
6
Transition Pipe
2
Canvas Duct
7
Supply Air Duct
3
Return Air Blinds
8
Diffuser
4
Hanger Rod
9
Diffuser Connector
5
Supply Air Outlet

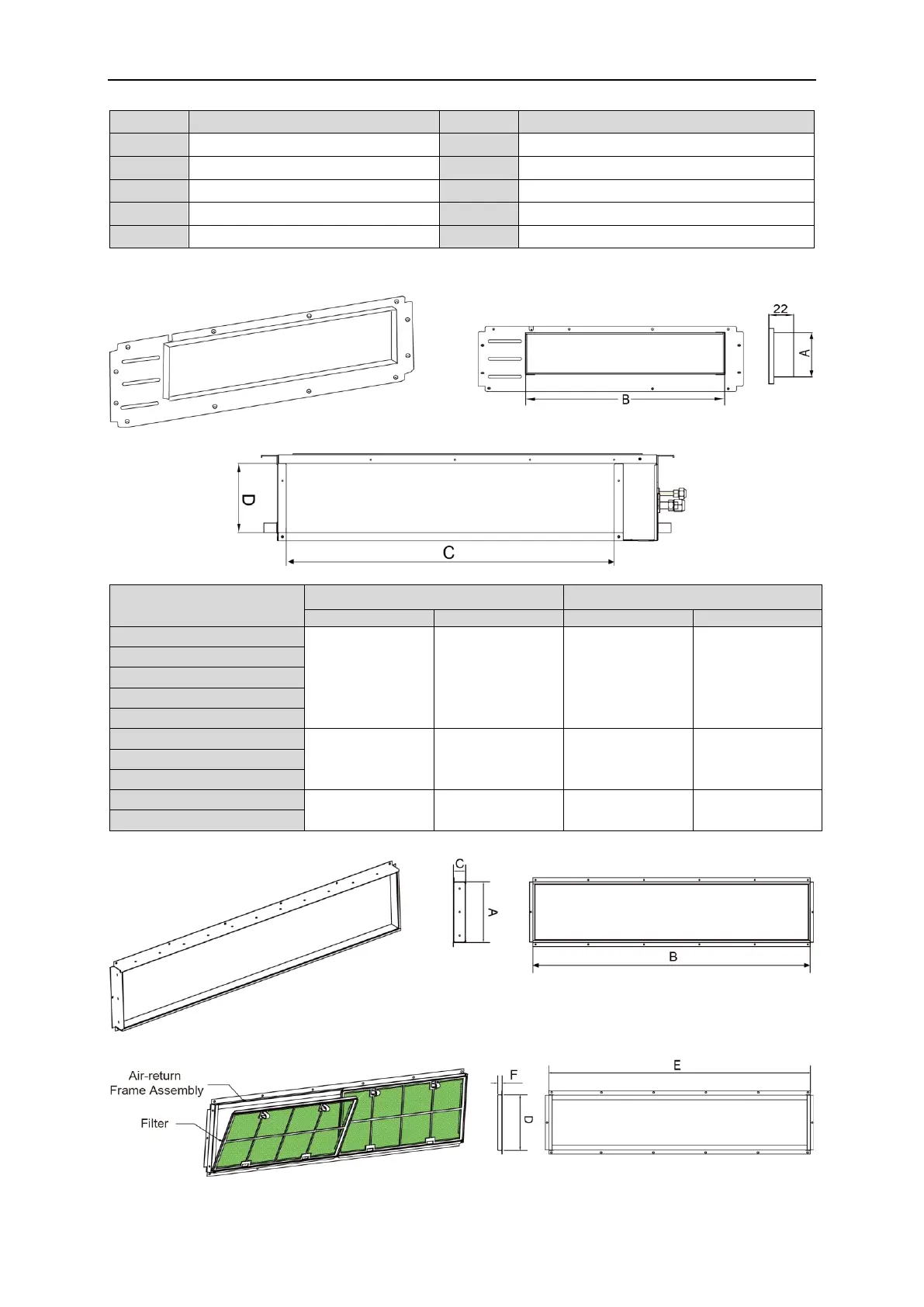

4.4.2 Shape and Size of Air Outlet and Air-return Opening
(1) Range of Capacity 2.2~6.3kW
Fig 4.4.3 Air Outlet
Fig 4.4.4 Air-return Opening
Model
Size of Air Outlet
Size of Air-return Opening
A
B
C
D
GMV-ND22PLS/A-T
121
528
580
161
GMV-ND25PLS/A-T
GMV-ND28PLS/A-T
GMV-ND32PLS/A-T
GMV-ND36PLS/A-T
GMV-ND40PLS/A-T
121
728
780
161
GMV-ND45PLS/A-T
GMV-ND50PLS/A-T
GMV-ND56PLS/A-T
121
928
980
161
GMV-ND63PLS/A-T
(2) Range of Capacity 7.1~14kW
Fig 4.4.5 Air Outlet
Fig 4.4.6 Air-return Opening
