Gree GMV-ND36T/B-T User Manual

Multi Variable Air Conditioners Cassette Type Indoor Unit
4
Filter Cleaning Reminding
Function
I Feel
Light Function
Swing
Note!
① √: included, X: not included.
② Please refer to the user manual of Wired Controller or Remote Controller for function details.

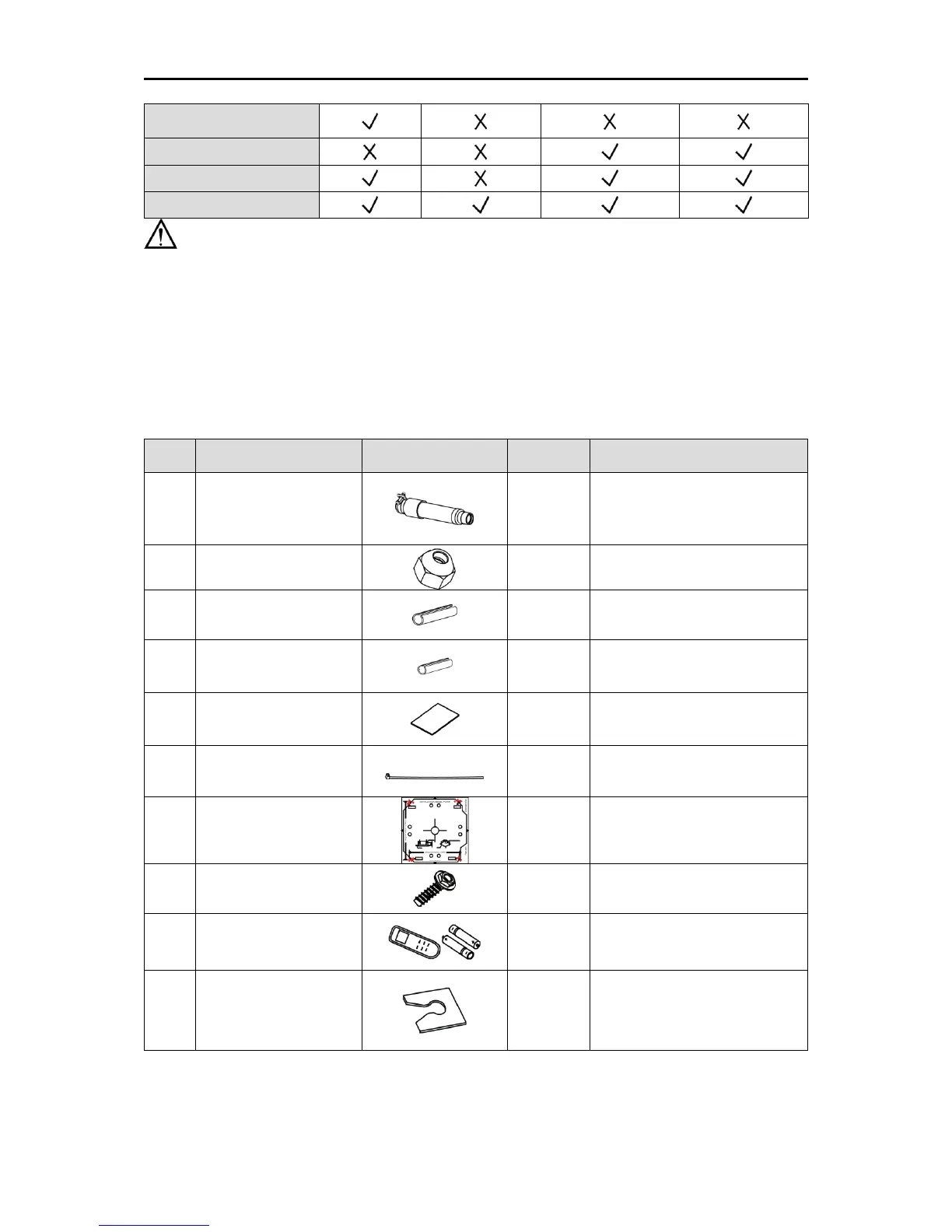

3 Preparations for Installation
Note: this picture is for reference only, please refer to the actual product; the unit of dimension
is mm.
3.1 Standard Fittings
Please use the supplied standard fittings listed below as instructed.
No.
Name
Appearance
Q'ty
Usage
1
Drainage hose assembly
1
To connect the drainage pipe
2
Special Nut
1
To be used for connecting the
refrigerant pipe
3
Insulation
1
To insulate the gas pipe
4
Insulation
1
To insulate the liquid pipe
5
Sponge
2
To insulate the drain pipe
6
Fastener
4
To fasten the sponge
7
paper pattern for
installation
1
Locate the drill hole on ceiling
8
Tapping screw with
washer
4
Fix paper pattern
9
Remote controller
1+2
To control the indoor unit
10
Washer fixing plate
4
Prevent the washer from falling
off
3.2 Installation Position Selection
(1) The location should be able to withstand the weight of unit.
(2) The water can be drained conveniently from drainage pipe.
