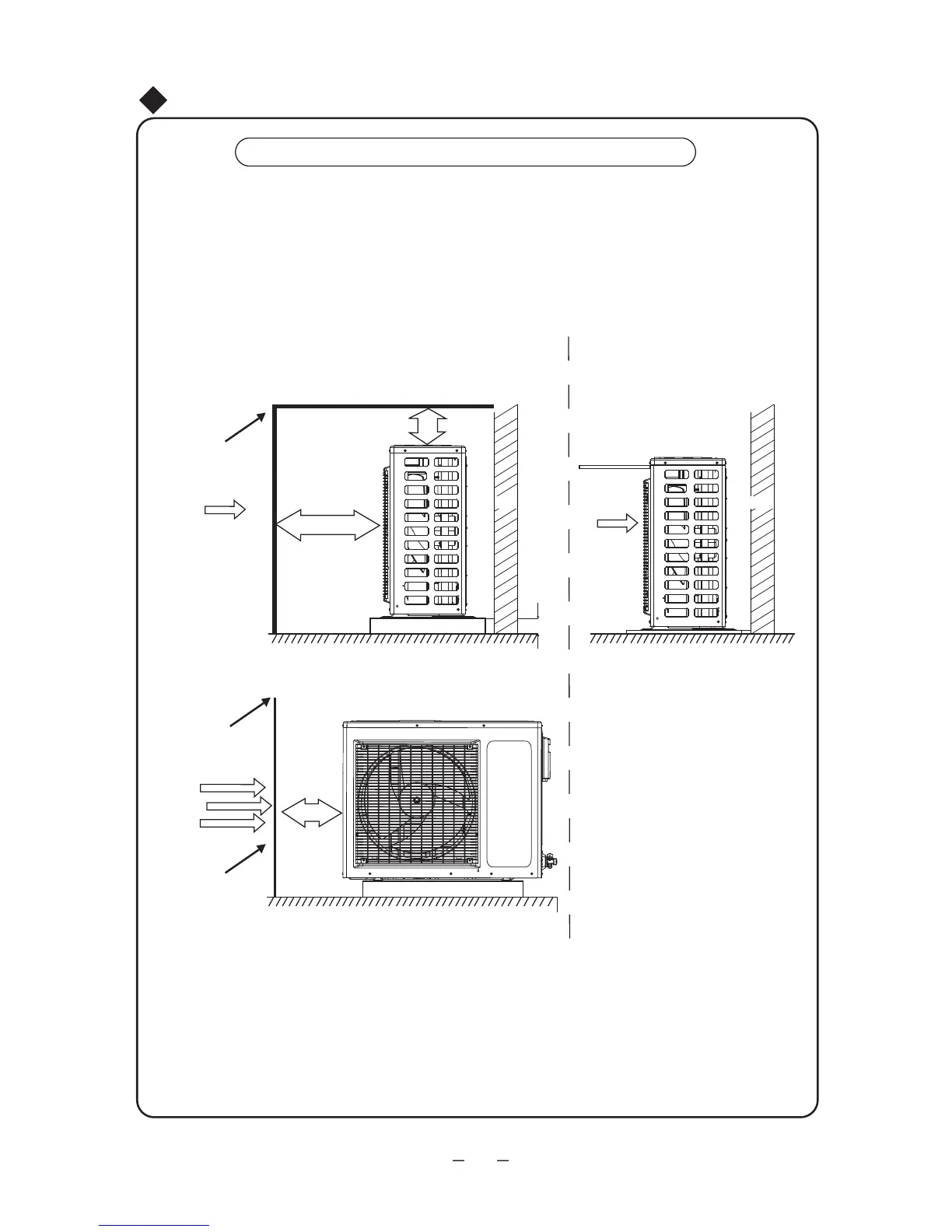

Installation method of snow guard
Install snow guard
(Optional)
25
Height of base in consideration of snow
(More than 50cm)
More than 50cm
seasonal
(Provide at field)
wind
In consideration of snow during installation of outdoor units
Correct Incorrect
Note: It is required to equip snow guard and a higher foundation base to
prevent snow from covering air inlet and outlet.
Snow guard
Snow guard
(Install in
windward side)
seasonal
wind
Windward side
Height of base in consideration of snow
(More than 50cm)
50cm Above
20cm
Above
100cm Above
The snow guard shall
be wider than the
air conditioner.
The snow guard shall
be wider than the
air conditioner.
WALL
WALL
