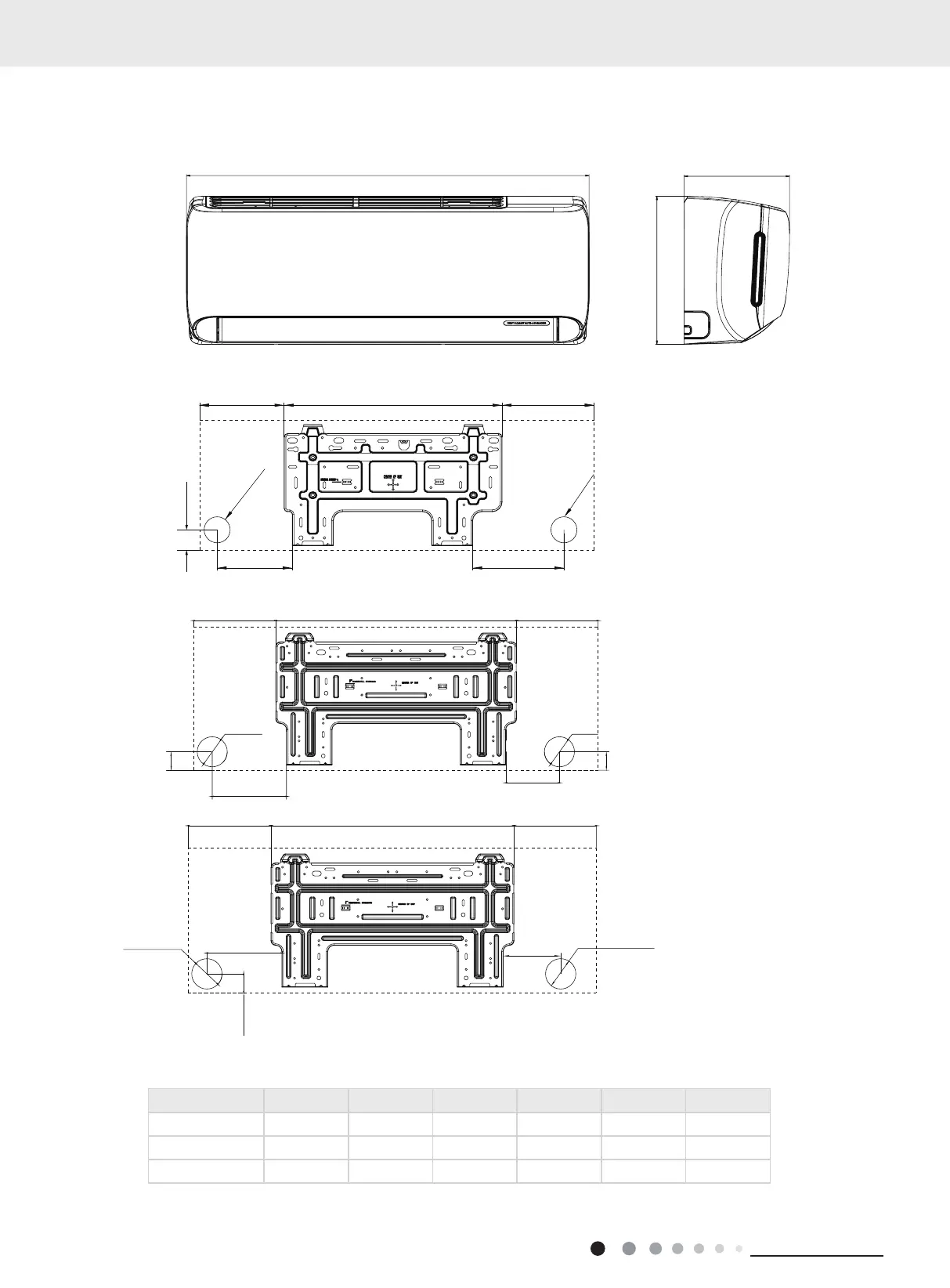

3. Outline Dimension Diagram
3.1 Indoor Unit
Model W H D W1 W2 W3
ATC 32 7/8 10 53/64 7 7/8 7 3/64 18 5/32 7 11/16
ATD 37 1/8 13 7/64 9 11/16 7 35/64 22 3/32 7 31/64
ATE 42 7/16 13 7/64 9 11/16 10 3/16 22 3/32 10 5/32
Unit:inch
Unit:inch
W
W1 W2 W3
ATA / ATB
D
H
6 52/64
W1 W2 W3
ATE
9 29/64
Ø2 49/64
Ø2 49/64 Ø2 49/64
8 7/64
1 11/16
1 11/16 1 11/16
Ø2 49/64
W1 W2 W3
ATD
5 7/16
W
W1 W2 W3
ATA / ATB
D
H
6 52/64
W1 W2 W3
ATE
9 29/64
Ø2 49/64
Ø2 49/64 Ø2 49/64
8 7/64
1 11/16
1 11/16 1 11/16
Ø2 49/64
W1 W2 W3
ATD
5 7/16
W
W1 W2 W3
ATA / ATB
D
H
6 17/64
1 11/16
7 3/4
Ø21 11/64
Ø21 11/64
Ø2 11/64
Ø2 11/64
W2 W3W1
2 61/64
2 61/64
ATC
