51
Installation and Maintenance
Service Manual

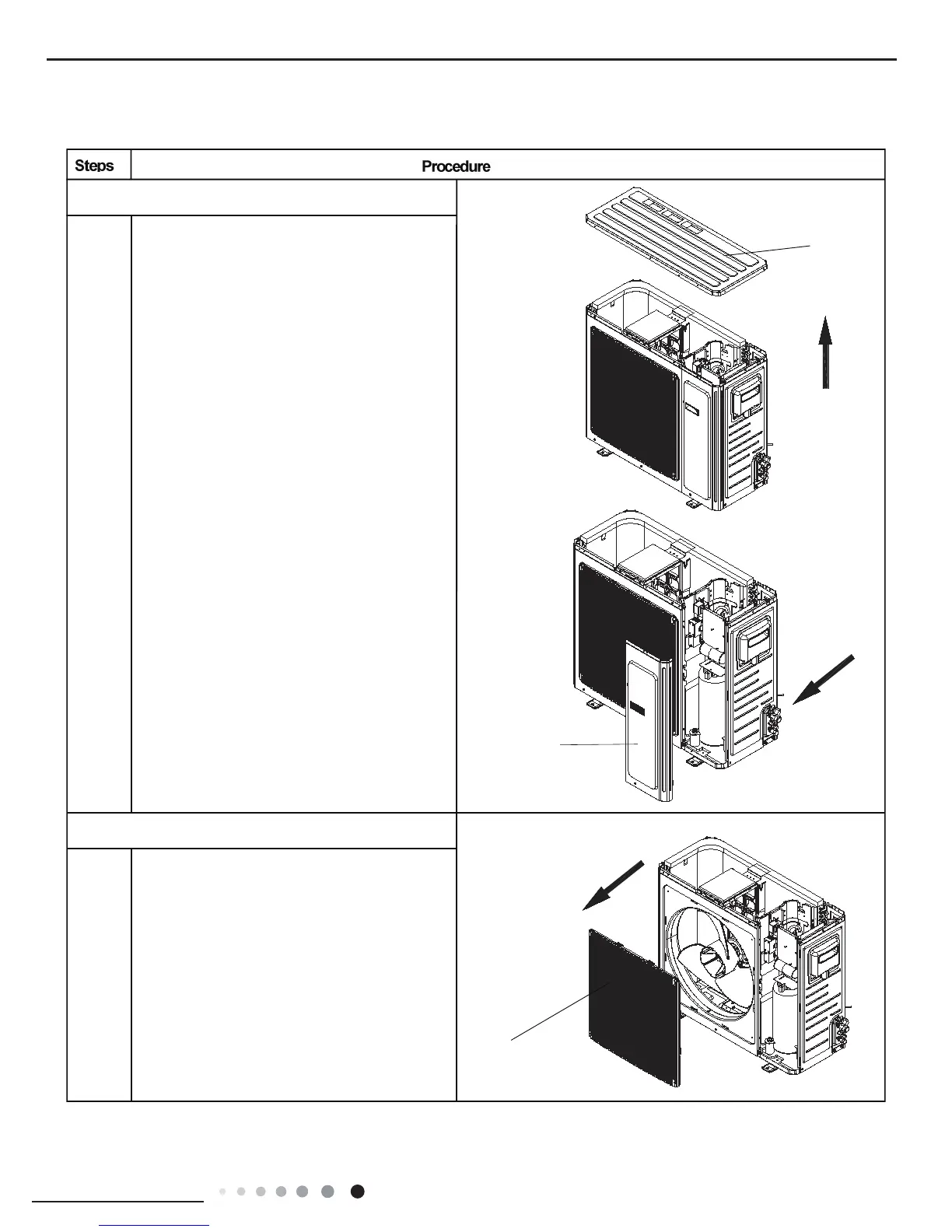

11.2 Removal Procedure of Outdoor Unit
b
a
1.Remove top cover and front side plate
Remove the screws connecting the top cover with
the front panel, the left side plate and the right side
plate. Remove the top cover.
Remove the screws connecting the front panel with
the front case and the chassis. Remove the front
side plate.
a
Remove the screws connecting the front grille and
the front panel.Remove the front grille.
2.Remove front grille and front panel
front side plate
top cover
front grille
To Next Page
