56
Installation and Maintenance
Service Manual

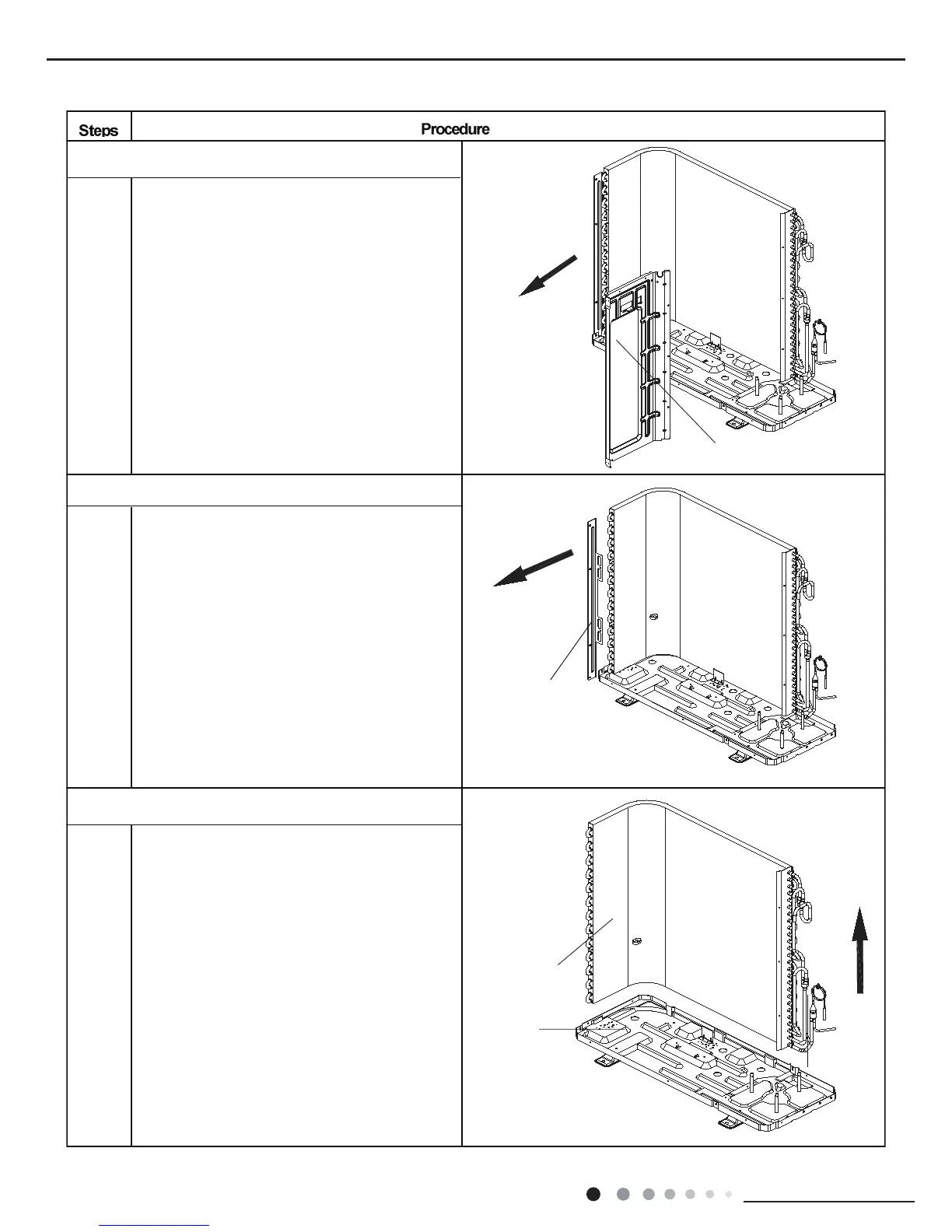

Remove the screws connecting the isolation sheet
with the side board of condenser subassembly and
the chassis. Remove the isolation sheet.
Remove the screws connecting the support plate
(condenser) and the condenser subassembly.
Remove the support plate (condenser).
Remove the screw connecting the condenser and
the chassis. Raise the condenser to remove it.
15.Remove support plate (condenser)
14.Remove the isolation sheet
16.Remove the condenser
isolation sheet
support plate
condenser
chassis
To Next Page
