11.2 Removal Procedure of Outdoor Unit
Warning: Be sure to wait for a minimum of 20 minutes after
turning off all power supplies and discharge the refrigerant
completely before removal.
09K
ProcedureSteps

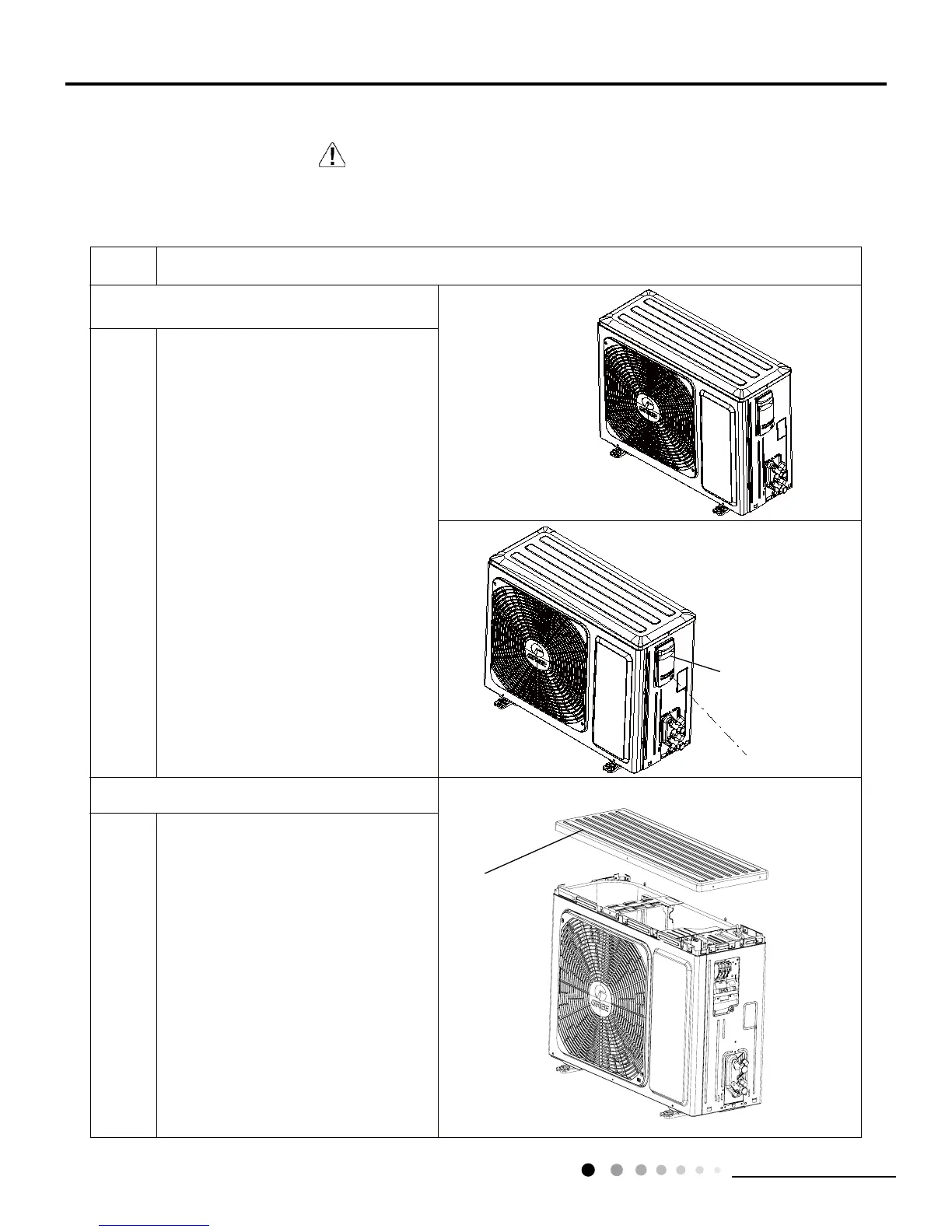

1.Remove handle
2. Remove top cover
top cover
Before disassamble.
Remove 1 connection screw fixing
handleand then removethe handle.
Remove 3 connection screws among
top cover plate, front panel and right
sideplate. Then remove top cover
plate.
handle
screw
