6. Function and Control

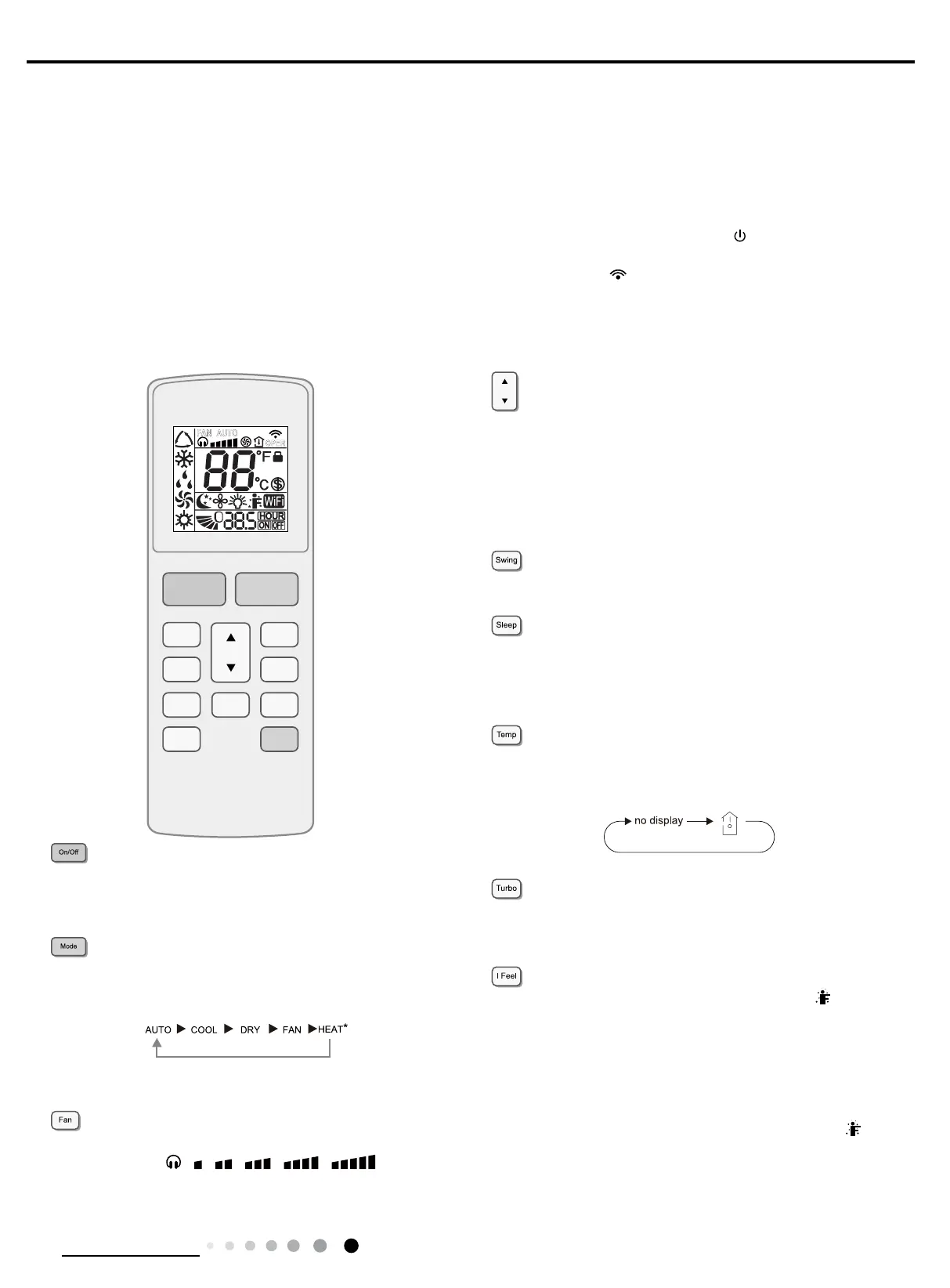

6.1 Remote Controller Introduction
FAN
AUTO
OPER
Fan Swing
ModeOn/Off
Sleep Temp
Turbo
X-Fan Light
Timer I Feel
Notice:
1.This is a general use remote controller. It could be used for the air conditioner with multifunction. For the functions which the
model doesn't have, if press the corresponding button on the remote controller, the unit will keep the original running status.
2.After putting through the power, the air conditioner will give out a sound. Operation indicator " " is ON (red indicator,
the colour is different for different models). After that, you can operate the air condition-er by using remote controller.
3.Under on status, pressing the button on the remote controller, the signal icon " " on the display of remote controller will
blink once and the air condition-er will give out a “ di ” sound, which means the signal has been sent to the air conditioner.
4.Under off status, set temperature and clock icon will be displayed on the display of remote controller (If timer on, timer off
and light functions are set, the corresponding icons will be displayed on the display of remote controller at the same time);
Under on status, the display will show the corresponding set function icons.
button
Press "▲" or "▼" button to increase / decrease set temperature.
Under auto mode, temperature can be displayed;
Under auto mode, set temperature can be adjusted.
When setting TIMER ON or TIMER OFF, press "▲" or "▼"
button to adjust the time.
button
Press this button to set up & down swing angle.
button
Under Cool or Heat mode, press this button to turn on Sleep
function. Press this button again to cancel Sleep function. Under
Fan , Auto and Dry modes, this function is unavailable.
button
Press this button, you can see indoor set temperature, indoor
ambient temperature on indoor unit' s display. The setting on
remote controller is selected circularly as below:
button
Under COOL or HEAT mode, press this button to activate /
deactivate the Turbo function.
button
Press this button to start I FEEL function and " " wi ll be
displayed on the remote controller.
After this function is set, the remote controller will send the
detected ambient temperature to the controller and the unit will
automatically adjust the indoor temperature according to the
detected temperature.
Press this button again to close I FEEL function and " " will
disappear. When I FEEL function is turned on, the remote
controller should be put within the area where indoor unit can
receive the signal sent by the remote controller.
button
Press this button to turn on the unit. Press this button again to
turn off the unit.
button
Each time you press this button, a mode is selected in a
sequence that goes from AUTO, COOL, DRY, FAN, and HEAT *,
as the following:
*Note: Only for models with heating function.
button
This button is used for setting Fan Speed in the sequence that
goes from AUTO, , , , , , , then back
to Auto.
*Note: Fan speed under dry mode is low speed.
