Installation and Maintenance
Service Manual

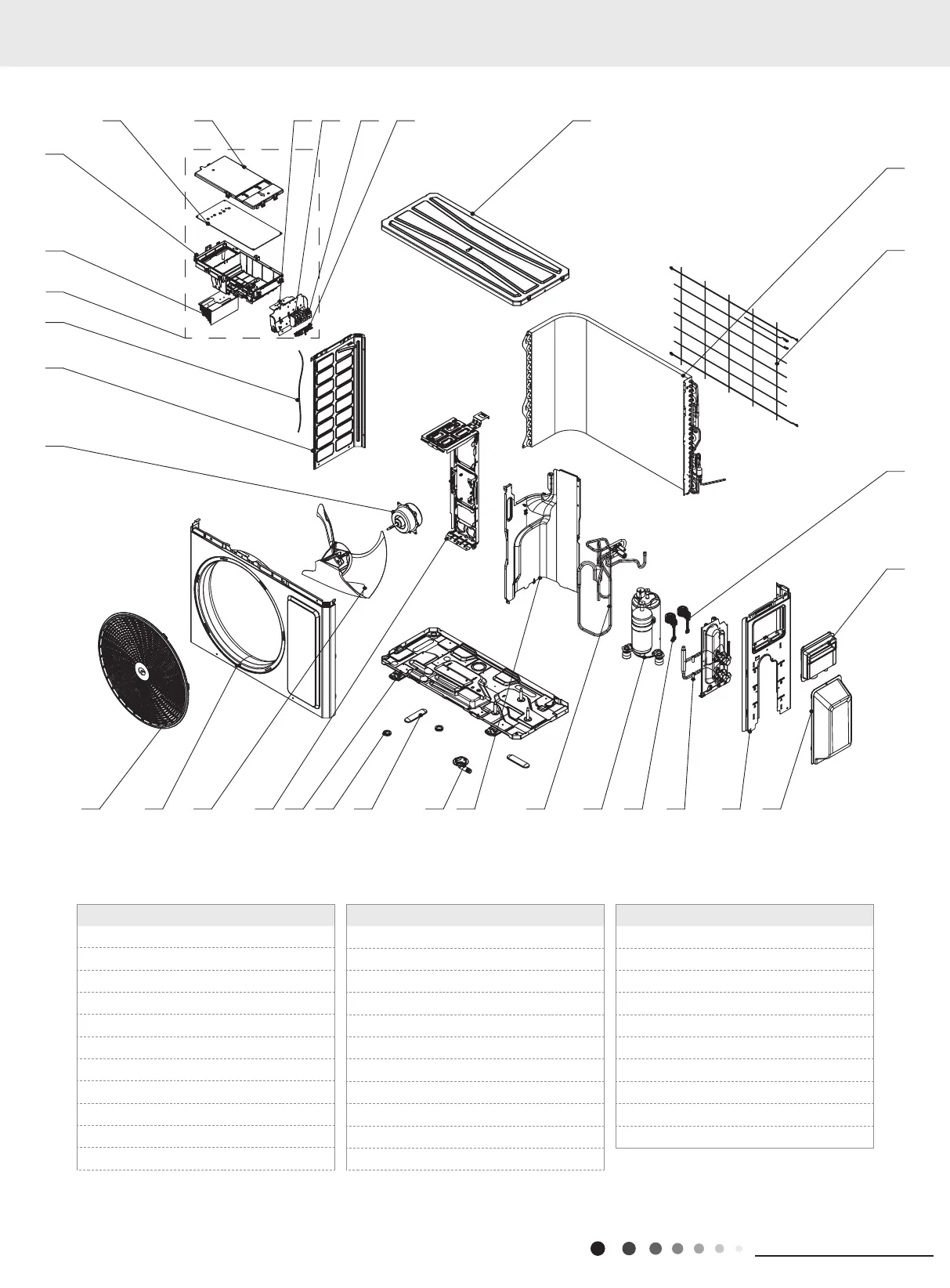

10. Exploded View and Parts List
26
27
28
29
30
31
32
123465789 10 11 12 13 14 15
16
17
18
19
202122232425
GWHD(14)NK6OO(LC)(LH) GWHD(18)NK6OO(LC)(LH)
The component is only for rererence; please refer to the actual product.
Some models may not contain some parts, please refer to the actual product.
NO. Description
1 Front Grill
2 Cabinet Assy
3 Axial Flow Fan
4 Motor Support Sub-Assy
5 Chassis Sub-assy
6 Drainage hole Cap
7 Drainage hole Cap
8 Drainage Connecter
9 Clapboard
10 4-Way Valve Assy
11 Compressor and Fittings
NO. Description
12 Electric Expansion Valve Coil
13 Valve Support Assy
14 Right Side Plate
15 Valve Cover
16 Cable Cross Plate
17 Electric Expansion Valve Coil
18 Rear Grill
19 Condenser Assy
20 Top Cover Plate Assy
21 Wire Clamp
22 Terminal Board
NO. Description
23 Terminal Board
24 Terminal Board Support Assy
25 Electric Box cover
26 Main Board
27 Electric Box
28 Radiator
29 Electric Box Assy
30 Connecting Cable
31 Left Side Plate
32 Fan Motor
