40
Technical Information
Service Manual
No. Name
1 Terminal of compressor
2 Terminal of electronic expansion valve A
3 Terminal of gas-liquid valve temperature Sensor A
4 Terminal of gas-liquid valve temperature Sensor B
5 Terminal of electronic expansion valve B
6 Overload protection terminal of compressor
7 Terminal of temperature Sensor
No. Name
8 Terminal of outdoor fan
9 Terminal of 4-way valve
10 Electric heating terminal of chassis
11 Terminal of live wire
12 Terminal of grounding wire
13 Terminal of communication wire
14 Terminal of neutral wire
5. Electrical Part
GWHD(14)NK6OO(LC)(LH) GWHD(14)NK6OO(LC)
GWHD(18)NK6OO(LC)(LH) GWHD(18)NK6OO(LC)
1 2 5 6 7 8 9
10
11
12
13
14
3 4

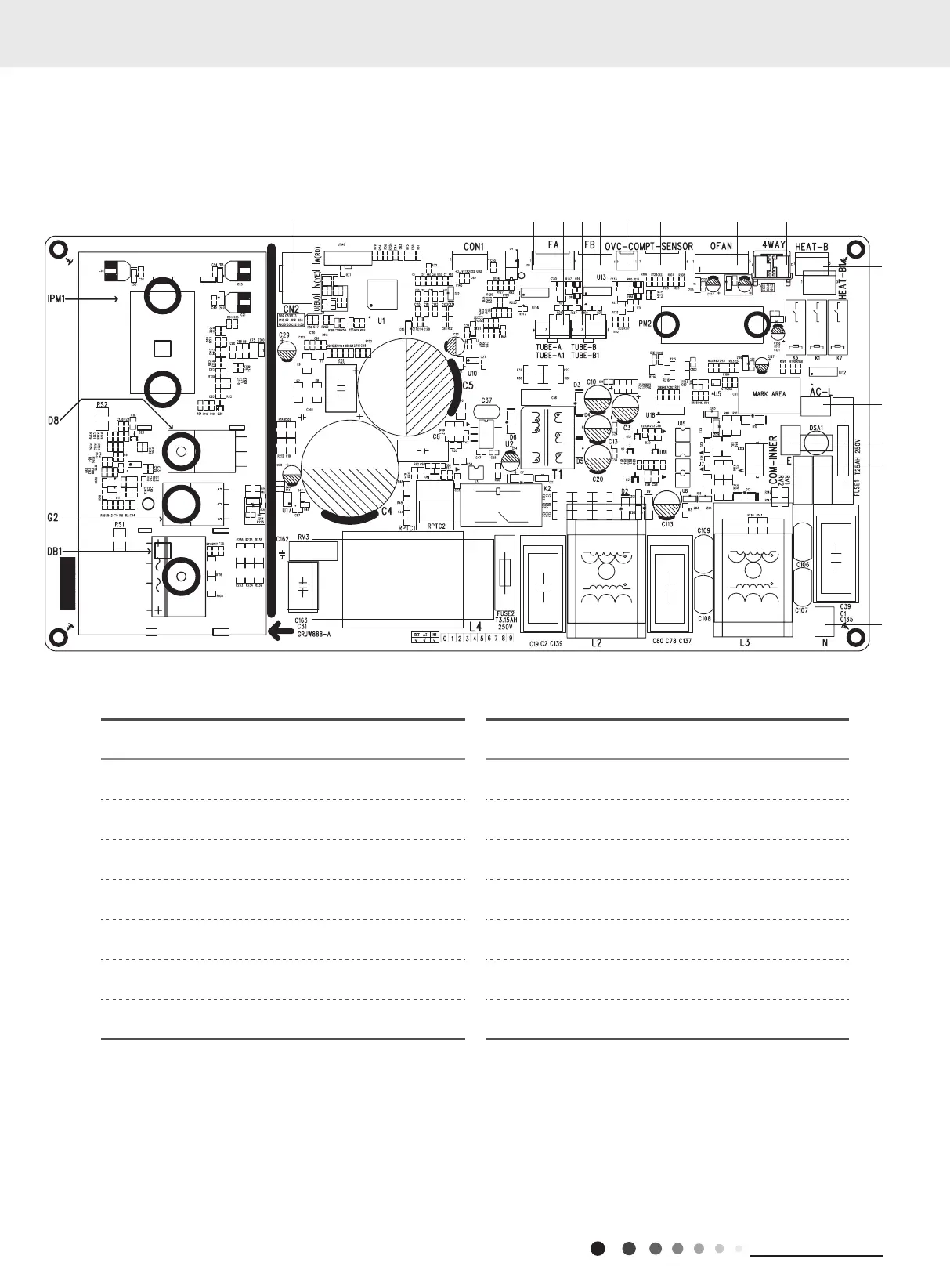

5.2 PCB Printed Diagram
