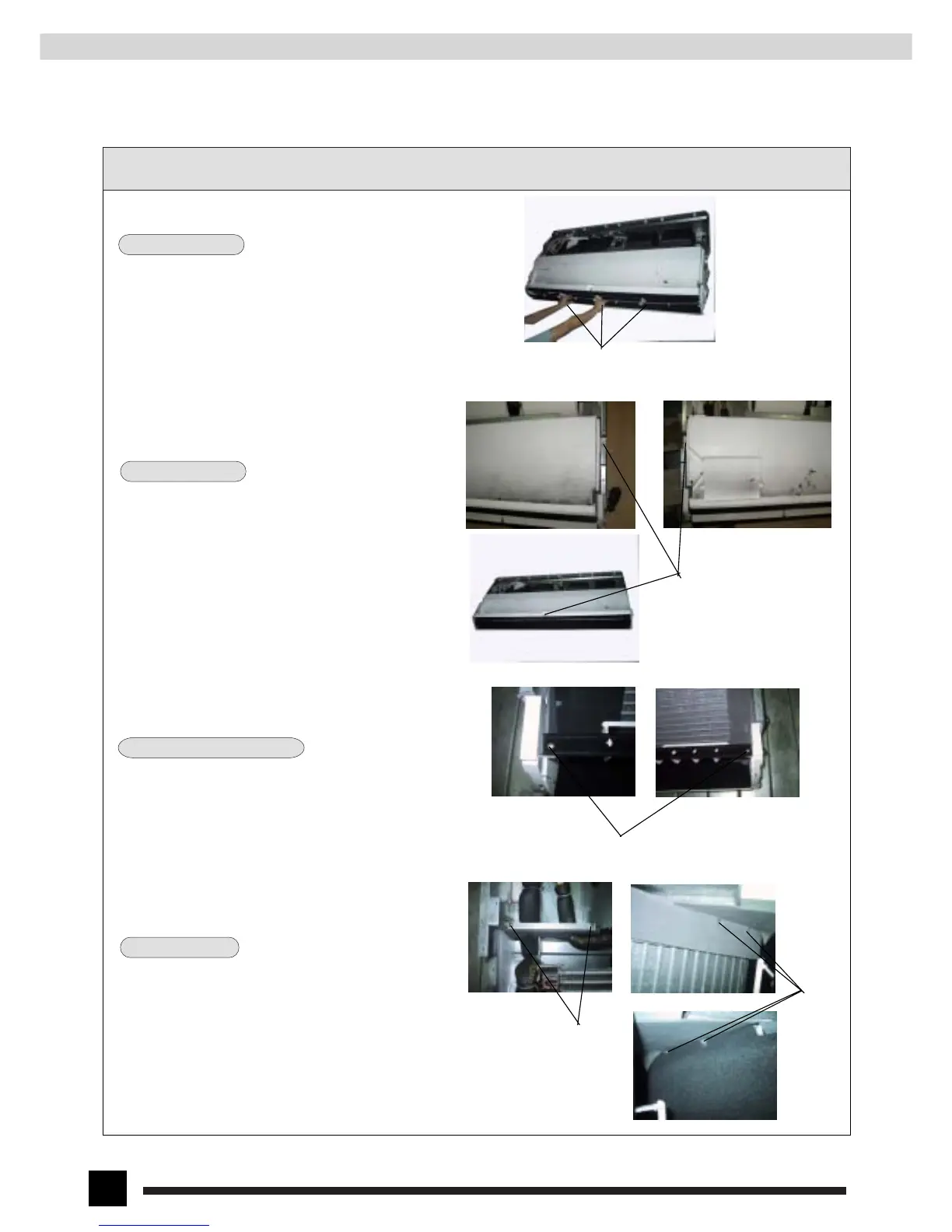

Dissassembly Procedures/ Photoes
Fig.
Assorted position of guide louver and guide louver holder
Fig.
Fig.
Fig.
3pcs bolt
Fig.
Fig.
Bolts
Fig.
Bolt
Bolts
Bolts
Fig.
Disassemble the guide louver assy
Take out the guide louver from
the guide louver holder, then
take out the both ends from
the swing motor.
Disassemble the water-tray assy
To screw off 3pcs bolts in the photoes
can disassemble the water-tray assy.
Disassemble swing louver and holder assy
Firstly to screw off 2pcs bolts at two ends
of the swing louver holder assy by screw-
driver, then take out the swing louver holder
assy from the guide louver holder by hands.
Disassemble evaporator assy
a. Screw off 2pcs bolt as shown in
Fig.8-14 with screwdriver, then take
out the evaporator outlet pipe block
assy;
b. Screw off the bolts as shown
in Fig.8-15 and Fig.8-16, take off
the evaporator assy, please handle
with care.
