Wired Controller XK55
8
Please pay attention to below items:
(1). Please disconnect the power support for indoor unit before installation. The
power must be disconnected during the whole installation process.
(2). Pull out the 2-core dual twisted pair wire from the installation hole on wall and
then pull it through the wiring hole at the back of soleplate plate of wired controller.
(3). Stick the soleplate on the wall and then use screw M4X25 to fix sole plate
and installation hole on the wall together.
(4). Connect the two-core twisted pair wire to H1 and H2 wiring terminal and then
tighten screws.
(5). Finally, bind the panel of wired controller and sole plate of wired controller
together.
1.5 Disassembly

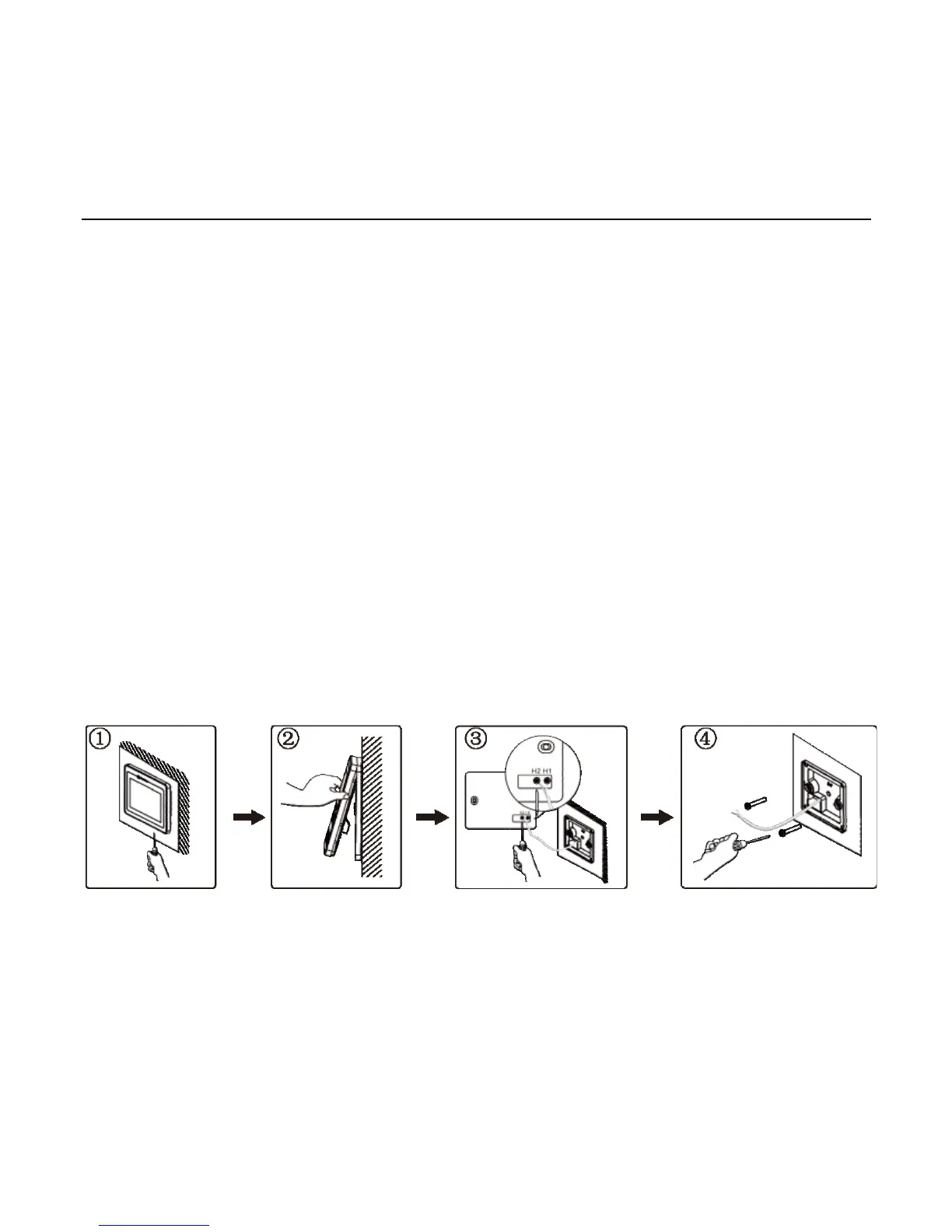

Fig 1.9 Disassembly sketch map of wired controller
