Wired Controller XK75 Owner's Manual
23
4.2 Installation Requirements
(1) Prohibit installing the wired controller at wet places.
(2) Prohibit installing the wired controller at the places with direct sunshine.
(3) Prohibit installing the wired controller at the place near high temperature
objects or water-splashing places.
4.3 Installation Methods

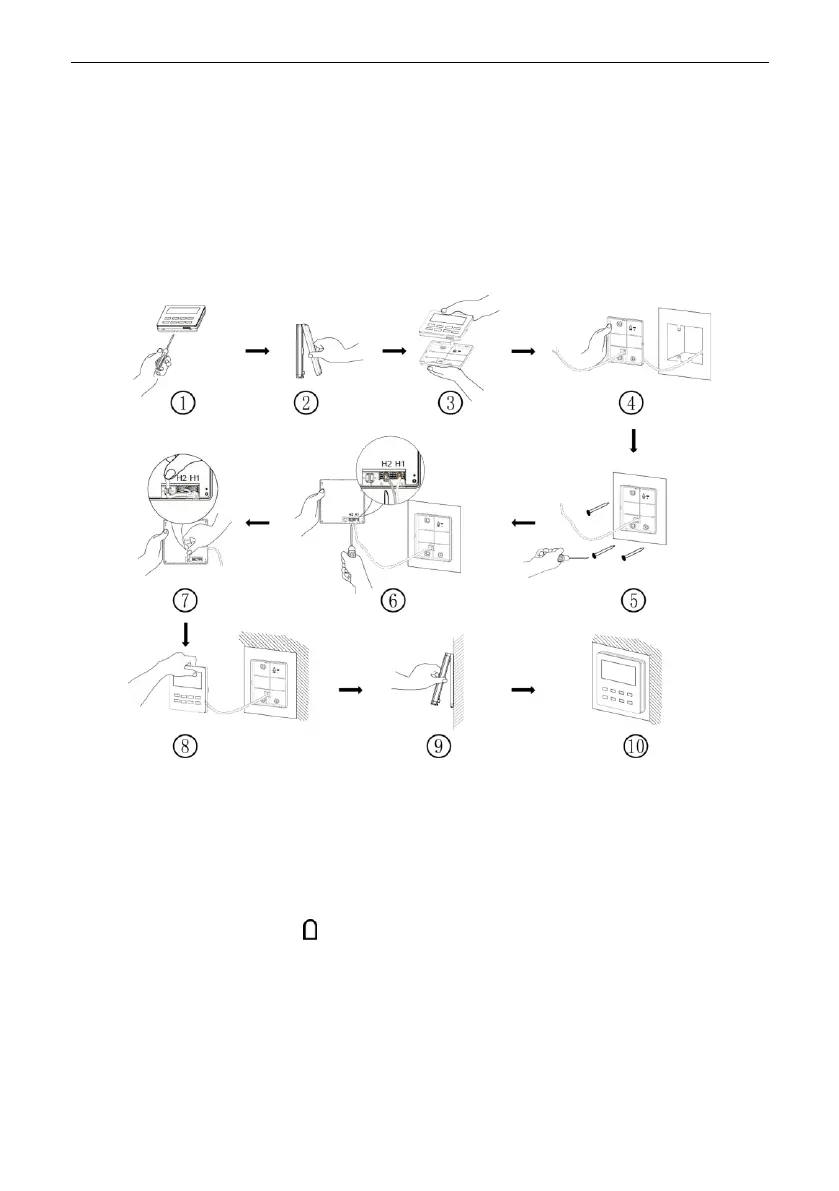

Fig. 23 Installation diagram for wired controller
Fig. 23 is the simple installation process of wired controller; please pay attention to
the following items:
(1) Before installation, please cut off the power for indoor unit;
(2) Pull out the 2-core twisted pair wire from the installation hole on wall, and pull
this wire through the “ ” hole at the rear side of the soleplate of wired controller;
(3) Stick the soleplate of wired controller on the wall and then use screw M4×25 to
fix soleplate and installation hole on wall together;
(4) Connect two-core twisted pair wire to H1 and H2 wiring column and then fix the
screws. (it is needn’t to differentiate polarity. )
(5) Block the two-core wire into the groove at the left side of wiring column; bundle
the front panel of wired controller to its soleplate.
