ASSEMBLY INSTRUCTION
W A R N I N G
• Replace the battery pack or charger immediately if the battery case or charger cord is
damaged.
• Always make sure the string trimmer switch is OFF before inserting or removing the
battery pack.
• Always make sure the battery pack is removed and the switch turned OFF, before
inspecting, adjusting, or maintaining any other part of the hedge trimmer.
• Read, understand, and follow the Battery Charger instructions.
GUARD (
See Figure 2.)
To avoid injury, always remove the battery pack before installing the guard, changing a cutting
line, or making any adjustments.
If the guard is damaged, do not use the grass trimmer/edger until it is replaced.
NOTE: Install the protective guard before operating the grass trimmer/edger trimmer. It cannot be
removed or disassembled.
1. Remove the battery pack.
2. Invert the grass trimmer/edger to access the trimmer head.
3. Using a Phillips head screwdriver, remove the pre-installed screw (1) from the trimmer head.
4. Place the guard (2) on to the trimmer head and turn the guard 45° following the track on the
head.
5. Align the screw hole on the guard with the screw hole on the trimmer head.
6. Insert the screw into the trimmer head, fastening the guard in place.

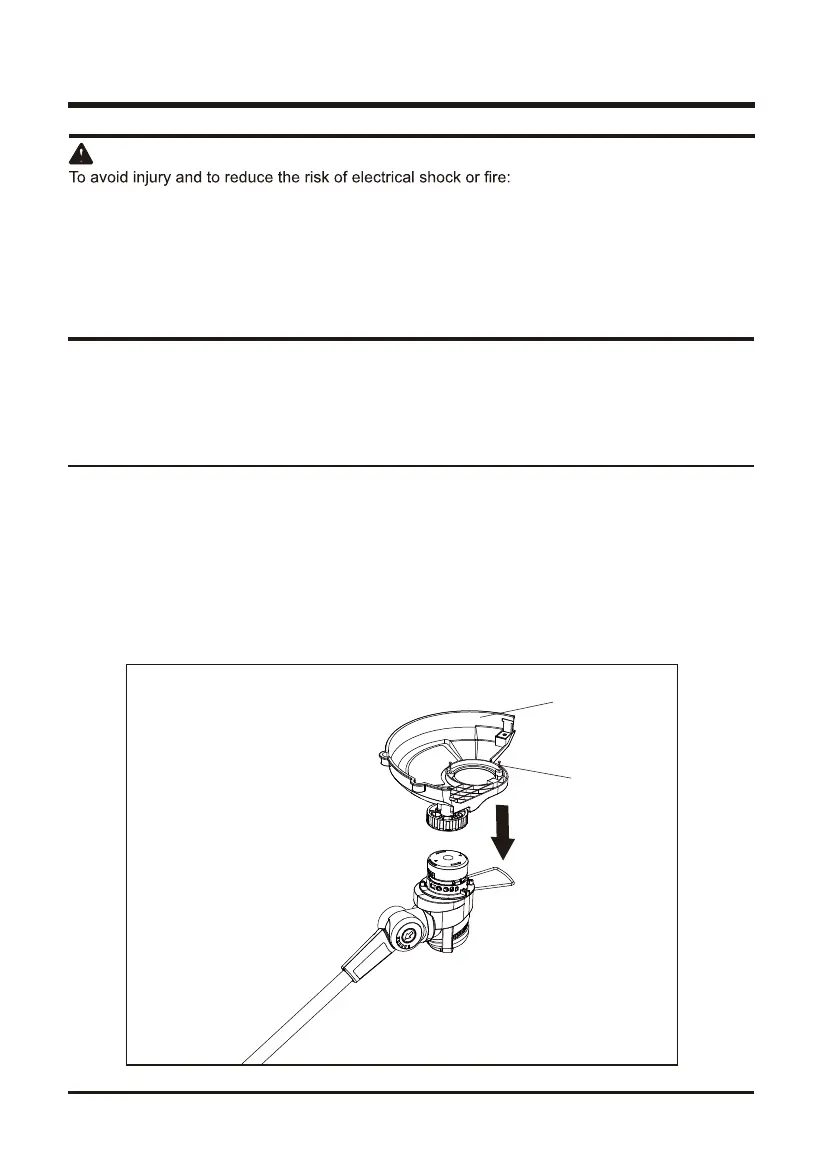

Fig. 2
(1) DOWN
1
2
