Grifco eDrive +2.0 User Manual

20

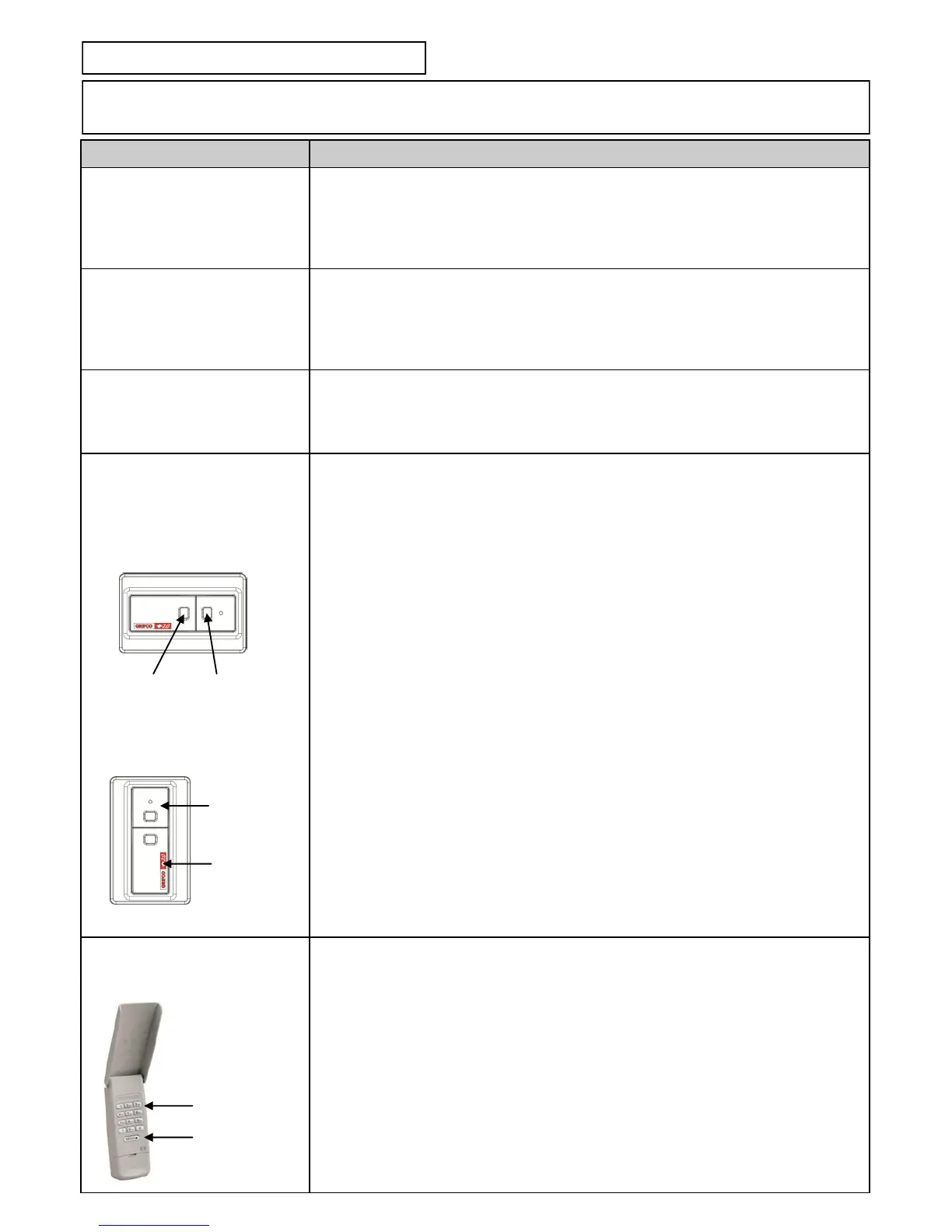

Action Button Sequence
LEARNING A NEW WIRELESS
ACCESSORY FROM THE
CONTROLLER
 Press and hold the SET button, then whilst holding press STOP 5 times
(green status light will light then continue flashing. Indicating learn mode)
 Press the desired WIRELESS ACCESSORY BUTTON to learn
(orange limit light will flash fast after each wireless accessory is successfully learnt)
 Press STOP to exit learn mode
LEARNING A NEW WIRELESS
ACCESSORY FROM THE MCB
 Press the LRN button
(green status light will light then continue flashing, indicating learn mode)
 Press the desired WIRELESS ACCESSORY BUTTON to learn
(orange limit light will flash fast after each wireless accessory is successfully learnt)
 Press LRN button again to exit learn mode
ERASE ALL LEARNED WIRELESS
ACCESSORIES FROM THE
CONTROLLER
 Press and hold the SET button, then whilst holding
 Press the STOP button 4 times, holding on the fourth press for 5 seconds
(green light will flash 5 times, then fast flash to indicate completion)
 Check that previously learned wireless accessories no longer work
LEARN THE E138G WIRELESS WALL
CONTROL FROM THE CONTROLLER
The E138G can be used as a two channel wireless wall control for use on one or two doors,
or as a dedicated up/down wireless wall control. In either application for the door to latch
down an Entrapment Protection Device must be installed. Without Entrapment Protection
in two channel configuration the wall control will function as an open/stop device only and
in dedicated up/down configuration the down button will operate as “hold to close” only.
Two Channel Wireless Wall Control
 Press and hold the SET button, then whilst holding press STOP 5 times
(green status light will light then continue flashing. Indicating learn mode)
 Press the desired WIRELESS ACCESSORY BUTTON to learn door 1
(orange limit light will flash fast after each wireless accessory is successfully learnt)
 Repeat previous step to learn door 2 (if required)
 Press STOP to exit learn mode
Dedicated Up/Down Wireless Wall Control
 Press and hold the SET button, then whilst holding press STOP 5 times
(green status light will light then continue flashing. Indicating learn mode)
 Press the E138G TOP button
(the orange LIMIT ERROR light will flash at each button press)
 Then press the E138G LOWER button
 Press the STOP button on the GRIFCO® controller
(the green light will continue to flash)
 Press the E138G LOWER button again
(the green light will go out indicating exit of learn mode)
LEARN THE E840G WIRELESS
KEYPAD FROM THE CONTROLLER
 Press and hold the SET button on the GRIFCO® controller, then
 While holding the SET button, press the STOP button 5 times
(the green status light will light then continue flashing, indicating learn mode)
 Enter a 4-digit PIN code into the keypad (step 3)
 Press the ENTER button (step 4)
(orange LED flickers on controller)
 To enter additional PIN codes (up to 12) repeat steps 3 & 4
 Press STOP to exit learn mode
 Install the RADIO LOCK button on the MCB to prevent any further wireless accesso-
ries being learnt, or erased without authority
NOTE: The Grifco® Security + 2.0 Wireless Keypad provides :
 Wireless security access
 Wireless hold to close
Keypad
ENTER
button
Top Button
Lower
Button
NOTE: Radio Lock jumper (if fitted) must be removed from the MCB before wireless accessories can be learnt. Ref page 17.
For security reasons the Radio Lock should be refitted after the wireless learn sequence is completed.
AUTO CLOSE & WIRELESS ACCESSORY SET UP
Door 1 Door 2
