19

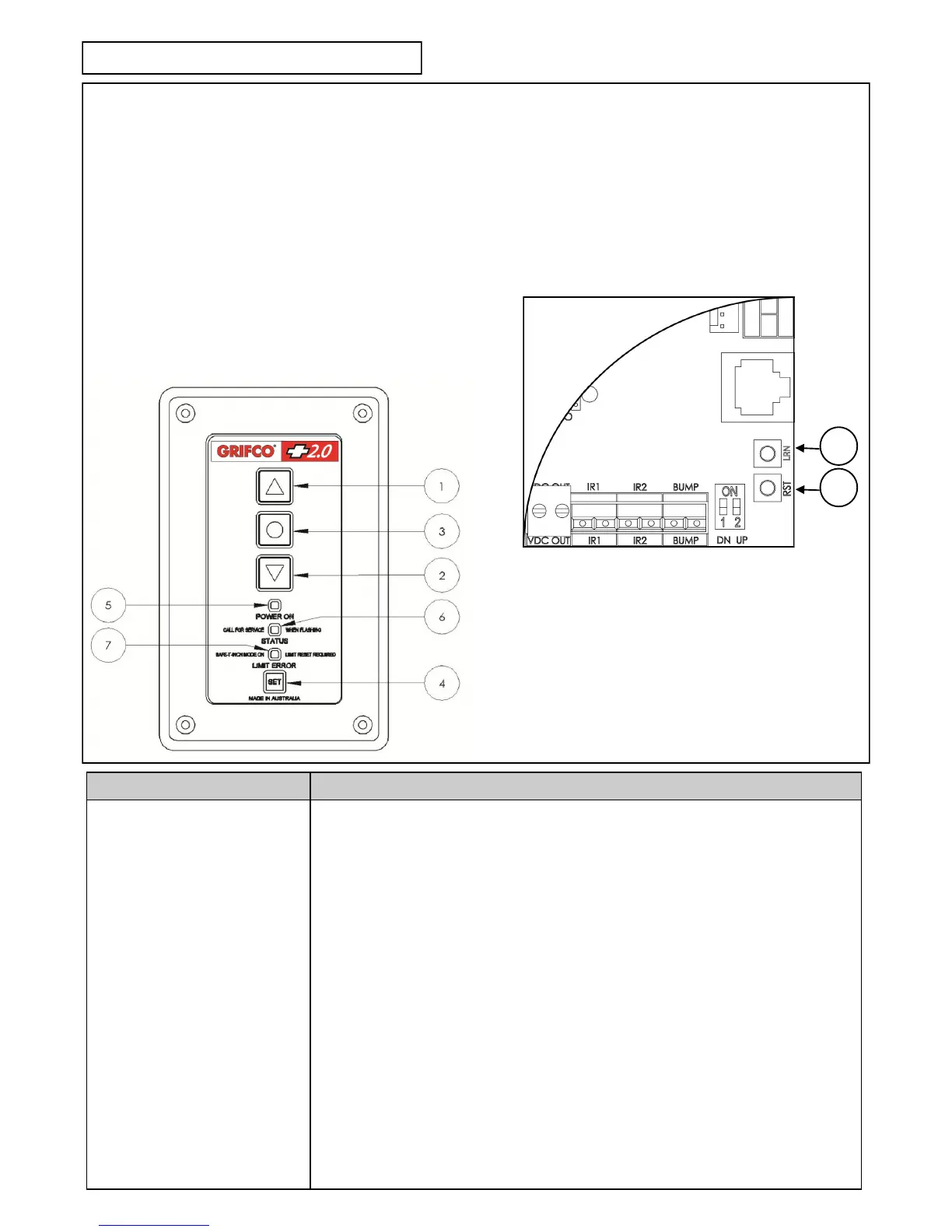

Controller and MCB button reference
1. UP —Moves the door upwards
2. DOWN —Moves the door downwards
3. STOP —Stops the door
4. SET —Used primarily to set limits
5. POWER ON —Shows when the unit is mains powered
6. STATUS —Shows the status of the unit
7. LIMIT ERROR —When lit indicates limits are not set
8. LRN —Enables learning of new remotes
9. RST —Reset board. Hold this button for 10 seconds to
erase and force re-learn of safety Entrapment
Protection Devices.
Controller
Figure 2. Lower Right corner of eDrive +2.0 MCB
AUTO CLOSE & WIRELESS ACCESSORY SET UP
8
9
Action Button Sequence
SET AUTO TIMER TO CLOSE ( no
expansion board fitted) FROM THE
CONTROLLER
Press and hold the SET button, then whilst holding press the DOWN button 3 times
(green status light ON solid)
Press the UP button to increase the auto-timer to close setting in 10-second incre-
ments
Press the DOWN button to decrease the auto-timer to close setting in 10-second
increments
Note: the green light will flash according to the number of 10-second increments
have been set, then goes back to solid ON. For example, a 5-minute auto-close will
be set by increasing the increments until the green light flashes 30 times
Press SET to accept setting and exit learn mode
Note: To cancel the Auto-timer-to close function, enter the learn mode and press
the DOWN button until the number of 10-second increments is ZERO. The green
light will flash repeatedly to indicate the function has been reset, then return to
solid ON
Press STOP to exit
