6 OM-TDB/TDBC
Inspection & Unpacking
CAUTION
SHIPPING STRAPS ARE UNDER TENSION
AND CAN SNAP BACK WHEN CUT. TAKE
CARE TO AVOID PERSONAL INJURY OR
DAMAGE TO THE UNIT BY STAPLES LEFT
IN THE WALLS OF THE CARTON.
The unit will arrive in a heavy shipping carton and will be bolted or banded to a skid.
Immediately upon receipt, inspect the carton carefully for exterior damage.
Carefully cut any polyester straps around the carton and detach the sides of the box
from the skid. Pull the carton up off the unit. Thoroughly inspect the unit for concealed
damage. Report any shipping damage or incorrect shipments to the delivery agent.
Write down the model number, serial number, and installation date, and retain this
information for future reference. Space for these entries is provided at the top of the
Service Log at the back of this manual. Keep this manual on file and available for
operators to use.
When installation is to begin, carefully cut any straps which hold the unit on the skid. Lift
the unit straight up off the skid. Examine packing materials to be sure loose parts are not
discarded with the materials.

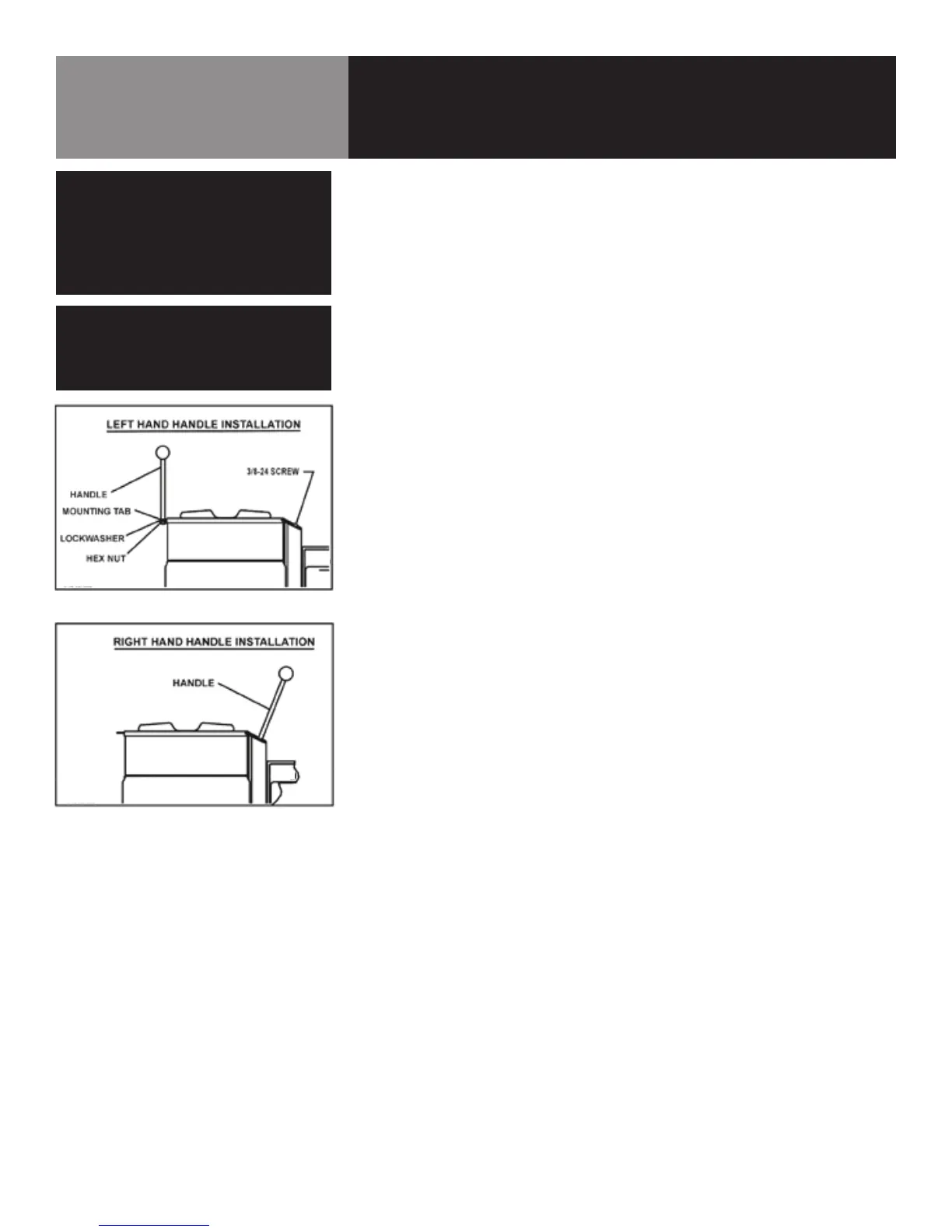

For TDB units, attach the tilt handle (normally shipped inside the kettle) by carefully
threading it into the socket on the trunnion support. Be careful to avoid cross-threading
the fine threads on the trunnion.
CAUTION
THIS UNIT WEIGHS 140 TO 163 LBS (64 TO
74 KG). INSTALLER SHOULD OBTAIN HELP
AS NEEDED TO LIFT THIS WEIGHT SAFELY.
NOTE: After handle installation on the right
hand side, retain the hardware supplied with
the unit for left hand installation.
