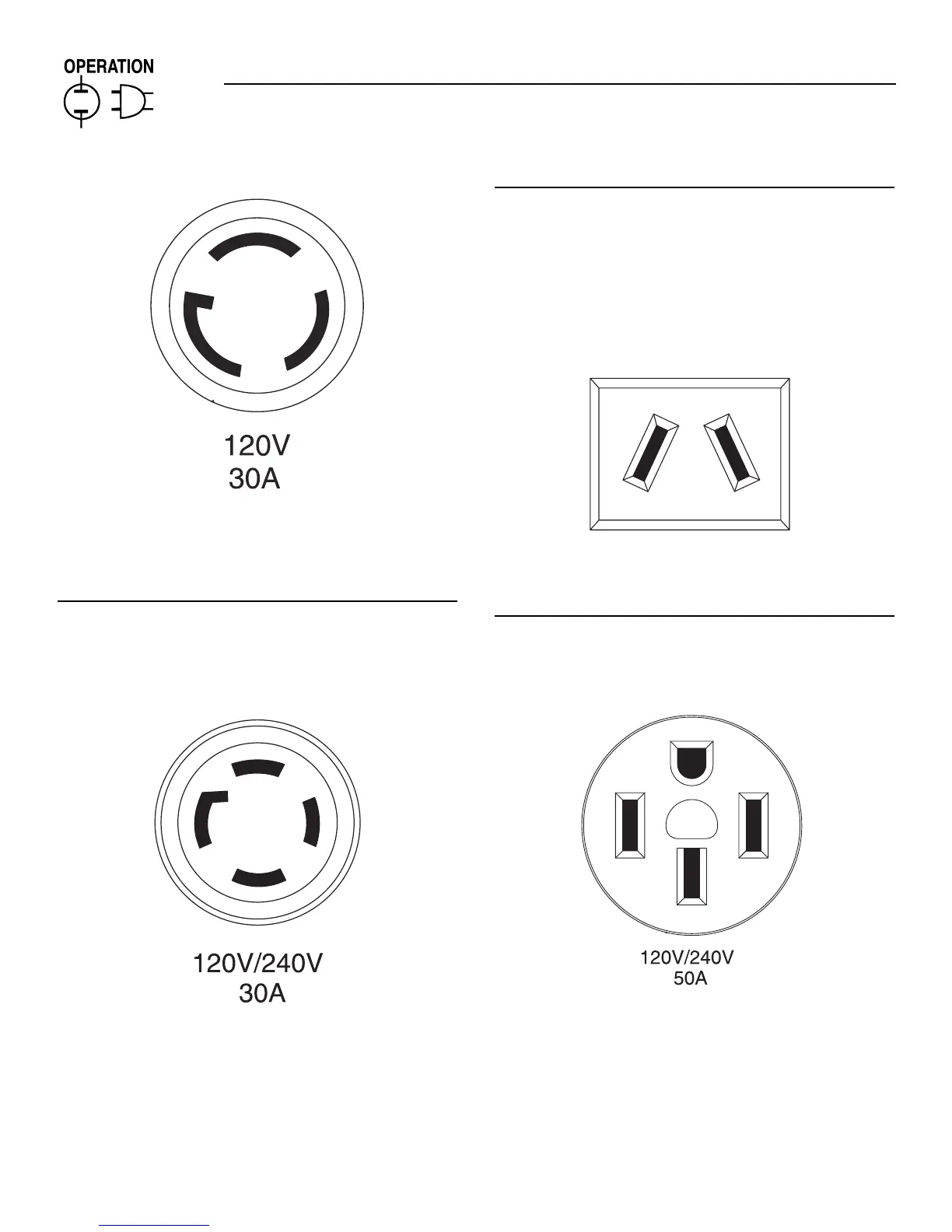

Figure 9 - 120 VAC, 30 Amp Receptacle
Use this receptacle to operate 120 Volt AC, 60 Hz, single phase
loads requiring up to 3600 watts (3.6 kW) of power at 30 Amps.
The outlet is protected by a 30 Amp push-to-reset circuit breaker.
2.2.4 120/240V AC, 30 AMP RECEPTACLE
Use a NEMA L14-30 plug with this receptacle. Connect a suitable
4-wire grounded cord set to the plug and to the desired load. The
cord set should be rated for 250 Volts AC at 30 Amps (or greater).
Figure 10 - 120/240 VAC, 30 Amp Receptacle
Use this receptacle to operate 120 Volt AC, 60 Hz, single phase
loads requiring up to 3600 watts (3.6 kW) of power at 30 Amps
or 240 Volt AC, 60 Hz, single phase loads requiring up to 7200
watts (7.2 kW) of power at 30 Amps. The outlet is protected by
two 30 Amp push-to-reset circuit breakers.
2.2.5 12 VOLT DC, 10 AMP RECEPTACLE
This receptacle allows you to recharge a 12 Volt automotive or
utility style storage battery with the battery charge cables
provided. This receptacle can not recharge 6 Volt batteries and
can not be used to crank an engine having a discharged battery.
See the section "Charging a Battery" (page 13) before attempting
to recharge a battery.
Figure 11 - 12 Volt DC, 10 Amp Receptacle
2.2.6 120/240 VOLT AC, 50 AMP
RECEPTACLE
Use a NEMA 14-50 plug with this receptacle. Connect a 4-wire
cord set rated for 250 Volts AC at 50 Amps to the plug.
Figure 12 - 120/240 VAC, 50 Amp Receptacle
Use this receptacle to operate 120/240 Volt AC, 60 Hz electrical
loads requiring up to 12,000 watts (12.0 kW) of power. This
receptacle is protected by a 50 Amp 2-pole circuit breaker.
8
Section 2 – Operation
