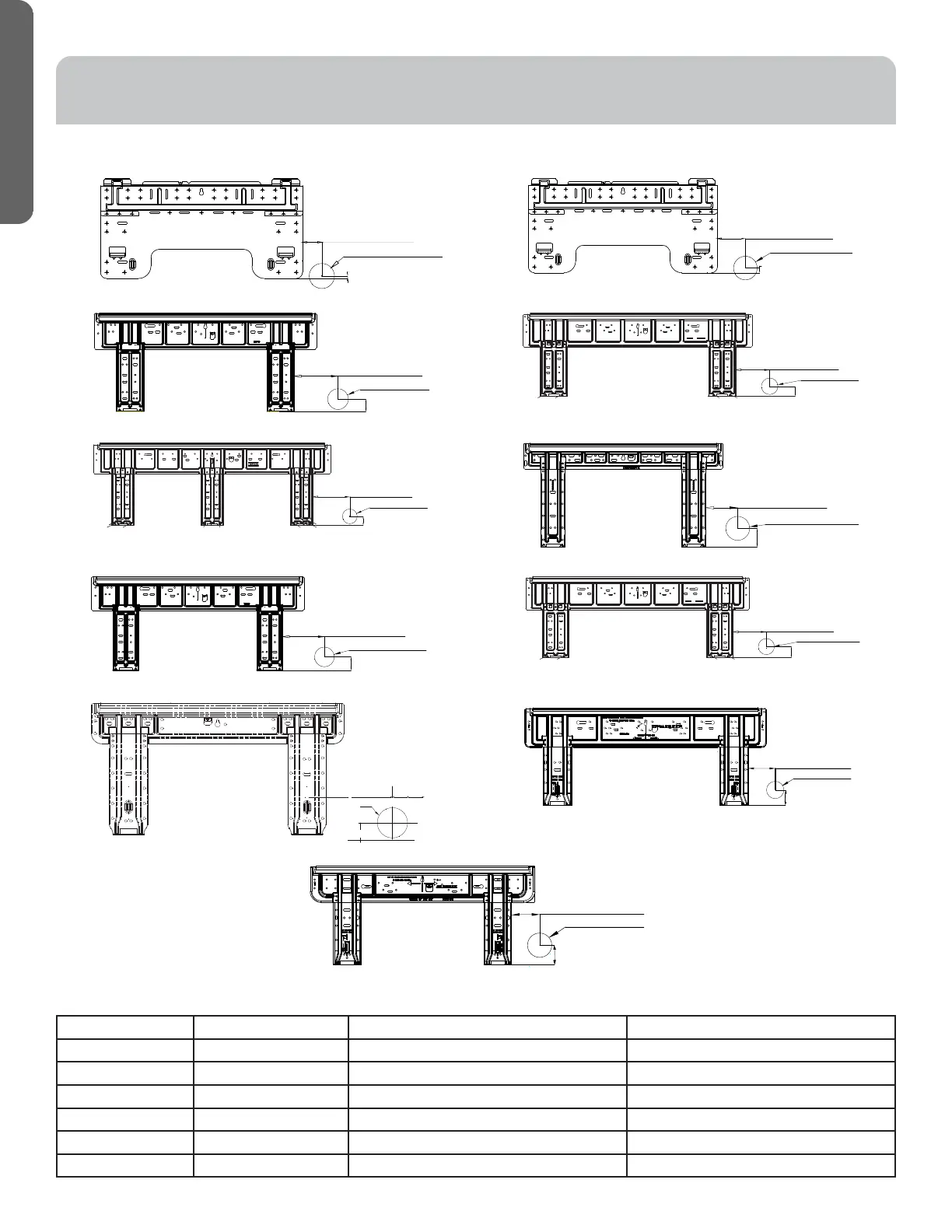

Wall Brackets
Capacity (BTUh) Bracket Style Part Number Factory Reference Number
07K/09K/12K 35N/35T/40N WJ65X23038/WJ65X23240/WJ65X23038 10101275/10103071/10101275
15K/18K 50N/50T/70N WJ65X23251/WJ65X23251/WJ65X23056 10102598/10102598/10102740
24K 70N/70T WJ65X23056/WJ65X23056 10102740/10102740
30K/36K 100N WJ65X22785 10103059
09K/12K 35F/50F WJ65X27875/WJ65X25594 10103620B/10104861
18K 70F WJ65X26113 10104864
35 N
1.84in (46mm)
0.236in (6mm)
Ø 2 1/4in (57mm)
40 N
2.795in (71mm)
0.472in (12mm)
Ø 2 1/4in (57mm)
4.961in (126 mm)
1.417in (36mm)
50 N
Ø 2 1/4in (57mm)
1.417in (36mm)
4.882in (124mm)
Ø
2 1/4in (57mm)
70 N
4.961in (126mm)
1.614in (41mm)
50 T
Ø 2 1/4in (57mm)
1.614in (41mm)
4.882in (124mm)
Ø 2 1/4in (57mm)
70 T
5.906in (150mm)
1.417in (36mm)
Ø 2 1/4in (57mm)
100
N
3.150in (80mm)
1.85in (47mm)
35 T
Ø 2 1/4in (57mm)
4.88 in (124mm)
2 5/32 in (55mm)
Ø 2 3/8 in (60mm)
50 F
4.53 in (115mm)
2 5/32 in (55 mm)
Ø 2 3/8 in (60 mm)
70 F
35F
6.75in (170mm) 2.50in (63mm)
1.625in (40mm)
Line set hole 2.25in (60mm)
INSTALLATION INSTRUCTIONS
