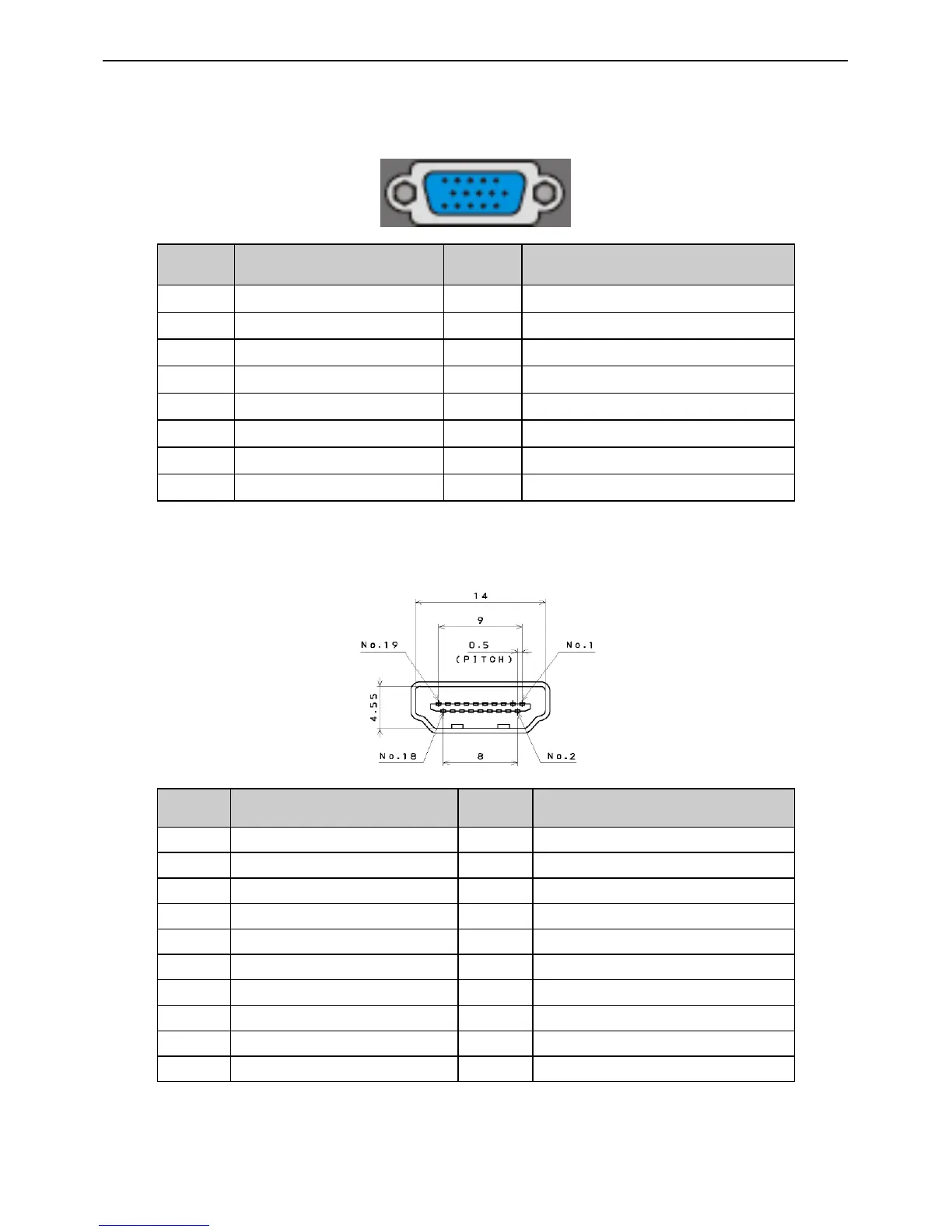

3. Input/Output Specification
3.1 Input Signal Connector
D-SUB
Pin No. Description Pin No. Description
1 Red 9 +5V (supply from PC)
2 Green 10 Sync GND
3 Blue 11 RS-232-TX
4 RS-232-RX 12 Bi-directional data (SDA)
5 GND 13 H-sync
6 Red GND 14
V
-sync (vclk)
7 Green GND 15 Data clock (SCL)
8 Blue GND
HDMI
Pin No. Description Pin No. Description
1
T
MDS Data2+ 11
T
MDS Clock Shield
2
T
MDS Data2 shield 12
T
MDS Clock-
3
T
DMS Data2- 13 NC
4
T
MDS Data1+ 14 NC
5
T
MDS Data1 shield 15 SCL
6
T
MDS Data1- 16 SD
A
7
T
MDS Data0+ 17 DDC/CEC Ground
8
T
MDS Data0 shield 18 +5V Power
9
T
MDS Data0- 19 Hot Plug Detec
t
10
T
MDS Clock+
